A small number of power cords from one specific manufacturer may develop a leakage current condition over an extended period of time (typically >4 years). This leakage current is internal to the female plug of the cord. If excessive enough, this leakage current could lead to a trip condition of the rack PDU or external circuit breaker. In a more severe case, there is the possibility of damage due to a thermal event.
It is very important to have the correct power cables in your data center for Sun / Oracle equipment.
How do I know if I have these power cords?
Only the following power cords that have the C19 connector as shown are suspected:
AC Input Power Cords | ||
---|---|---|
Part Numbers | Description | C19 Connector |
180-2004-01 and -02 | 16A, International, IEC 309 to IEC 320 C19, 4.0M | ![]() |
180-2005-01 and -02 | 20A, Americas, NEMA L6-20P to IEC 320 C19, 4.0M | |
180-2060-01 and -02 | 20A, Watertight IEC 309 to IEC 320 C19, 4.0M | |
180-2061-01 and -02 | 16A, Watertight IEC 309 to IEC 320 C19, 4.0M |
Rack Power Distribution Unit (PDU) to Platform Power Cords | ||
---|---|---|
Part Numbers | Description | C19 Connector |
180-2095-01 | 20A, IEC 320 C19 to IEC 320, 1.5M | ![]() |
180-2096-01* | 20A, IEC 320 C19 to IEC 320, 2.0M | |
180-2097-01* | 20A, IEC 320 C19 to IEC 320, 2.5M | |
180-2099-01* | 20A, IEC 320 C19 to IEC 320, 3.5M |
* Added February 2015
Shown below is the label on the suspected power cords. Only power cords with an Oracle Code of 0001205, week 01 year 04 to week 26 year 11 may be affected.
Figure 1: Label Detail

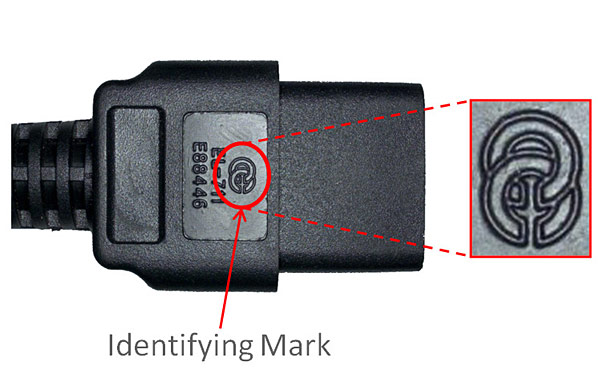

If the label is missing the power cords can be identified by the identifying mark which is located on the female end of the power cord, as shown in the picture below.
Figure 2: Vendor Identifying Mark
If your Sun Rack 900/1000 is configured with 2 vertical rows of up to 6 power strips on either side of the rack you should replace the Rack PDU to Rack Power Strip power cords. If your Sun Rack 900/1000 does not have this configuration you do not need to replace the Rack PDU to Rack Power Strip power cords.
Shown below is a Sun Rack 900/1000 (viewed from the back) configured with 12 power strips on the left side of the rack:

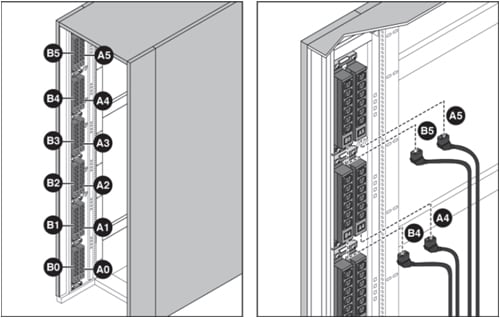

Figure 3: Sun Rack 900/1000 – Left side shown configured with 12 power strips (viewed from the back)
Note: your Sun Rack 900/1000 may have between 2 and 12 power strips configured in any of the locations shown (A0 through A5 and B0 through B5)
For each configured side (as viewed from the back) you should request the corresponding replacement kit:
- if configured with up to 12 power strips on the left side of the rack: request up to two SR900/1000 Left Power Cord Kits
- if configured with up to 12 power strips on the right side of the rack: request up to two SR900/1000 Right Power Cord Kits
- if configured with up to 12 power strips on each side of the rack: request up to two of both kits
