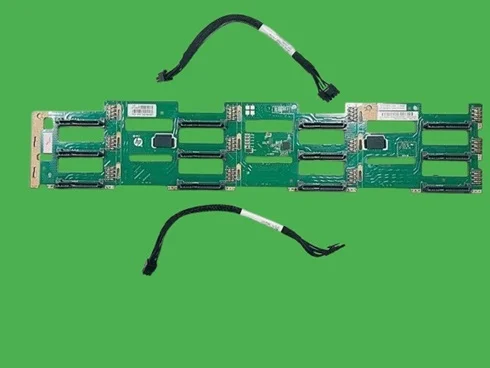

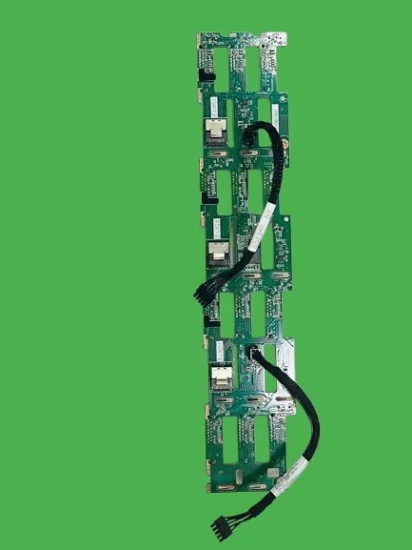

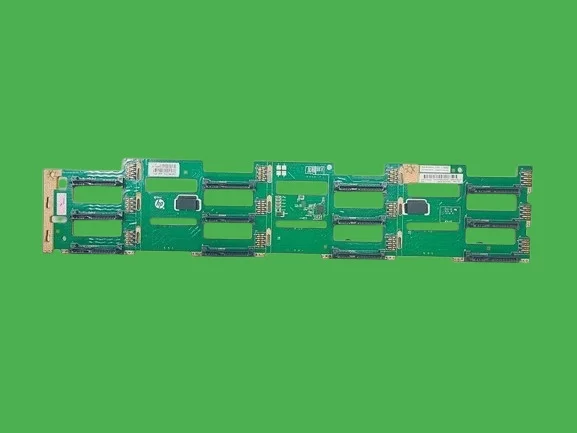

HP ProLiant DL380 G9 12 x 3.5in SAS/SATA Backplane Kit Part #: 777284-001 / 742794-001
- Brand: HP
- Part #: 777284-001
- Alt. Part #: 742794-001
- Specs:-
- :: Kit: 1 x HP ProLiant DL380 G9 12 x 3.5in SAS/SATA Backplane / 1 x Power Cable
- :: Condition: New
- :: Supported Bay Type #: 12 x 3.5in
- :: Compatibility: HP ProLiant DL380 G9 Systems
- :: MPN: 777284-001
- Warranty: 1 (one) year Tekmart Africa warranty
-
INT2204251
**Eligible for immediate collection / shipping upon order confirmation**
This part number, 777284-001 refers to an HP 12-Bay Large Form Factor (LFF) SAS/SATA Backplane Board. It is not a standard option in these servers unless requested at the initial setup and configuration of the server itself at the factory, i.e not an FIO (by default)
The backplane is primarily used in the following HP ProLiant servers: DL380 Gen9 and DL388 Gen9.
You should use the 777284-001 HP 12-Bay LFF SAS/SATA Backplane Board in the following best-use scenarios:
:: Expanding Storage in Compatible HP ProLiant Servers: If you need to increase the internal storage capacity of your HP ProLiant DL380 Gen9 or DL388 Gen9 servers and want to use 3.5-inch (Large Form Factor - LFF) SAS or SATA hard drives. These servers are designed to accommodate this backplane.
:: Adding More LFF Drive Bays: If your compatible HP server currently has fewer than 12 LFF drive bays and you need to add more for increased storage. This backplane provides the necessary connections and mounting points for up to 12 LFF drives.
:: Replacing a Faulty Backplane: If the existing 12-bay LFF backplane in your compatible HP server (which might also have the part number 742794-001) has failed or is causing issues with drive connectivity, the 777284-001 is the correct replacement part.
:: Configuring a Server with LFF Drives: When initially configuring or building one of the supported HP ProLiant Gen9 servers and your storage requirements necessitate the use of 3.5-inch hard drives for capacity or cost-effectiveness.
:: Utilizing SAS and SATA Drives: If your storage strategy involves a mix of SAS drives for performance and SATA drives for capacity, this backplane supports both types of interfaces.
To conclude, the 777284-001 is the go-to component (upgrade option) when you need to connect up to twelve 3.5" SAS or SATA drives in specific HP ProLiant Gen9 servers for storage expansion, replacement, or initial configuration.
