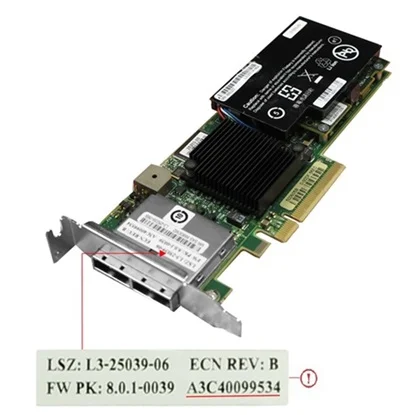

L3-25039-06 Fujitsu LSI MegaRAID 8-Port SAS External RAID Card

Fujitsu / LSI  8-Port SAS External RAID Controller Part #: L3-25039-06, L3-25034-06A, 8880EM2

• Brand: Fujitsu Siemens
• Manufacturer: LSI Logic
• Fujitsu Material Number (Part #): A3C40099534
• LSI Part #(s): L3-25039-06,L3-25034-06A
• Specs:-
• ::Type: Raid controller card
• ** Supplied with either LP or FH bracket-please specify and indicate your preference during order confirmation **
• ::Controller Chip: LSI SAS1078 RAID on Chip (ROC).
• ::Host Interface: x8 lane PCI Express (PCIe).
• ::Connectors: Two Mini-SAS SFF8088 x4 external connectors
• ::Ports: 8 external SAS/SATA ports, using two Mini-SAS SFF8088 x4 connectors.
• ::Data Transfer Rate: 3 Gb/s per port.
• ::I/O Processor/SAS Controller: LSI SAS1078 RAID on Chip (ROC)
• ::Cache Memory: 512MB 667MHz DDR II SDRAM
• ::RAID Support: Supports standard RAID levels including 0, 1, 5, 6, and RAID Spans 10, 50, and 60.
• ::Device Support: Up to 240 devices supported
• ::Battery Backup Unit: LSIiBBU07, an intelligent battery backup module option that directly connects to the adapter
• Features:-
• ::Eight external SAS/SATA ports
• ::Two Mini-SAS x4 connectors (SFF8088)
• ::3Gb/s throughput per port
• ::LSISAS1078 RAID on Chip
• ::500MHz PowerPC
• ::Hardware RAID 5 & 6 engine
• ::x8 PCI Express Host Interface
• ::512MB 667MHz DDRII cache memory
• ::Battery backup module – Direct attach
• ::Connect up to 240 SAS and/or SATA drives
• ::RAID levels 0, 1, 5 and 6
• ::RAID Spans 10, 50 and 60
• ::Auto-resume on array rebuild
• ::Auto-resume array reconstruction
• ::Online Capacity Expansion (OCE)
• ::RAID Level Migration (RLM)
• ::Import foreign arrays – MegaRAID Entry, Value, Feature and IR supported
• ::Create 64 logical volumes
• ::Up to 64TB LUN support
• ::Audible alarm circuit
• Compatibility:
• Select server models
• ::Fujitsu PRIMERGY RX300 S5 servers
• Condition: New; open box
• Warranty: 1 (one) year Tekmart Africa warranty

•

INT201025KIT2025

**Eligible for immediate collection / shipping  upon order confirmation*

The part identifier: L3-25039-06 is a Fujitsu-assigned part number for a specific RAID controller card used in enterprise server systems.

This part number refers to the Fujitsu LSI MegaRAID 8880EM2 8-Port SAS External RAID Controller.

These cards are designed to manage multiple Serial Attached SCSI (SAS) and/or SATA hard drives in a server or external storage enclosure.

Generally,the MegaRAID SAS 8880EM2 supports all key RAID levels including RAID 6 and 60 for increased fault tolerance.

RAID 6 tolerates two simultaneous drive failures, and thus the ability to manage unrecoverable media errors during re-builds.

This is particularly useful when using a lot of high-capacity SATA disk drives.

They also have Intelligent Battery Backup Support

The MegaRAID LSIiBBU07 is a battery backup module that protects the integrity of the cached data on a MegaRAID controller in the event of a complete power or server failure.

This add-on module, which connects directly to the adapter, has the added functionality to automatically charge the battery pack and communicate with the host system the battery status, such as voltage, temperature, and capacity.
