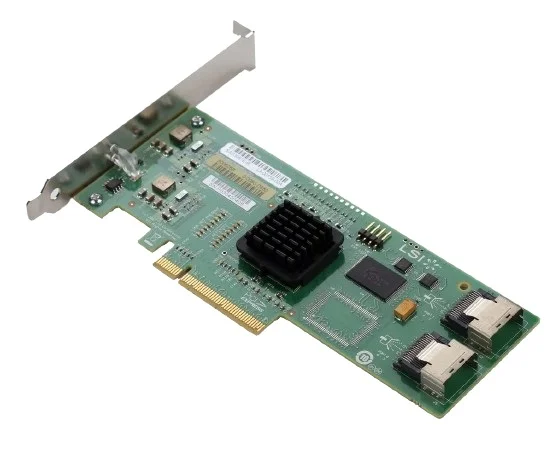

LSI Internal SATA/SAS SAS3081E-R 3Gb/s PCI-Express 1.1 RAID Controller Card Part #: SAS3081E-R, L3-00159-02D,0-0363-3A30,LSI00182
- Brand: LSI
- Part #: L3-00159-02D
- Model: SAS3081E-R
- Alt. Part Identifiers: 0-0363-3A30,LSI00182
- Specs:-
- :: Type: SATA / SAS Controller cards
- :: Description: LSI 8- port Internal SATA/SAS 3Gb/s RAID Controller Card
- :: Internal Port(s): 36-Pin Dual Mini SAS
- :: Internal Connectors: 2 x miniSAS (Two internal miniSAS connectors)
- :: Interface: PCI Express
- :: Host Bus: PCIe x8
- :: Transfer Rate: 3Gb/s per port
- :: RAID Levels Supported: RAID 0/1/1E/10E
- Condition: New
- Warranty: 1 (one) year Tekmart Africa warranty
-
INT230326DOOS2026
**Eligible for immediate collection / shipping upon order confirmation*
Key points to note on these SAS3081E-R LSI Cards:-
The LSISAS3081E-R doubles the performance of today’s dual channel Ultra320 SCSI HBAs by connecting an 8-lane 2.5Gb/s PCI Express bus with eight 3Gb/s SAS/SATA ports. It also offers leading SAS and SATA RAID and non-RAID data off-load for medium to high-capacity internal server storage applications.
They are is ideal for today’s data centers and leverages existing SCSI infrastructure for investment protection and ease of migration. The serial interface allows for point-to-point connections offering higher performance, increased aggregate bandwidth, higher availability with dual-ported drives, and enhanced reliability when compared to parallel SCSI.
The LSI SAS HBA will support 1.5 and 3Gb/s SAS and SATA hard disk drives. The SAS interface provides universal interconnect with Serial ATA, while still offering logical SCSI compatibility along with the reliability, performance and manageability available with SAS drives.
Common electrical and physical connections allow for the application to dictate the technology of choice for disk drives.
These cards feature the below.
:: Two internal miniSAS connectors
:: Ultimate SAS/SATA flexibility from 8 internal ports
:: Connects to both SAS and SATA Hard Disks Drives
:: Fusion-MPT architecture Integrated RAID 0, 1, 1E, and 10E
:: Allows up to 244 total end-point devices
:: Supports all major Operating Systems
:: Delivers 2400 MB/s to enclosures, 4800 MB/s full duplex
:: Low-Profiles MD2 form factor PCI card
