VNX DPE / DAE SAS cabling

Tekmart Data Center Team/ June 11, 2021/ Best practices for data center operations, Data center facilities, Enterprise data storage strategies, Enterprise infrastructure management, How do i...?, How-Tos and Other Useful Tips and Tricks, Tekmart Enterprise Hardware Tips

Reading Time-approximately: < 1 minute

EMC cable requirement and configuration for VNX Disk Processor Enclosure (DPE).

By Tekmart Enterprise Support Team

A quick note to clarify SAS cabling between EMC VNX and extra enclosures or DAE’s as they are called.

When setting up a VNX with only the base DPE enclosure, there’s no need for cabling.

When adding the first and the second enclosure, you need a special kind of SAS cable, called the “mini-SAS to mini-SAS HD cables”.

sas cables for the first two disk array enclosures (DAEs)
mini-SAS hd cable sas connection to the ports

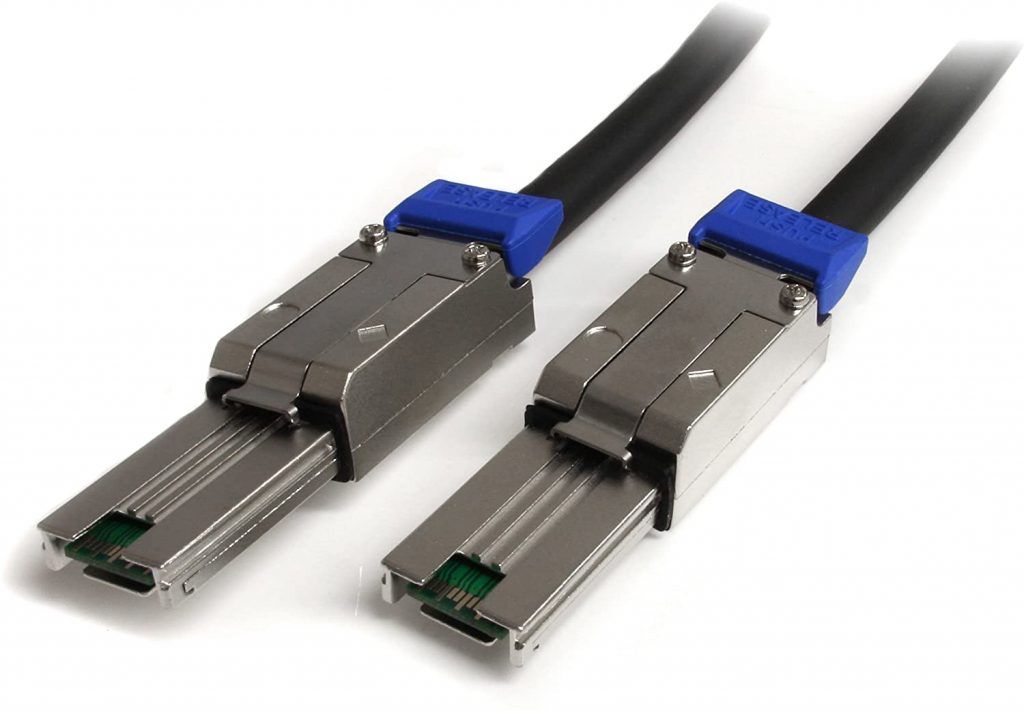

When adding a third enclosure or more, you need a “mini-SAS to mini-SAS cable”.

mini-SAS to mini-SAS cable
