Dell M1000E Rev 1.1 Midplane Board Part #: 0C550R / 0C550R / YN2K7 / 0YN2K7
- Brand: Dell
- Part #: C550R
- Alt. Part #: 0C550R / YN2K7 / 0YN2K7
- Specs:-
- :: Type: Blade Chassis Options
- :: Condition: Refurbished
- :: Compatibility: Dell M1000E System
- :: MPN: C550R
- Warranty: 1 (one) year Tekmart Africa warranty
-
Key popints to note on these C550R Dell M1000E Rev 1.1 Midplane Boards:-
This particular Midplane board, with Dell Part # : 0C550R , allows you to utilize 10GB Technology in your M1000E chassis enclosure.
Though hidden from view in an actively running system, the midplane is the focal point for all connectivity within the M1000e modular system. The midplane is a large printed circuit board providing power distribution, fabric connectivity, and system management infrastructure. Additionally it allows airflow paths for the front-to-back cooling system through ventilation holes.
As is requisite for fault-tolerant systems, the M1000e midplane is completely passive, with no hidden stacking midplanes or interposers with active components. I/O fabrics and system management are fully redundant from each hot-pluggable item. The system management Ethernet fabric is fully redundant when two CMCs are installed, with two point-to-point connections from each server module.
The system is designed for receptacles on all midplane connectors and pins on all pluggable components, so any potential for bent pins is limited to the pluggable field replaceable unit, not to the system. This contributes to the high reliability and uptime of the M1000e modular system.
The midplane is physically attached to the enclosure front structural element. It is aligned by guide-pins and edges in all three axes. This provides close tolerance alignment between the server modules and their midplane connections.

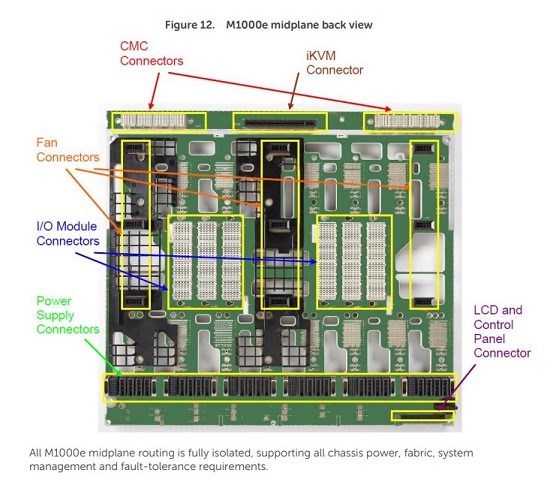

All M1000e midplane routing is fully isolated, supporting all chassis power, fabric, system management and fault-tolerance requirements.
