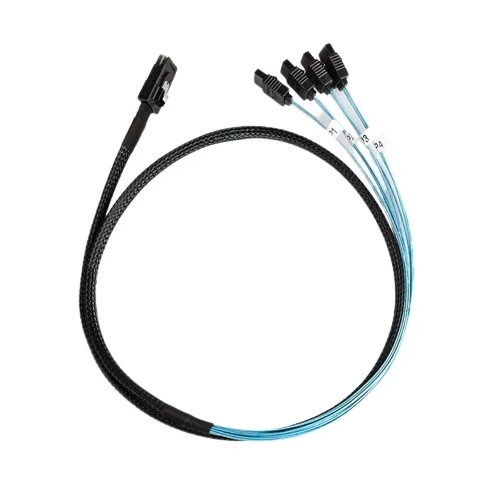

Serial Attached SCSI SAS Cable - SFF-8087 to 4x Latching SATA

Serial Attached SCSI SAS Cable SFF-8087 to 4x Latching SATA (Internal Mini SAS 36 Pin SFF-8087 to 4 SATA 7 Pin Forward Breakout Cable).

This cable Connects a SATA/SAS Controller to 4 SATA drives

• Brand: StarTech
• Part #: SAS8087S450
• Specs:-
  •   ::  Number of Conductors: 2
  •   ::  Type and Rate: SATA III (6 Gbps)
  • Connectors:-
    •   ::  Connector A: 1 - SFF-8087 (36 Pin, Internal Mini-SAS) Latching Plug
    •   ::  Connector B : 4 - SATA (7 pin, Data) Latching Receptacle
  •   ::  Cable Length: 0.5m
  •   ::  Connector Style: Latching
• Condition: New
• Warranty: 1 (one) year Tekmart warranty
•

Key points to note:-

• 1x SFF-8087 connector
• 4x latching SATA connectors
• Supports up to 6Gbps per channel
• Multi-lane design
• The SAS8087S450 SFF-8087 to 4x SATA SAS cable features one 36-pin plug (SFF-8087), which fans out to four SATA 7-pin receptacles, providing a reliable solution for connecting up to four SATA HDDs to a SAS controller or backplane.
• Designed and constructed for long-lasting dependability and reliability, the 50cm  Mini-SAS to 4x SATA cable is backed by a warranty.

Typical application of these cables:-

::  These cables connect up to four Serial ATA hard drives to a Serial-Attached SCSI (SAS) controller or backplane.  Internal Mini SAS 36 pin data cable connects a RAID or PCIe controller with an SFF 8087 port to 4 discrete SATA drives; Mini SAS to SATA adapter provides reliable internal connectivity between a Serial attached SCSI controller card in a computer system and direct attached storage devices with a SATA connector.

::  You can mprove the capacity of your RAID configuration with this SATA multi lane cable; Two cables can connect up to 8 SATA drives to span RAID controller arrays and share performance across two PCIe 2.0 x 8 lanes with compatible host bus adapters; Supports up to 6Gbs data transfer rate per drive
