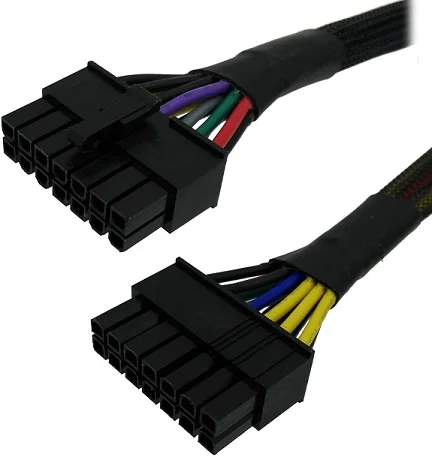

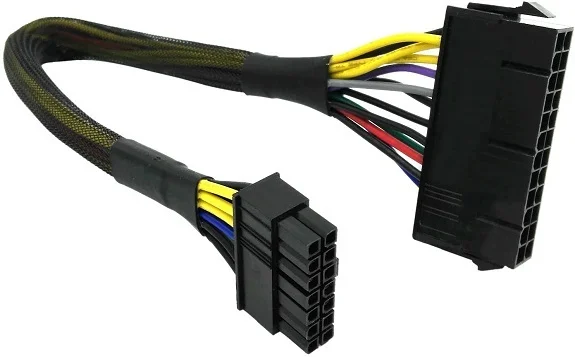

24-Pin to 14-Pin ATX PSU Main Power Adapter Braided Sleeved Cable for IBM Lenovo PCs and Servers 30cm in length
- Brand: COMeap
- Part #: Generic
- Specs:-
- :: Type: Internal Server Connect Cables
- :: Application: 24-Pin end to plug into the standard 24 pin ATX Power Supply, 14-Pin end to plug into the IBM/Lenovo motherboard.

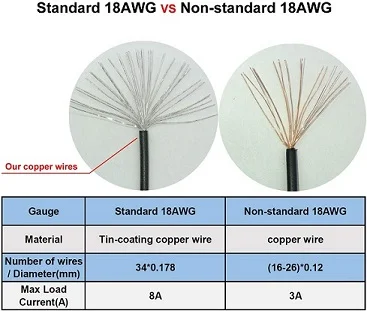

- :: Gauge: 1007-18AWG (standard tin-coating copper wire)
- :: Cable Length: 12inches(30cm)
- Connectors:
- :: 1 x 24 pin port,
- :: 1 x 14 pin port
- :: Form Factor: ATX
- :: Maximum Power Supported: 1000W
- Features:
- :: Allowing you to convert standard 24 pin ATX power supply to 14 pin power supply.
- Compatibility:
- ThinkCentres:
- :: M92P
- :: M93P
- :: M73
- :: M83
- :: M79
- :: K450e
- :: H500
- :: H530
- :: H530s
- :: H535
- :: H30
- :: H50
- :: E32
- :: X315
- :: Erazer X510
- :: Q77
- :: B75
- :: A75
- :: Q75
- Server Models:
- :: ThinkServer TS140
- :: ThinkServer TS440
- :: and others with 14 pin power connector
- Condition: New
- Warranty: 1 (one) year Tekmart warranty
-
Key points to note on these 24-Pin to 14-Pin Power Adapter IBM Power Connector Cables:-
This 24 Pin to 14 Pin ATX power cable is to to convert standard 24 pin ATX power supply to 14 pin power supply. It offers a cost-effective solution for replacing the factory power supplies in Lenovo PCs and Servers.
Technical Caveat:
These cables were only designed and validated for Lenovo motherboards with 14-pin port as listed. If you connect it with other incompatible motherboards, it MIGHT burn or damage the motherboard and we won’t take any responsibility for wrongly using or installing.
Please carefully check the compatible types or contact us if unsure.
