Dell Broadcom 57416 Dual Port PCI-E 10GbE Ethernet NIC Network Card DPN: NC5VD, 0NC5VD
- Brand: Dell
- Part #: 0NC5VD,NC5VD
- Specs:-
- ::Type : Network Adapter
- ::Form Factor : Plug-in Card ( Low Profile)
- ::Interface (bus) Type : PCI Express (PCI Express (PCIe) 3.0 x8)
- ::Ports: 10Gb Ethernet x 2
- Chipset: Broadcom BCM57416
- ::Connectivity Technology: Wired
- ::Cabling Type: Ethernet 10Base-T
- ::Data Link Protocol: 10 Gigabit Ethernet
- ::Data Transfer Rate: 10 Gbps
- ::Interfaces: 2 x 10GBase-T - RJ-45 (Uses standard copper Ethernet cables, specifically 10GBase-T)
- Compatibility:-
- ::Dell EMC PowerEdge C6420 /Fc640 /R440 /R540 /R640 /R6415 /R740 /R740xd /R7415 /R7425
- Condition: New
- Warranty: 1 (one) year Tekmart Africa warranty
-
INT040325ASTOS2025
**Eligible for immediate collection / shipping upon order confirmation*
This SKU:0NC5VD (or NC5VD) is Dell part number and is a high-speed network adapter.

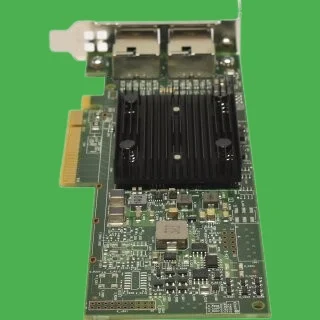

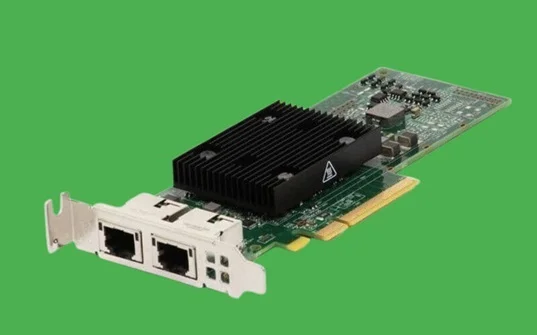

It is a Dell Broadcom 57416 Dual Port 10 Gigabit Ethernet (10GbE) Network Interface Card (NIC).
The RJ-45 interface is advantageous because it will allow you to use familiar copper cabling (Category 6a or higher) for 10Gb connections over a decent distance.
These NICs are used to provide high-speed network connectivity for Dell PowerEdge servers, enabling faster data transfer and better performance for demanding tasks such as:
- ::Virtualization: Providing dedicated, high-throughput network links for multiple virtual machines.
- ::High-Performance Computing (HPC): Handling large volumes of inter-server communication.
- ::iSCSI/NFS Storage: Creating a dedicated 10Gb network for connecting the server to network-attached storage (NAS) or storage area networks (SANs).
- ::Data Backup and Recovery: Accelerating the transfer of large backup files.
-
Lastly, is the low-profile card version of this same card.This means it comes with the shorter bracket designed to fit into 1U (one rack unit) servers and other compact systems where space is limited.
It can typically be used in full-height slots by swapping the bracket, though it is primarily designed as a low-profile adapter.
