IBM EJ08 4U CEC PCIe Optical Cable Adapter Part #: 00TK735 / 041T9901 / 41T9901 / 01EL579 / 00LU880
- Brand: IBM
- Part #: 00TK735
- Alt. Part #: 041T9901 / 41T9901 / 01EL579 / 00LU880
- Specs:-
- :: I/O Bus Architecture: PCIe3 x16
- :: Form factor: Full-height / Half-length
- :: Voltage: 12 V
- :: Condition: Refurbished
- :: Compatibility: Select Enterprise Systems*
- :: MPN: 00TK735
- Warranty: 1 (one) year Tekmart Africa Warranty
-
Key points to note on these 00TK735 IBM EJ08 4U CEC PCIe Optical Cable Adapters:-
FC EJ08 is a full-height, half-length PCIe3 cable adapter. The adapter provides two optical ports for the attachment of two active optical cables (AOC). One adapter supports the attachment of one PCIe3 6-slot fanout module in a EMX0 PCIe Gen3 I/O expansion drawer.

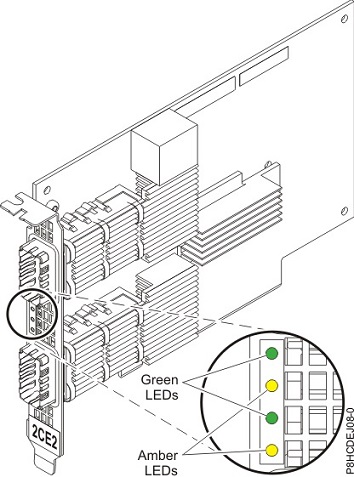

Figure 1. IBM PCIe3 cable adapter FC EJ08; FRUs we usually keep in stock at Tekmart Africa.
Note: The LEDs that are shown in Figure 1 above indicate the following states:-
- :: The green LED indicates link status. If the green LED is on, at least one PCIe link is in the trained state.
- :: The amber LED indicates FRU identify. If the amber LED is on, it will blink at 2 Hz, and indicates that the adapter is in the identify function state.
