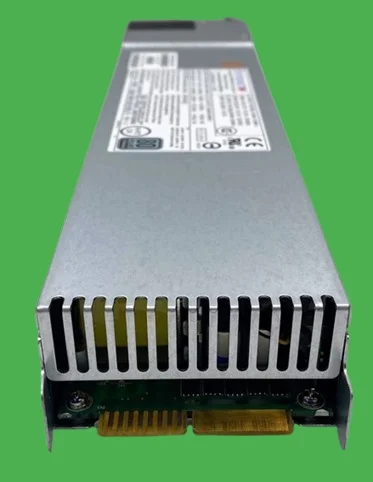

Supermicro 1U 1200W PSU 80 Plus Titanium Power Supply Part #: PWS-1K23A-1R
- Brand: Supermicro
- Part #: PWS-1K23A-1R
- Specs:-
- ::Type: Supermicro REplacement Power Module
- ::Form Factor: 1U
- ::Cooling: 1 Fan
- ::Efficiency / Certification: 80 Plus Titanium
- ::Redundancy: Hot-swappable, N+1 redundant
- AC Input:-
- ::100-127V / 15-12a, 50-60hz (1000W mode)
- ::200-240V / 8.5-7a, 50-60hz (1200W mode)
- DC Output:-
- ::+12V - 83a (1000W mode)
- ::+12V - 100a (1200W mode)
- ::+5VSB - 4a
- ::Voltage Compatibility: 100-127V, 200-240V
- ::Maximum Input Current: 15-12A, 8.5-7A
- ::Connectors: Goldfinger
- ::Maximum Power: 1200 W
- ::Maximum Wattage: 1200 W
- Validated Systems:-
- ::AS-2113S-WN24RT, AS-2113S-WTRT
- ::SSG-927R-E2CJB, SSG-937R-E2CJB, SSG-947R-E2CJB
- ::SSG-2028R-DE2CR24L, SSG-2029P-ACR24H, SSG-2029P-ACR24L, SSG-2029P-E1CR24H, SSG-2029P-E1CR24L
- ::SSG-5049P-E1CTR36L
- ::SSG-6029P-E1CR12H, SSG-6029P-E1CR12L, SSG-6029P-E1CR12T
- ::SSG-6038R-DE2CR16L
- ::SSG-6039P-E1CR16H, SSG-6039P-E1CR16L
- ::SSG-6049P-
- Validated Chassis:-
- ::CSE-213AC-R1K23LPB, CSE-213AC8-R1K23WB
- ::CSE-216BAC4-R1K23LPB, CSE-216BE1C4-R1K23LPB
- ::CSE-417BE1C-R1K23JBOD, CSE-417BE2C-R1K23JBOD
- ::CSE-826BAC4-R1K23LPB, CSE-826BAC4-R1K23WB, CSE-826BE1C4-R1K23LPB
- ::CSE-835BTQC-R1K23B, CSE-836BE1C-R1K23B, CSE-836BHE1C-R1K23B
- ::CSE-846BE1C-R1K23B, CSE-846BE2C-R1K23B, CSE-846XA-R1K23B
- Condition: New
- Warranty: 1 (one) year Tekmart Africa warranty
-
INT2307251DM2025
**Eligible for immediate collection / shipping upon order confirmation*
The SKU: PWS-1K23A-1R refers to a Supermicro 1200W (1000W at 100-127Vac) 1U redundant power supply with an 80 Plus Titanium certification-meaning it's highly efficient (up to 96%).
Each power supply is designed for server applications and features a card edge connector for direct connection with the backplane of compatible Supermicro 1U systems.
They can also potentially be used as a replacement for certain other Supermicro PSUs like the PWS-1K03A-1R and PWS-920P-SQ, especially in chassis with larger power distribution boards (PDBs) that are downwards compatible with the 19-pair gold finger connector.
