IBM 1.92TB 12Gb SAS RI (Read Intensive) SSD for Storwize V5000 / V7000 Part #: 01EJ782 / 01EJ784 / 01EJ598
- Brand: IBM
- Part #: 01EJ782
- Alt. Part #: 01EJ784 / 01EJ598
- Specs:-
- :: Capacity: 1.92TB
- :: Interface Standard: SAS / SAS 2
- :: Data Transfer Rate: 12Gb/s
- :: Form Factor: 2.5in
- :: Condition: New
- :: Compatibility: IBM Storwize V5000 G2 (...as shown below in the key points) / V7000 Systems
- :: MPN: 01EJ782
- Warranty: 1 (one) year Tekmart Africa warranty
-
Key points to note on the v5000 systems where these 01EJ598 IBM 1.92TB 12Gb SAS RI (Read Intensive) SSD:-
Increase your storage capacity with these OEM IBM storage SSDs on your StorWize v5000 and v7000 units. These SSDs offer spacious 1.92TB storage for all your business files and applications. These are Customer replaceable field units.
IBM Storwize V5000 for Lenovo (Machine Type 6194) is a highly flexible, easy to use virtualized storage system that enables midsize organizations to meet the challenges of rapid data growth and limited IT budgets. As an intermediate Storwize family offering, Storwize V5000 enables organizations to consolidate and provide new capabilities to their infrastructures.
Storwize V5000 control enclosure models include two node canisters, each with 8 GB cache for a system total of 16 GB cache. Standard is 6 Gb SAS and 1 Gb iSCSI connectivity, with an option for 8 Gb Fibre Channel (FC) or 10 iSCSI or Fibre Channel over Ethernet (FCoE) connectivity.
The LFF enclosure models support up to 12 3.5-inch drives, while the small form factor (SFF) enclosure models support up to 24 2.5-inch drives.
High-performance disk drives, high-capacity nearline disk drives, and flash (solid-state drives [SSDs]) are supported. Drives of the same form factor can be intermixed within an enclosure, which provides the flexibility to address performance and capacity needs within a single enclosure. You can also intermix large form factor (LFF) and SFF expansion enclosures behind an LFF or SFF control enclosure.
A Storwize V5000 system scales up to 480 drives with the attachment of up to 19 Storwize V5000 expansion enclosures. All Storwize V5000 functional capabilities are provided through IBM Storwize Family Software for Storwize V5000. The Storwize V5000 SFF enclosure is shown in the following figure.

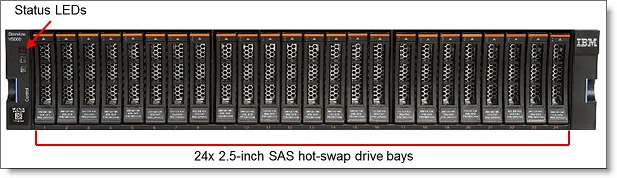

Figure 1. Storwize V5000 SFF enclosure-front view

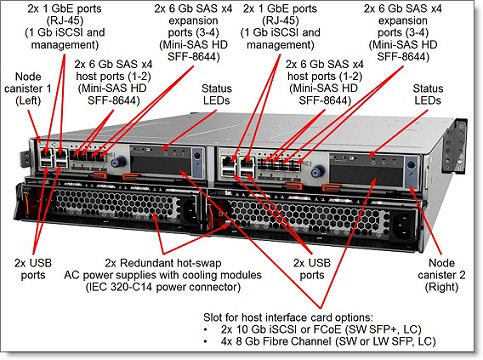

Figure 2. Storwize V5000 SFF enclosure-rear view
A single Storwize V5000 system can be scaled up to 1.92 PB of raw storage capacity. With external virtualization, the system can manage up to 32 PB in total.
Storwize V5000 offers hybrid block storage connectivity with support for 6 Gb SAS, 1 Gb iSCSI, and 10 Gb iSCSI or FCoE or 8 Gb FC at the same time.
Storwize V5000 systems can be clustered to help deliver greater performance, bandwidth, and scalability. A Storwize V5000 clustered system can contain two Storwize V5000 systems and up to 960 drives.
Storwize V5000 for Lenovo includes three or five years of Software Subscription and Support (model dependent).
Key features
The Storwize V5000 storage system provides the following features:
- :: Scalable enterprise storage with a dual active/active intelligent array node canisters with 8 GB cache each for high availability and performance.
- :: Flexible host connectivity to match diverse client needs with support for a mix of 6 Gb SAS, 1 Gb iSCSI, and 10 Gb iSCSI or FCoE or 8 Gb FC connectivity at the same time.
- :: A 6 Gb SAS drive-side connectivity with support for 12x 3.5-inch LFF or 24x 2.5-inch SFF drives in the control enclosure, which are scalable up to 240 LFF drives per system with the attachment of Storwize V5000 LFF Expansion Enclosure (12x LFF drives each) or up to 480 SFF drives per system with the attachment of Storwize V5000 SFF Expansion Enclosure (24x SFF drives each) to satisfy growing needs for storage capacity and performance.
- :: With two-way system clustering, the size of the system can be doubled to a maximum of 960 drives.
- :: Further scalability can be achieved with virtualization of external storage. When Storwize V5000 virtualizes an external disk system, capacity in the external system inherits the functional richness and ease of use of Storwize V5000.
- :: Flexibility in storing data on high-performance SAS SSDs, performance-optimized enterprise SAS hard disk drives (HDDs), or capacity-optimized enterprise NL SAS HDDs; mixing and matching drive types and form factors within a single system to perfectly meet performance and capacity requirements for various workloads.
- :: Storwize V5000 combines various IBM technologies, including thin provisioning, automated tiering, external and internal storage virtualization, clustering, replication and multiprotocol support.
- :: VMware vSphere Virtual Volumes (VVol) integration brings advanced storage management functions to the virtual machine level for finer VM storage service level control and policy-driven automation.
- :: Intuitive, web-based next-generation GUI for easy system set up and management.
- :: Extensive interoperability with support for most major server platforms and operating systems.
