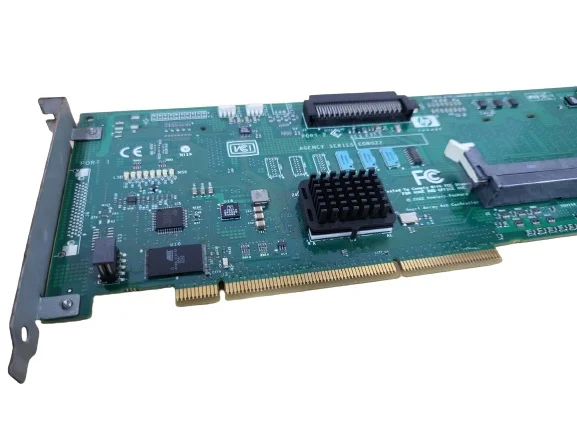

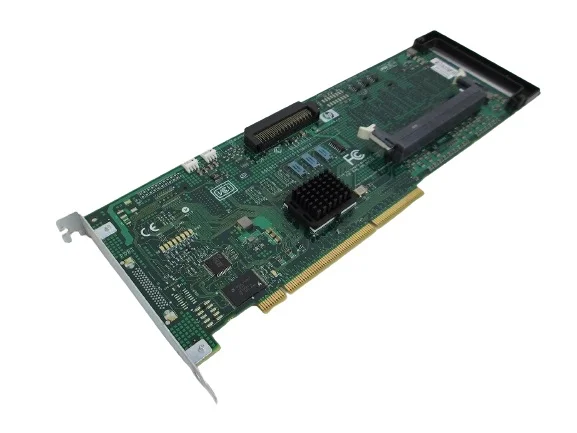

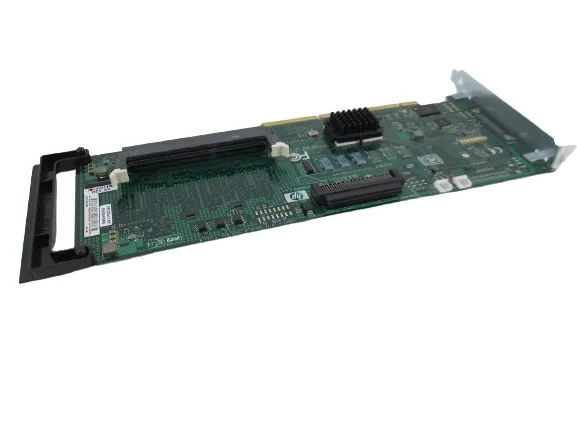

305414-001 HP Smart Array 641 U320 SCSI Controller

HP Smart Array 641 128MB U320 Single Channel 64bit 133mhz Pci-x Ultra320 Scsi Raid Controller Card HPN: 305414-001,011818-002,012591-000,291966-B21,011818-001

• Brand: HP
• Part #(s):-
• ::  Option Part #: 291966-B21
• ::  Spare Part #: 305414-001
• ::  Assembly Part #: 011818-001
• ::  Alt. Part #: 012591-000, 012592-001,011818-002
• Specs:
•   ::  Controller Type: Scsi Controller
•   ::  Description: HP Smart Array 641 Single-Channel SCSI RAID PCI Controller Card
•   ::  Enclosure: Internal
•   ::  Scsi Interface: Ultra320 Scsi
•   ::  Bus Type: Pci-x
•   ::  Data Transfer Rate: 320mb/sec
•   ::  Supported Raid Level: Raid 0, Raid 1, Raid 0+1, Raid 5
•   ::  Buffer Size: 64mb
•   ::  External Connectors: 1
•   ::  Maximum Supported Devices: 6
• Compatible with:
•   ::  DL320 G2
•   ::  DL320 G3
•   ::  DL380 G3
•   ::  DL380 G4
•   ::  DL385 G1
•   ::  DL560
•   ::  DL580 G2
•   ::  DL580 G3
•   ::  DL585 G1
•   ::  DL740
•   ::  DL760 G2
•   ::  ML310 G1
•   ::  ML310 G2
•   ::  ML310 G3
•   ::  ML330 G2
•   ::  ML330 G3
•   ::  ML350 G3
•   ::  ML350 G4
•   ::  ML370 G3
•   ::  ML370 G4
•   ::  ML530 G2
•   ::  ML570 G2
•   ::  ML570 G3
• Condition: Refurbished
• Warranty: 1 (one) year Tekmart Africa warranty
•

Key points to note on these 305414-001 HP U320 Single Channel 64bit 133mhz Pci-x Ultra320 Scsi Raid cards:-

These Smart Array 641 Pci-X, Single Channel, Ultra-320 controllers do not include the 64MB cache or a battery. They require one empty PCI-X slot for installation.
