Supermicro 2U SAS2 Backplane x24 2.5in HDD Part #: BPN-SAS2-216EL2

This is a genuine 24-port SAS/SATA hard drive backplane with dual 6Gb/s SAS2 Expanders for server chassis SC216E26 & SC417E26 and support up to 24x 2.5" hot-swap SAS/SATA hard drives.

• Brand: Supermicro
• Part #: BPN-SAS2-216EL2

Specs: -

• Form Factor: 2U / 4U
• Product Type: SAS2 Expander Backplane with dual Expander Chips
• Supports: Up to 24x 2.5in HDD
• Compatibility: Supermicro CSE-417  JBOD system chassis
• Condition: Refurbished
• Warranty: 1 (one) year Tekmart warranty
•

Key points to note on this BPN-SAS2-216EL2 Supermicro backplane:-

This Supermicro SAS2-216EL2 backplane consists of one SAS2-216EB backplane, and two SAS2-216EL daughter cards mounted on the rear of the backplane.

•      >> Components on the front side of the SAS2-216EB backplane include twenty-four SAS ports, and their respecitve activity and failure LEDs.  Components on the rear side of the backplane include jumpers and power and fan connectors.

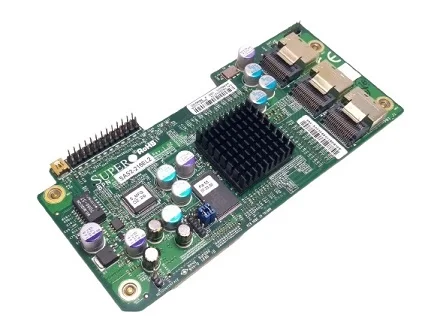

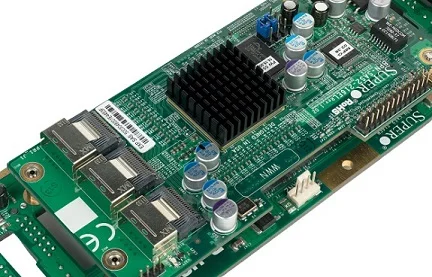

•      >> The daughter card's components include a single-port expander, SAS connectors, flash chip, and mode select jumpers.
• Supermicro SAS2-216EL2 SAS2 Expander Backplane features at:
•       <>Scalability through cascading
•       <>6Gb SAS2/SATA3 HDD support
•       <> Inband SES-2 Enclosure Management
•       <>Redundancy support through SAS drive
•       <>nput/Output SFF-8087 connector
