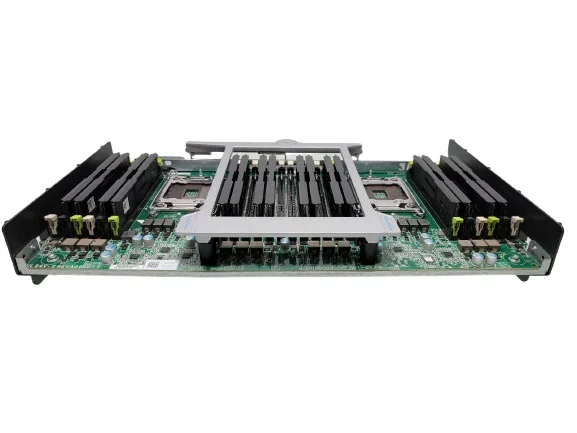

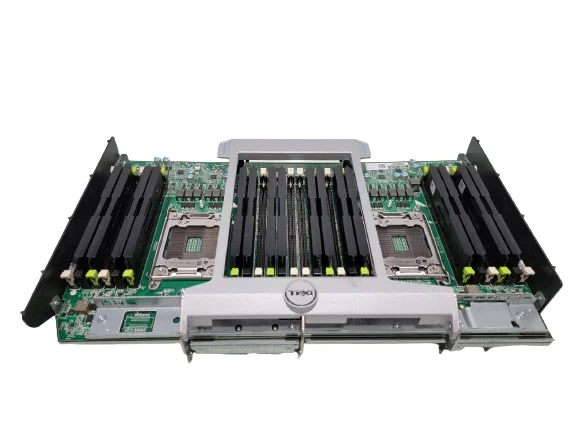

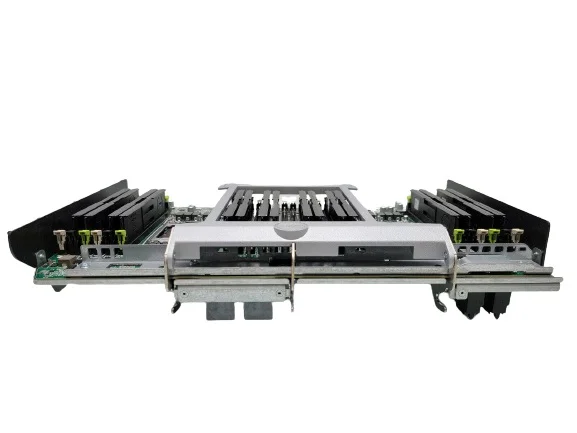

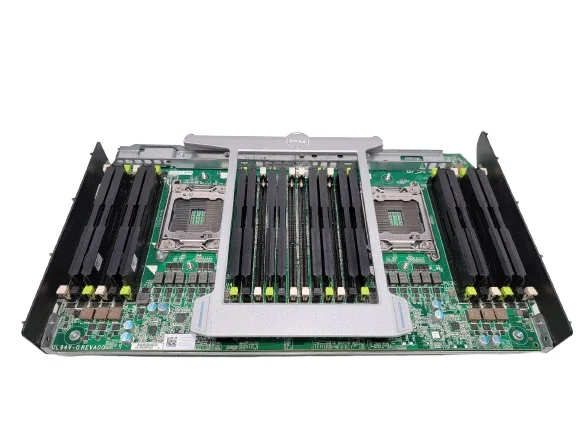

Dell R820 Expansion Riser Board for 2 CPU (3 & 4) 24 Memory Slot DPN: 08HJ4P,8HJ4P

• Brand: Dell
• Part #: 08HJ4P,8HJ4P
• Specs:-
•   ::  Type: Server conversion and enablement kits
•   ::  Description: Dell PowerEdge R820 processor expansion riser board for CPU 3 / CPU 4 (Dual CPU Sockets with  24 x DIMM Slots)
•   ::  No. of processors supported: 2
•   ::  Socket type: LGA 2011 (Socket R)
•   ::  Processor type: Intel  Intel Xeon E5-4600 V1 and V2 processor family.
•   ::  No. of memory slots: 24 total memory slots
•   ::  Memory type supported: DDR3 SDRAM
• Compatibility:
•   ::  Dell PowerEdge R820
• Condition: New
• Warranty: 1 (one) year Tekmart Africa warranty
•

Key points for note on these 0XTM13 Dell R830 expansion boards:-

The PowerEdge R830 system supports PCI express (PCIe) generation 3 expansion cards, which need to be installed on the system board using expansion card risers. This system supports three types of expansion card risers.

** These  processor expansion module (PEM) is present only in systems with four processors. **

Tekmart Africa Caveat:

Do not lift the processor expansion module by grasping a memory module or heatsink.

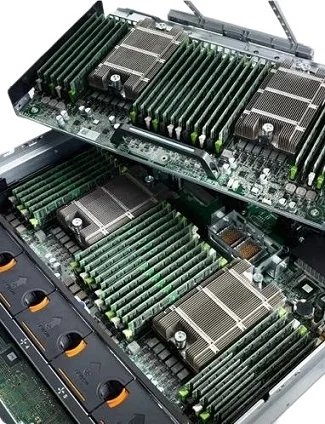

Installing the processor expansion module.

• ::  If applicable, remove the filler bracket. To remove the filler bracket, hold the tabs and lift the filler bracket away from the QPI connector.
• ::  If applicable, remove the PEM power connector cap.
• ::  By holding the support pin and the release lever, align the alignment guides on the PEM with the alignment guides on the chassis, and lower the PEM into the chassis.
• ::  Push the release lever towards the chassis until the PEM locks into place.

Concentrated power and capacity

Enhance data center application capacity by expanding your virtual environment using the massive memory footprint, I/O (input/output) options, processing power and flexible fabric choices of the PowerEdge™ R820.

Peak server performance
Tap the improved, state-of-the-art processing power of the Intel® Xeon® processor E5-4600 and E5-4600 v2 product families and hyper-dense, 48-DIMM memory. Built using 22-nanometer process technology with up to twelve cores per processor, the Intel Xeon processor is designed for super-fast performance for compute-intensive tasks.

Advanced I/O and virtualization
Help enhance your data center performance with the balanced, scalable I/O (input/output) capabilities of the PowerEdge™ R820 that include integrated PCIe Gen3-capable expansion slots.

Flexible and scalable networking
Tailor your network throughput to match your application needs with features like switch independent partitioning that allow you to take full advantage of your additional I/O performance.
