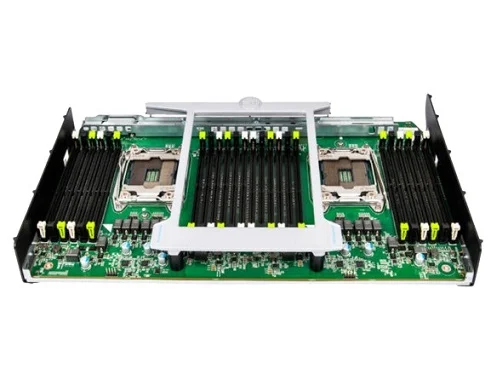

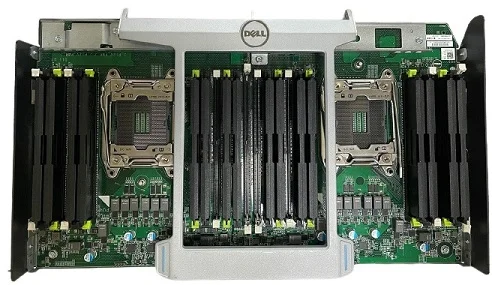

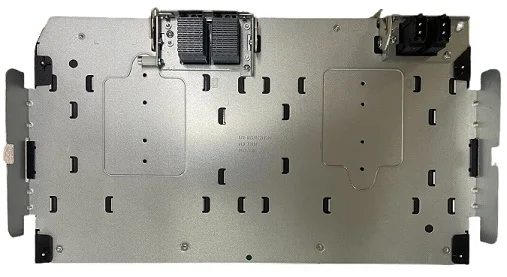

0XTM13 Dell R830 CPU Processor Memory Expansion Riser Board

Dell PowerEdge R830 CPU Processor+ Memory Expansion Riser Board DPN:XTM13,0XTM13

• Brand: Dell
• Part #: XTM13,0XTM13
• Specs:-
•   ::  Type: Server conversion and enablement kits
•   ::  Description: Dell PowerEdge R830 processor expansion riser board for CPU 3 / CPU 4 (Dual CPU Sockets with  24 x 1.2V DIMM Slots)
•   ::  No. of processors supported: 2
•   ::  Socket type: FCLGA2011-3
•   ::  Processor type: Intel XEON E5-4600V4 family
•   ::  Processor core count: up to 22 cores ( per processor)
•   ::  No. of memory slots: 24 total memory slots
•   ::  Memory type supported: up to DDR4-2400
• Compatibility:
•   ::  Dell PowerEdge R830
• Condition: New
• Warranty: 1 (one) year Tekmart Africa warranty
•

Key points for note on these 0XTM13 Dell R830 expansion boards:-

The PowerEdge R830 system supports PCI express (PCIe) generation 3 expansion cards, which need to be installed on the system board using expansion card risers. This system supports three types of expansion card risers.

These  processor expansion module (PEM) is present only in systems with four processors.

Caveat:

Do not lift the processor expansion module by grasping a memory module or heatsink.

Installing the processor expansion module.

• ::  If applicable, remove the filler bracket. To remove the filler bracket, hold the tabs and lift the filler bracket away from the QPI connector.
• ::  If applicable, remove the PEM power connector cap.
• ::  By holding the support pin and the release lever, align the alignment guides on the PEM with the alignment guides on the chassis, and lower the PEM into the chassis.
• ::  Push the release lever towards the chassis until the PEM locks into place.
