HP DL380 / DL388 G9 Graphics Enablement Kit HPN: 719082-B21

• Brand: HPE
• Part #: 719082-B21
•   ::  HPE Spare Cable Part #(s): 755742-001, 805123-001, 532393-001, 687955-001
•   ::  HPE Spare HeatSink Part #(s): 777291-001
• Kit includes:
•   ::  Cords supporting 2x double wide and 3 single wide cards - heatsinks - ** GRAPHICS CARDS NOT INCLUDED ** (2 heatsinks, required cables)
• Specs:-
•   ::  Product Type: GPU Cable Enablement Kit
•   ::  Description: Hewlett Packard Enterprise DL380 / DL388 Gen9 Graphics Enablement Kit
•   ::  Application Type: Upgrade
• Compatibility:
•   ::   DL380 (G9)-HPE ProLiant DL360 Gen9 CMS, DL380 Gen9, DL380 Gen9 Base, DL380 Gen9 Entry, DL380 Gen9 High Performance, DL380 Gen9 Performance
•   ::  DL388 (G9)
• Condition: New; open box
• Warranty: 1 (one) year Tekmart Africa warranty
•

Key points to note on these 719082-B21 Hewlett Packard Enterprise DL380 Gen9 Graphics Enablement Kits:-

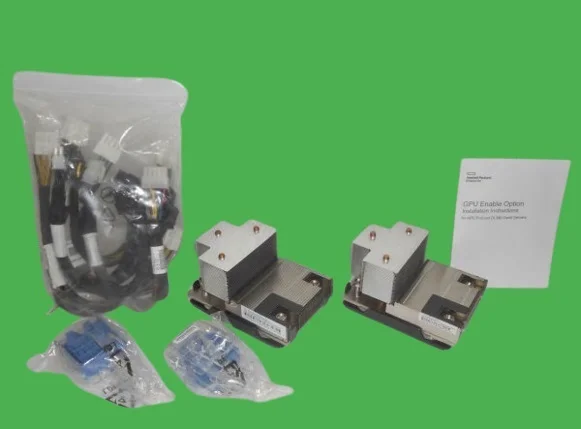

This GPU enablement kit includes 2 Heatsinks and 8 cables to enable double wide GPUs Graphics to be supported.

A High Performance heatsink can be added to help reduce power consumption (Part #: 795235-B21).  When populating the second optional riser slot, the second processor must be installed.

Double wide PCIe cards are only supported in risers with the Processors leveraging the High Performance Heatsink. For Processors requiring double wide GPU support please order the GPU enablement kit (719082-B21).

Primary Riser (Standard) Expansion Slots :-

• ::  Bus Width Indicates the number of physical electrical lanes running to the connector.
• ::  All slots support PCIe cards to 150W or more, but an additional Power Cable Kit is required.
• ::  Double wide PCIe cards are only supported in risers with the Processors leveraging the High Performance Heatsink.
• ::  For Processors requiring double wide GPU support please order the GPU enablement kit (719082-B21).
•

Slot 2 PCIe Riser (Optional 3-slot) 719073-B21 Expansion Slots:-

• ::  Bus Width Indicates the number of physical electrical lanes running to the connector.
• ::  When populating the second optional riser slot, the second processor must be installed.
• ::  All slots support PCIe cards to 150W or more, but an additional Power Cable Kit is required.
• ::  Double wide PCIe cards are only supported in risers with the Processors leveraging the High Performance Heatsink.
• ::  For Processors requiring double wide GPU support please order the GPU enablement kit (719082-B21).
•

Slot 1 PCIe Riser  (Optional 2-slot) 719076-B21 Expansion Slots:-

• ::  Bus Width Indicates the number of physical electrical lanes running to the connector.
• ::  This will replace the standard primary riser and supports double wide cards.
• ::  All slots support PCIe cards to 150W or more, but an additional Power Cable Kit is required.
• ::  Double wide PCIe cards are only supported in risers with the Processors leveraging the High Performance Heatsink. For Processors requiring double wide GPU support please order the GPU enablement kit (719082-B21)
•

For doublewide GPU support you are required to have at least 1x1400W Power Supply (Part #: 720620-B21), per card for cards over 150W. Cards 150W or under can use 800W Power Supplies.
