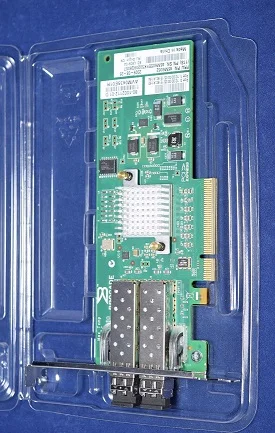

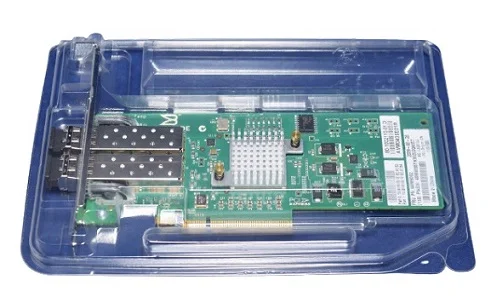

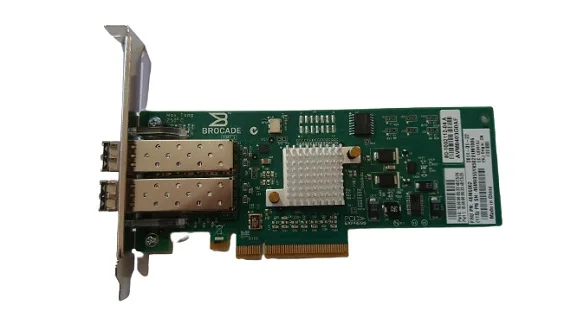

BROCADE 8G FIBRE CHANNEL DUAL PORT HBA HOST BUSINESS ADAPTER FRU: 46M6062

• Brand: IBM
• Part #: 46M6062
• Condition: New, open box
• Warranty: 1 (one) year Tekmart warranty

An overview

The Brocade 8Gb FC Single-port and Dual-port host bus adapters (HBAs) by QLogic are PCI Express 2.0 x8 8Gb Fibre Channel adapters with SFP+ LC-style connectors. The adapters connect to SFP+ Multimode Fiber SR optical modules. These adapters support 8 Gbps per port maximum bidirectional throughput for high-bandwidth storage (SAN). The PCI Express low profile form factor adapter can be used in either a standard PCI Express slot or a low profile PCI Express slot.

Introduction

These adapters connect to SFP+ Multimode Fiber SR optical modules. These adapters support 8 Gbps per port maximum bidirectional throughput for high-bandwidth storage (SAN). The PCI Express low profile form factor adapter can be used in either a standard PCI Express slot or a low profile PCI Express slot.

Figure 1 shows the single-port and dual-port adapters.

Figure 1. Brocade 8Gb FC Single-port and Dual-port HBAs (with 2U bracket attached)

Did you know?

Brocade 8Gb HBAs enable end-to-end SAN Solutions using 8 Gb Fibre Channel technology for System x servers. They provide the ability to build high-performance, highly available SANs and are easy to set up and integrate into existing SAN configurations.

For local or remote management, Brocade provides Host Connectivity Manager (HCM) native GUI and CLI tools to configure and monitor its HBAs. In addition, Brocade DataCenter Fabric Manager (DCFM) provides unified, end-to-end management across fabrics with Brocade Fibre Channel switches and HBAs. Both DCFM and HCM provide open APIs and standards-based interfaces for integration with popular third-party applications and higher-level frameworks to help orchestrate Brocade hardware and SAN services.

Part number information

Table 1. Ordering part numbers and feature codes

The part numbers for the Brocade 8Gb FC Single-port and Dual-port HBAs include the following items:

• FC HBA adapter with one or two SFPs installed and 3U bracket attached
• Quick install guide
• Support CD
• 2U bracket
• Safety flyer
