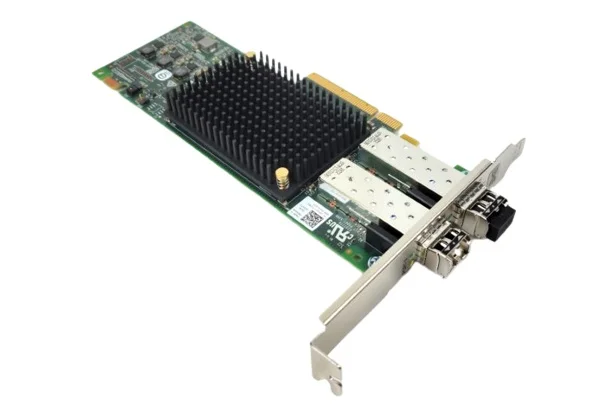

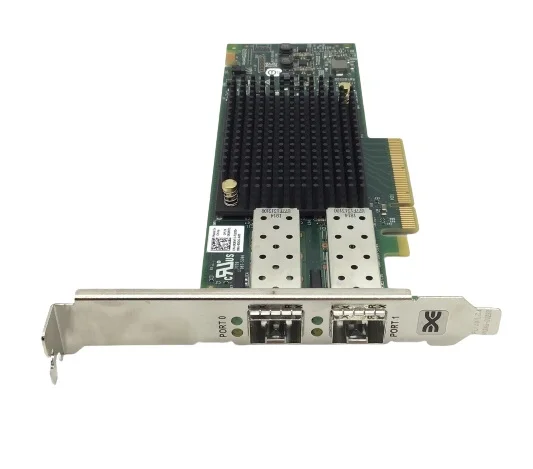

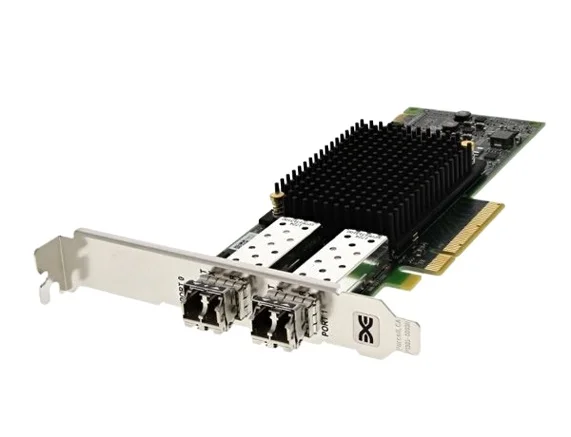

Dell Emulex LPe31002-M6-D 16Gb/s Fibre Channel (FC) Dual Port (DP) PCI-e Host Bus Adapter (HBA) DPN: 0RXNT1,RXNT1
- Brand: Dell
- Manufacturer: Emulex
- Part #(s)
- Dell Part #: RXNT1, 0RXNT1
- Alt. Part #(s): 403-BBMF,GVF0M, 0GVF0M
-
| Specs: |
| Category |
Dell |
| Sub-Category |
HBA |
| Generation |
Fibre Channel |
| Part #: |
0RXNT1,RXNT1 |
| Device Type |
Host Bus Adapter |
| Form Factor |
Plug-In Card |
| Interface Type |
PCI Express 3.0 x8 |
| Data Link Protocol |
16Gb/s Fibre Channel (SW) |
| Data Transfer Rate |
14.025Gbps |
| Ports |
16Gb/s Fibre Channel x 2 |
| Condition |
New |
| Warranty |
1 (one) year Tekmart Africa warranty |
Compatibility:
- :: Servers: Dell PowerEdge: R440 R530 R540 R630 R640 R650 R730 R730XD R740 R740XD R7415 R7425 R750 R750xa R7515 R7525 R840 R930 R940 R940xa T550 T630 T640 Servers
- :: Storage: Dell PowerVault ME4012 ME4024 ME4084 Arrays
-
Key points to note on these 0RXNT1 Dell FC HBA cards:-
These Emulex LPe31000/LPe32000 16/32Gb Fibre Channel (FC) Host Bus Adapters (HBAs) by Broadcom are designed to address the demanding performance, reliability and management requirements of modern networked storage systems that utilize high performance and low latency solid state storage drives.
The Emulex LPe31002-M6-D Host Bus Adapter from Dell ™ offers an exceptional performance and advanced management functionality that can shave days off installing and managing adapters.
It is coupled with up to 2x better IOPS performance per watt - which makes Dell 16Gb/s Fibre Channel (16GFC) host bus adapters the clear choice for the toughest virtualized - cloud and mission critical deployments.
Supported cable length(s):
-
- Operating at 16Gb
- OM4 (Multi-Mode 50/125μm, 4700 MHz*km) 125m
- OM3 (Multi-Mode 50/125μm, 2000 MHz*km) 100m
- OM2 (Multi-Mode 50/125μm, 500 MHz*km) 35m
- Operating at 8Gb
- OM4 (Multi-Mode 50/125μm, 4700 MHz*km) 190m
- OM3 (Multi-Mode 50/125μm, 2000 MHz*km) 150m
- OM2 (Multi-Mode 50/125μm, 500 MHz*km) 50m
-
Tekmart Caveat:
** Please confirm your selection of either Low Profile or Full Height Bracket in the comments field at checkout **
** No transcievers are included with the HBA card. Their inclusion in the image is for illustrative purposes only**
