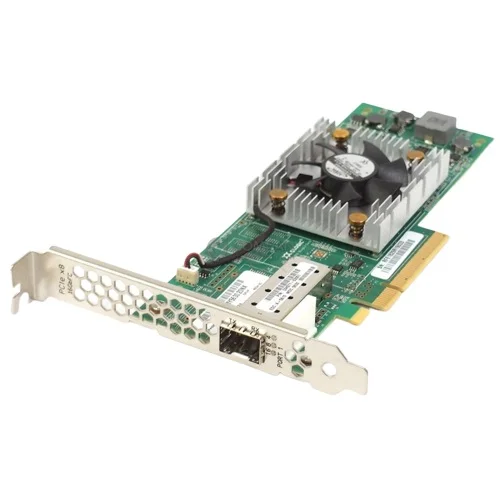

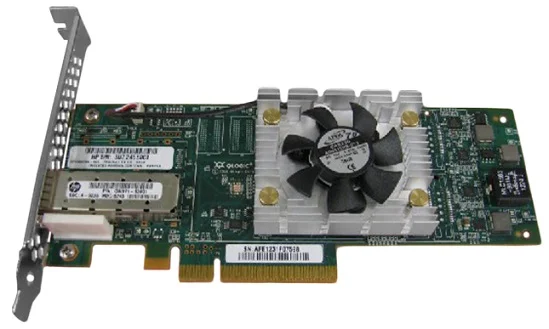

HPE StoreFabric SN1000Q 16Gb Single Port Low Profile PCI Express 3.0 Fibre Channel HBA HPN: QW971A,699764-001
- Brand: HPE
- Part #(s):-
- Option Part #: QW971A
- Spare Part #: 699764-001
- Specs:-
- :: Type: Host Bus Adapter
- :: Form Factor: Plug-in Card - Low Profile
- :: Interface (Bus) Type: PCI Express 3.0 x4
- :: Ports: 16Gb Fibre Channel x 1
- :: Port Speed: 16 Gbps
- :: Slot Type Supported: PCI Express 3.0 to Fibre Channel
- :: Media: Multi-Mode Optic (SFP+)
- :: Connector: Short Wave laser with Lucent Connector (LC)
- :: PCIe Connector: PCIe 3.0 x4
- :: Auto-Negotiation: 16/8/4 Gbps
- :: Connectivity Technology: Wired
- :: Cabling Type: Fiber Optic
- :: Data Link Protocol: 16Gb Fibre Channel (Short Wave)
- :: Data Transfer Rate: 16 Gb/sec
- :: Features: Auto-NegotiationCompatible Slots: 1 x PCI Express 3.0 x4
- :: Expansion Slots: 2 (total) / 0 (free) x SFP+
- :: Interfaces: 1 x 16Gb Fibre Channel (Short Wave) - LC multi-mode - x 2
- Compatibility:-
- Servers:
- :: HP ProLiant G7-G10 Servers: Dl . Ml . Sl . Series
- Arrays:
- :: 3par
- :: P9500
- :: P6000
- :: Xp20000 / Xp24000
- :: P2000 G3
- :: EVA 4400 / 4400s
- :: EVA 6400 / 8400
- Condition: New
- Warranty: 1 (one) year Tekmart Africa warranty
-
Key points to note on these 699764-001 HPE Fibre Channel HBAs:-
The HPE StoreFabric SN1000Q 699764-001 Low Profile Host Bus Adapters provide Fibre Channel connectivity. Data transfer rate 16 Gbps data Fibre Channel transfer rates are well-suited for enterprise network and storage device connections.
They enable more rapid storage and retrieval of critical information when using high bandwidth cloud applications and storage intensive applications such as backup, database transactions and rich media. Designed for greater virtual machine density and bandwidth requirement environments, the SN1000Q 16Gb HBA enables more applications and virtual machines to run on a single server and port, resulting in reduced cabling and higher return on IT investment.
The SN1000Q 16Gb HBA is backward compatible with 8 and 4 Gb storage networks and will protect future investments. With the ability to deliver twice the I/O performance of 8 Gb FC HBAs. The SN1000Q takes Storage Networking performance and efficiency to the next level.
The Highest Performing Fibre Channel Host Bus Adapters
These HBAs deliver twice the I/O performance of 8 Gb Fibre Channel HBAs. Moving to 16 Gb technology provides the infrastructure required for the more powerful servers and data intensive applications of the future. When using storage intensive applications like backup/restore, database transactions, virtualization and rich media, the improved I/O performance enables faster storage and retrieval of data.
Best Fibre Channel Host Bus Adapters for Virtualization
They are ideal for the implementation of virtual servers with the power to drive multiple virtual machines. Allows a single port to acquire multiple N Port IDs, eliminating the need for additional physical ports.
Datacenter administrators do not need to concern themselves with multiple requests from the virtualized servers potentially creating conflict. Improves host utilization and enhances application performance.
Next Generation Host Bus Adapters with Improved IOPS Performance per Watt
Power savings result in lower operating expenditure.
