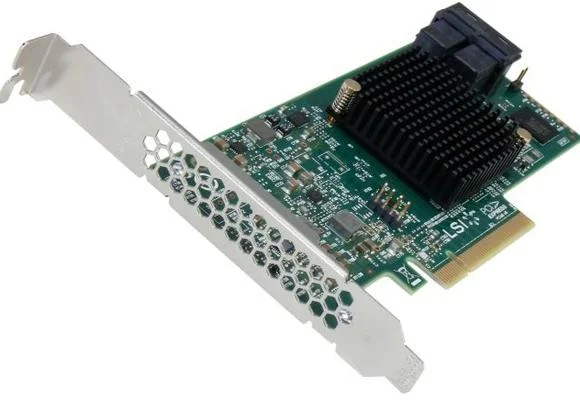

LSI Logic LSI00344 9300-8i SGL SAS 8Port 12Gb/s PCIE3.0 HBA Controller Card Part #:SAS9300-8I , Model: LSI00344
- Brand: AVAGO
- Part : SAS9300-8I
- Model:LSI00344
- Specs:-
- :: Type: Host Bus Adapter (HBA)
- :: Eight ports of 12Gb/s SAS + SATA ports
- :: Eight lanes of PCI Express 3.0
- :: Low-profile form factor
- :: Mini-SAS HD connectors
- :: LSI SAS 3008 12Gb/s SAS+SATA controller
- :: Supports SSDs, HDDs, and tape drives
- :: Provides connectivity in a low-profile form factor
- :: 8 lanes of PCI Express 3.0 provides fast signaling for high bandwidth applications
- :: High performance with 12Gb/s SAS data transfer rates
- Condition: Refurbished
- Warranty: 1 (one) year Tekmart warranty
-
Key points to note on these LSI00344 AVAGO HBA Cards:-
Demanding applications may require dozens of internal drives servicing thousands of users. The SAS 9300-8i 12Gb/s SAS Host Bus Adapter provides bandwidth for critical applications in 1U/2U servers and workstations.
Support for both SAS and SATA drives gives flexibility in designing storage architectures and helps protect existing infrastructure investments.
- :: Connect up to 1024 SAS and SATA devices with 8 internal 12Gb/s SAS and SATA ports
- :: Fit into 1U/2U rack-mounted servers and workstations with low-profile form factor (full-height bracket included)
- :: Provide up to 12Gb/s SAS and up to 6Gb/s SATA performance across 8 lanes of PCIe® 3.0 connectivity
