ViewCast OSPREY 460e Acquisition card Part #: 94-00268-01

• Brand : VIEWCAST
• Model : OSPREY 460e 94-00268-01
• Specs:-
•   ::  Type : Capture Card
• Format:
•   ::  1 x PCIe (Slots: x1, x4, x8, or x16, PCIe 2.0)
• Breakout Cable Connector: 15-pin connector (breakout cable not-included)
•   ::  Video Inputs: On-Board: (4 x Composite on BNC (BNC to RCA adapters included)-*Component and S-Video inputs supported via optional Osprey AV option board
•   ::  Video Modes:
•   ::  NTSC/PAL
• 720 x 480 29.97, 30/i (NTSC)
• 852 x 480, 29.97, 30/i (NTSC Wide Screen)
• 720 x 576 25/i (PAL)
• Wide Screen Signaling (WSS)
•   ::  Audio Input:
• Via Breakout Cable:( 4 x Unbalanced stereo via 8 RCA connectors-*4 unbalanced stereo inputs via 8 XLR connectors supported via optional Osprey AV option board
• Power Consumption: 11 W
• Condition: New
• Warranty: 1 (one) year Tekmart Africa warranty
•

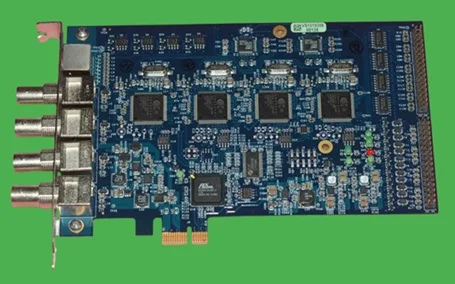

The Osprey 460e is a 4-channel analog Composite BNC capture card ideal for high density capture on modern PC platforms. The 4 inputs are on-board, and four unbalanced stereo audio inputs are also available via an 8-RCA breakout cable.

Furthermore, an optional AV expansion add-on can be incorporated to integrate Component, S-Video, and XLR balanced stereo audio via additional breakout cables.

Two or more cards can be deployed in a single PC chassis for maximum versatility.

Key Features:-

• ::  4-Ch Video + Unbalanced Stereo Audio

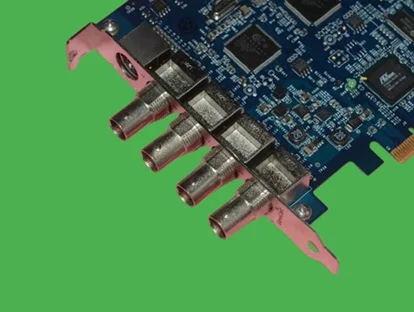

• ::  4 On-Board Composite BNC Connectors
• ::  4 Stereo Audio Inputs via 8-RCA Breakout
• ::  Optional Component/S-Video/XLR Supported
• ::  Two or More Deployable in Single Chassis
