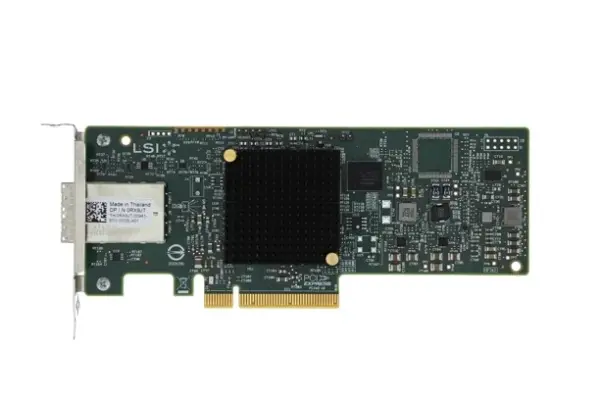

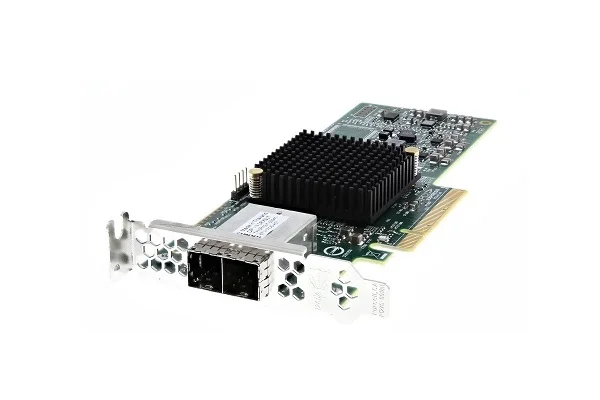

Dell LSI 9300-8e 12G 2x Mini SAS HD SFF8644 8-Port PCI-E SAS Controller DPN: RX9JT,0RX9JT
- Brand: LSI
- Part #: RX9JT,0RX9JT,9300-8e ( Dual Part numbered card, LSI original with additional Dell part number)
- Specs:-
- :: Host Bus Type: X8 Lane PCI Express 3.0
- :: Physical Dimensions: Low Profile (2.6" X 6.0")
- :: Devices Supported: 1024 Non-Raid SAS/SATA Devices
- (Connect up to 1024 Non-Raid SAS and SATA devices with 8 external 12Gb/s SAS and SATA ports)
- :: External Connectors: 2 MINI-SAS HD SFF8644
- (Connector Type: 2 x SFF-8644)
- :: Fusion MPT Support: Fusion MPT 2.5
- :: Data Transfer Rate: 12Gbps
- :: Number of External Ports: 8
- :: Low Profile Bracket
- :: PCI-e: 3.0 x8
- :: PCI Power 14.5W
- :: Cable Support: Passive Copper, Active Optical
- :: I/O Controller: LSI SAS3008
- :: Data Transfer Rates: 12GB/S SAS-3 Compliant
- Condition: New
- Warranty: 1 (one) year Tekmart Africa warranty
-
Key points to note on thedse RX9JT Dell HBAs:-
The Sas 9300 8-port, 12gb/s Sas Host Bus Adapter Family provides increased connectivity and maximum performance for high-end servers and appliances within internal storage, or connecting to large scale storage enclosures.
The Sas 9300 Hba Family is based on the Sas 3008 i/o controller, integrating the latest enhancements in Sas And Pci Express technology.
Each Host Bus Adapter (HBA) also supports 8 Sas ports operating at 12gb/s Data Transfer Rates, and can reach over 1 Million Iops. The 9300 Adapter Family supports 8 Pci Express lanes that comply with the latest Pci Express 3.0 specifications.
In Addition, these Adapters are backwards compatible with previous Sas And Pcie generations through automatic negotiation, and provide Sas Data Transfer Rates Of 12, 6, And 3 Gb/s per lane, and Sata Data Transfer Rates Of 6 and 3gb/s per lane.
