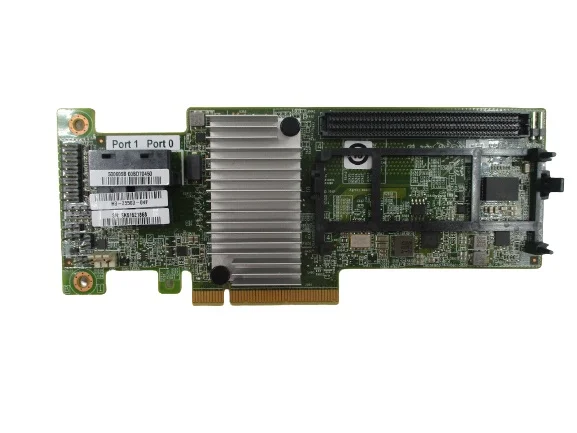

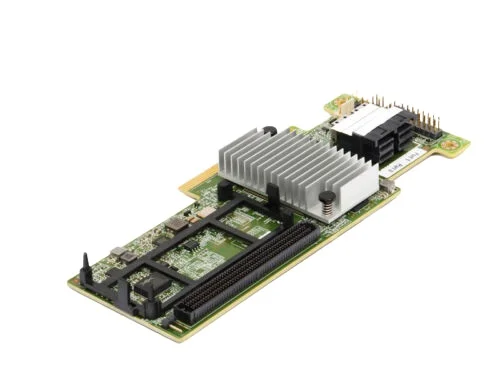

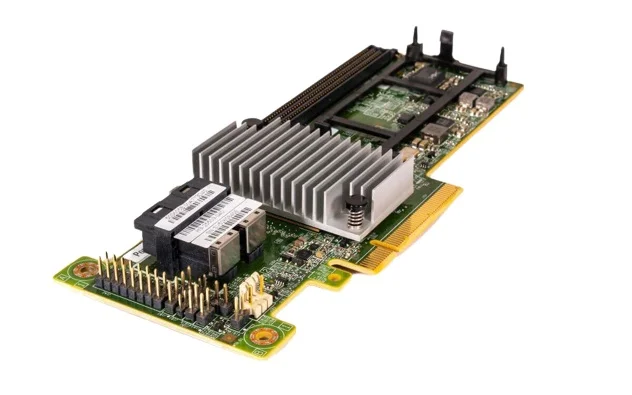

IBM ServeRaid M5210 12GB Raid Controller for X3550 M4 M5, X3650 M4 servers (no bracket) FRU: 00AE852
- Brand: IBM
- Part #: 00AE852
- Alt. Part #: 46C9110
- Specs:-
- :: Type: Raid controller
- :: Description: X4 per lane ( 2 ) two mini SAS HD SFF-8643 Ports - N0 ServeRAID Flash / RAID 5 CACHE
- :: Transfer rate: 12GBps (1200MBps)
- :: Interface: PCI-e X8 (SATA 6Gb/s / SAS 12Gb/s (Low Profile))
- :: Form Factor: PCI-e adapter
- :: Interface speed: PCI-e 3.0 X8
- :: Lanes: Eight lanes ( 8 lanes )
- :: Connectors: ( 2 ) two mini SAS HD SFF-8643 connectors ( 36 pin 4x Mini SAS HD (SFF-8643)
- :: Supported RAID Level: RAID 0 1 10
- System x Compatibility:
- :: IBM System x3500 M4
- :: IBM System x3550 M4
- :: IBM System x3650 M4
- :: IBM System x3750 M4
- :: Lenovo System x3550 M5
- Condition: New
- Warranty: 1 (one) year Tekmart Africa warranty
-
Key points to note on these 00AE852 IBM ServeRAID M5210 Raid controllers:-
The ServeRAID M5210 and M5210e SAS/SATA Controllers are high performance 12 Gb SAS controllers for internal disk storage. They are part of the ServeRAID M Series family that offers a complete server storage solution consisting of RAID controllers - cache/flash modules - energy packs - and software feature upgrades in an ultra-flexible offerings structure.
These products are optimized to deliver the performance that is demanded by the ever-growing I/O requirements of today's enterprises.
The above M5210 is a low profile PCIe adapter.
