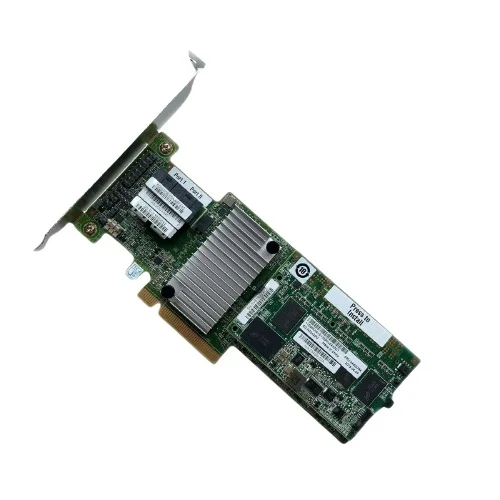

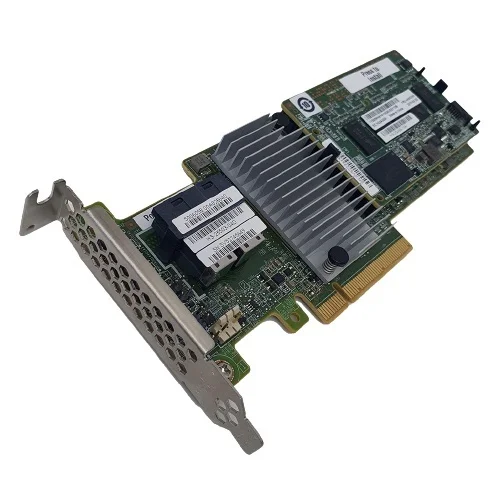

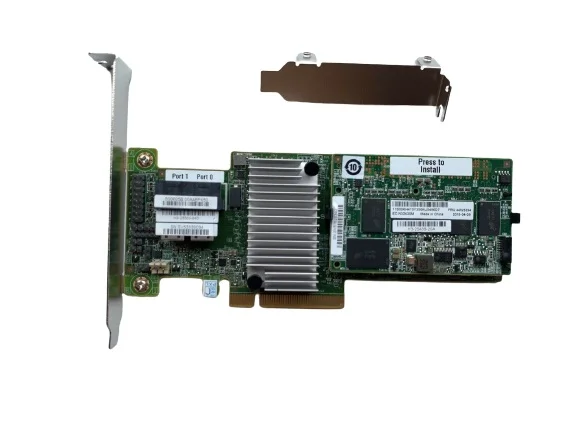

Lenovo RaidStorage ServeRAID M5210 SAS/SATA PCI-E 3.0 x8 12GB Raid Controller (Part #: H3-25503-04D) with 1GB cache / flash module (Part #: H3-25488-18A)
- Brand: Lenovo / IBM
- Part #: H3-25503-04D
- :: Cache Module: 1GB Cache / flash module (Part #: H3-25488-18A, H3-25488-19A)
- Specs:-
- :: Type: Low profile plug-in card storage controller (RAID)
- :: Bus Type: PCIe 3.0 x8
- :: Interface: SATA 6Gb/s / SAS 12Gb/s
- :: Data Transfer Rate: 1200 MBps
- :: Supported Devices: Disk array (RAID)
- :: Channel Qty: 8
- :: Max Storage Devices Qty: 32
- :: RAID Level: RAID 0, RAID 1, RAID 10
- :: System Requirements:
- Microsoft Windows Server 2008, Red Hat Linux Enterprise Server 6 x64 Edition, Red Hat Linux Enterprise Server 6, Microsoft Windows Server 2012, SuSE Linux Enterprise Server 11 for Intel x86/AMD64/EM64T (32/64 bits), VMware ESXi 5.1
- Compatibility:
- :: System x3250 M6
- :: System x3300 M4
- :: System x3500 M4
- :: System x3550 M4
- :: System x3650 M4
- :: System x3650 M4 BD
- :: System x3650 M4 HD
- :: System x3850 X6
- :: System x3950 X6
- Condition: New
- Warranty: 1 (one) year Tekmart Africa warranty
-
Key points to note on these H3-25503-04D Lenovo RaidStorage ServeRAID cards:-
The ServeRAID M5210 and M5210e SAS/SATA Controllers are high performance 12 Gb SAS controllers for internal disk storage. They are part of the ServeRAID M Series family that offers a complete server storage solution consisting of RAID controllers, cache/flash modules, energy packs, and software feature upgrades in an ultra-flexible offerings structure.
