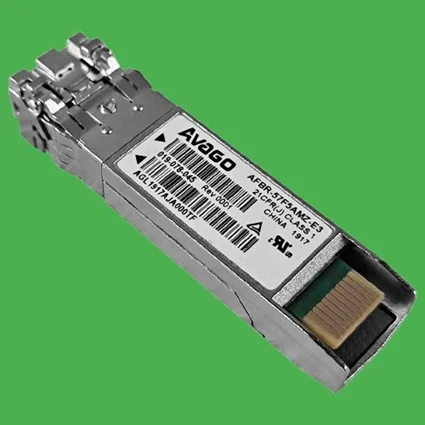

Avago 16Gb FC Multirate 850nm SFP+ SW, Model: AFBR-57F5AMZ-E3, EMC Part #: 019-078-045
- Brand: EMC
- Part #: 019-078-045
- Models: AFBR-57F5AMZ-E3
- Alt. Model: FTLF8529P3BNV-E5
- Specs:-
- :: Type: Transciever module
- :: Description: SFP+ (Small Form Pluggable), LC Connector
- :: Connector type: LC Duplex
- :: Operating temperature range: 0°C to 70°C
- :: Digital Diagnostic Monitoring (DDM) support: Yes
- :: Data transfer rate: 16/8/4 Gb/s Multirate Selectable
- Maximum Cable Distances:
- :: 300 meters over OM3 multimode fiber
- :: 400 meters over OM4 multimode fiber
- Transmitter Power: -6.5dBm to 0.5dBm
- Receiver Sensitivity: <-11.1dBm
- :: Protocols: FC-PI-5 16GFC, 8GFC, 4GFC and OEM'ed for EMC devices
- Condition: New
- Warranty: 1 (one) year Tekmart Africa warranty
-
Key points to note on these 019-078-045 Avago / EMC transcievers:-
These transciever modules are Short Wave 850nm, LC Connector with a with M-Moveable Pin Housing. They are Avago Original and can reach 300 meters. They are manufactured by Avago for EMC and are Hot Pluggable, Low Voltage (3.3 V) with a wide temperature range (0°C to 85°C). They can be used in many Fiber Channel Switches and Disk and Tape Drive Array applications.
Avago Technologies’ AFBR-57F5AMZ optical transceivers support high speed serial links over multi-mode optical fiber at signalling rates up to 14.025Gb/s (the serial line rate of 16GFC).
They are also compliant with SmallForm Pluggable industry agreements SFP and SFP+ for mechanical and low speed electrical specifications. High speed electrical and optical specifications are compliant with ANSI Fibre Channel FC-PI-5. The AFBR-57F5AMZ is a multi-rate 850nm transceiver which ensures compliance with FC-PI-5 16GFC, 8GFC and 4GFC specifications.
