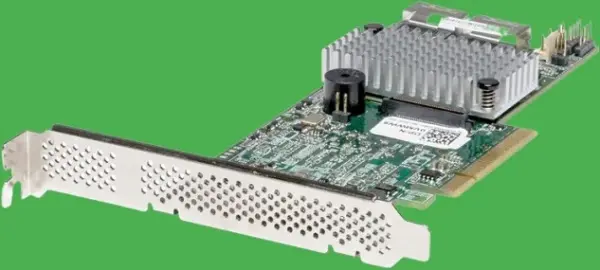

LSI Logic MegaRAID SAS 9271-8i 8Port 6Gb/s PCI Express 3.0 1GB DDR3 SATA / SAS RAID Single Controller Card Part #: LSI00330
- Brand: LSI Logic
- Part #: LSI00331
- Specs:-
- :: Eight internal 6Gb/s SATA+SAS ports
- :: Two Mini-SAS internal connectors (SFF8087)
- :: SAS 2208 Dual- core 6Gb/s ROC –x2 800MHz PowerPC Processors
- :: PCI Express 3.0 Host Interface
- :: 1GB DDRIII cache memory
- :: RAID Levels 0, 1, 5, 6, 10, 50 and 60
- :: Support for NAND flash or BBU cache protection solution
- Condition: New
- Warranty: 1 (one) year Tekmart Africa warranty
-
Key points to note on these LSI00330 LSI Logic MegaRAID Cards:-
The MegaRAID SAS 9271-8i 6Gb/s SAS and SATA RAID controller card is designed to meet the needs for capacity, performance and data protection in data center, cloud and high-performance computing environments.
This card is powered by the LSI SAS 2208 RAID on Chip (RoC) controller, and features two 800MHz PowerPC processor cores and a 72-bit DDRIII interface that drives 1GB cache memory.
And with eight internal ports, the 9271-8i controller includes the latest PCI Express 3.0 and 6Gb/s SAS technology for unmatched RAID performance.
- :: Connect up to 128 SATA or SAS drives with eight internal 6 Gb/s SATA and SAS ports
- :: Fit into rack-mounted servers with low-profile form factor and side-mounted SAS connectors
- :: Bandwidth to support critical applications with PCIe 3.0 connectivity
- :: Balance protection and performance for critical applications with RAID levels 0, 1, 5, 6, 10, 50, and 60
- :: Add more protection and peace of mind with optional CacheVault flash cache protection and heat-tolerant battery backup cache protection modules
Also note an added special feature of these MegaRAID® SAS 9271-8i cards.
These cards support RAID caching.
What is this RAID caching?...well
RAID caching is a cost-eff ective way to improve I/O performance by writing data to a controllers’ cache before it is written to disk. In write-back mode, data written to cache is vulnerable until it is made permanent on disk. To avoid the possibility of data loss or corruption during a power or server failure, Avago off ers the CacheVault fl ash cache protection module or the LSIiBBU09 battery backup unit for the MegaRAID SAS 9271-8i controller.
CacheVault fl ash cache protection uses NAND fl ash memory powered by a super-capacitor to help protect data stored in the MegaRAID controller cache. The RAID controller automatically writes the data in cache memory to fl ash storage when a power failure occurs, while the super-capacitor keeps the current going during the process.
When the power comes back, the DRAM is recovered from flash storage and the system goes on without loss of data.
Customers have the fl exibility to choose a traditional LiON battery solution or a greener, lower total cost of ownership (TCO) cache protection solution with MegaRAID CacheVault technology.
