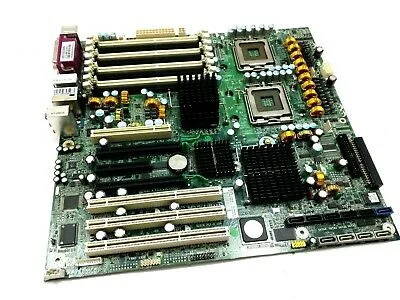

HP System Board (MotherBoard) Dual Socket-771 for XW8400 WorkStation HPN: 442028-001

• Brand: HP
• Part #: 442028-001 380688-003
• Specs:-
•   Motherboard Specifications:
•     CPU Supported:  Quad-Core Intel Xeon Processor 5300 sequence or Dual-Core Intel Xeon Processor 5100 sequence
•     Chipset: Intel 5000X
•     Board Form Factor: SSI-EEB (E-ATX 12" x 13")
•     Processor Socket: Dual LGA 771
•     Memory Expansion Slots: 8 DIMMs
•     Memory Type Supported: DDR2 registered ECC FB-DIMMs
•     Memory Speed Supported: 667 MHz
•     Maximum Memory Supported:  32 GB (8 FB-DIMM slots with 4 GB DIMMS or optional risers to achieve 16 FB-DIMM slots & 2 GBDIMMS)
•     Network Controller: Broadcom 5752 Gigabit Ethernet LAN on Motherboard
•     Audio: Integrated Intel/Realtek HD digital audio with S/PDIF 6-channel pass-through, stereo microphone, and Yamaha XG Lite Softsynth support
• PCI Slots: 1 half-length PCI slot
•            6 full-length slots with a mechanical card guide support for a PCI card with extender bracket.
•            3 PCI-X slots (one 133 MHz, two 100 MHz slots)
•            1 PCI Express x16 graphics
•            1 PCI Express x16 mechanical (x4 electrical)
•            1 PCI Express x8 mechanical (x4 electrical)
• Rear I/O
•            2 IEEE-1394b,
•            5 USB 2.0,
•            1 standard serial port,
•            1 parallel port,
•            PS/2 keyboard and mouse,
•            1 RJ-45 to integrated Gigabit LAN,
•            Audio In,
•            Audio Out,
•            Microphone In
• Condition: HP Renewed Spare Part
• Warranty: 1 (one) year Tekmart warranty
•

Key points to note on this 442028-001 XW8400 workstation mainboard:-

• >>   This is a genuine HP XW8400 Workstation Motherboard Dual LGA771 CPU Sockets with Part # (s): 442028-001 380688-003
• >>   It supports Multi-GPU Support and On-Board Audio
• >>   Has both PCI and PCI Express Expansion Slots
• >>   Has Ethernet (RJ-45), Parallel (IEEE1284), Serial (RS-232) ports
