Backplanes | Midplanes | Risers
A **backplane** is an electronic circuit board containing circuitry and sockets into which additional electronic devices on other circuit boards or cards can be plugged; in a computer, generally synonymous with or part of the motherboard.Backplanes are essential pieces of equipment for your configuration. They provide extra circuitry and sockets for multiple electronic devices to connect with other boards or for other devices to be plugged, including networking cards, hard drives, and more. Backplanes/midplanes connect boards together, and distribute power and data between the connected parts Midplanes are often used in computers, mostly in blade servers, where server blades reside on one side and the peripheral (power, networking, and other I/O) and service modules reside on the other. Midplanes are also popular in networking and telecommunications equipment where one side of the chassis accepts system processing cards and the other side of the chassis accepts network interface cards. Alternatively, a **Riser Card** is an expansion card that is used to extend a slot for an I/O card in a fully loaded computer to make room to plug it in. It may also refer to a card that contains several slots used in low-profile, space-saving enclosure. **The I/O cards are plugged into the riser card and reside parallel with the motherboard.** Tekmart stocks several kinds of backplanes or midplanes for sale, compatible with various systems and brands, for example SCSI backplanes, disc backplanes, power distribution boards, midplane board assemblies, logic centerplanes, and so on. We have backplanes and midplanes from SUN, IBM, Dell, and many more. Contact us at **[support@tekmart.co.za](mailto:support@tekmart.co.za?subject=Query%3A%20Backplane%20and%20midplanes%20boards)** or on **0861 711 712** (within RSA) or **+2711 027 6793** (international) for your backplane/midplane/riser replacement parts requirement(s) for your server and our consultants will gladly assist you. **Figur
Dell R430 10-Bay SFF (2.5inch) Backplane Board DPN: 0X3M3C,X3M3C. Brand: Dell. Part #(s): 0X3M3C,X3M3C. Specs:-. :: Type: Server Backplane Board. :: Bay Size: 2.5 Inch Large Form Factor SFF. :: Backplane Interface…
Dell PowerEdge R430 R630 8X 2.5 SAS Backplane Board DPN: 0MG81C,MG81C. Brand: Dell. Part #(s):0MG81C,MG81C. Specs:-. :: Type: Server Backplane Board. :: Bay Size: 2.5 Inch Large Form Factor SFF. :: Backplane Interface…
Dell PowerEdge R330 R430 4 Bay 3.5inch SAS Backplane DPN: 0820HH,820HH. Brand: Dell. Part #(s):0820HH,820HH. Specs:-. :: Type: Server backplane board. :: Bay Size: 3.5 Inch Large Form Factor LFF. :: Backplane Interface…
HP ProLiant DL380 G9 GEN9 PCIe Riser Card CAGE Assembly HPN: 729804-001. Brand: HPE. Part #: 729804-001. Specs:-. :: Type: Server Riser Cards. X3 TOTAL PCI Slots Standard Primary Riser Board. :: Slot 1 PCI-e 3.0 X8 (…
Dell T640 SAS 8x 2.5 Nvme 8-Port Tower Server Backplane Board DPN: P78D4,0P78D4. Brand: Dell. Part #: P78D4,0P78D4. Specs:-. :: Type: Server Backplane Boards. :: No. of drives: 8. Compatibility: ::Dell T640 Tower…

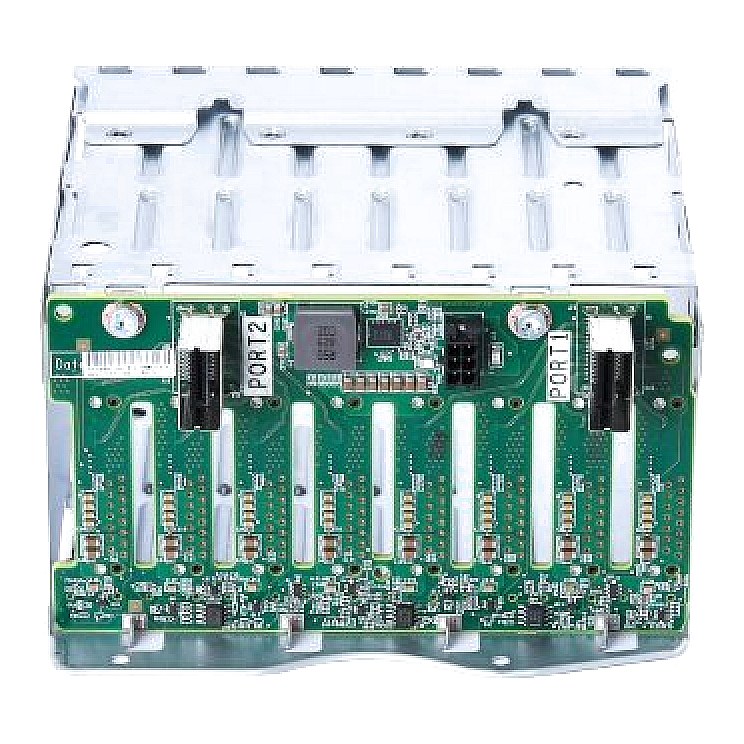

HPE DL38X Gen10 SFF Box1 2 Cage Backplane Kit Hardware Mount HPN: 826691-B21. Brand: HPE. Part #: 826691-B21. Specs:-. :: Type: Storage drive cage enclosure. :: Description: HP DL38X Gen10 SFF Box1/2 Cage/Backplane Kit…
Dell 6-way Backplane Board for PowerEdge R710 Servers DPN: Y373J,0Y373J. Brand: Dell. Part #: Y373J,0Y373J. Specs:-. :: Type: Server Backplane Board. :: Form Factor: 3.5 Inch. :: No. of Drives: 6. Compatibility: :: Dell…
HP 3.5inch 4-bay Large Form Factor (LFF) Hard Drive Backplane for HP ProLiant DL160 G8, DL360E G8 and DL360P G8 servers (HDD BP only, no cage included) HPN: 667869-001. Brand: HP. Part #:667869-001. Alt. Part #…
HP SAS / SATA HDD Backplane for 3.5 inch (LFF) Large Form Factor 12-bay for HP DL180 G6 / StorageWorks X1600 Servers Part #: 507304-001. Brand: HP. Part #: 507304-001. Specs:-. :: Type: Server Backplane. :: Application…

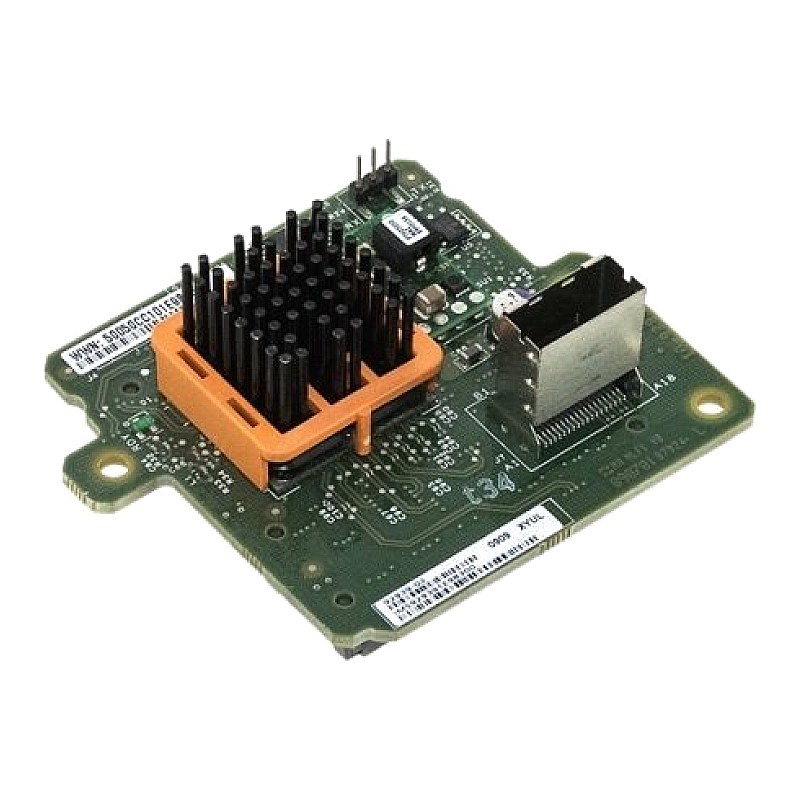

IBM Xyratex Expander module for IBM / Supermicro Server Backplane Part #: 92939-02. Brand: IBM. Part #: 92939-02. Specs:-. :: Type: SAS Expander Module. :: Description: Xyratex SAS backplane for HS1235E. Compatibility…
Sun 6-Slot Disk Backplane for T3-2 T4-2 T5-2 X2-4 X4470 M2 Oracle Part #: 511-1246,7039459. Brand: Sun Oracle. Part #: 511-1246,7039459. Specs:-. :: Type: System Specific Hard Drive Backplanes. :: Description: Sun…
Sun/Oracle SPARC T4-2 Server Memory Riser Board Assembly Oracle Part #: 7051516. Brand: Sun / Oracle. Part #: 7051516. Specs:-. :: Type: Memory Riser Boards. :: Description: Sun Oracle SPARC T4-2 Server DIMM Memory…

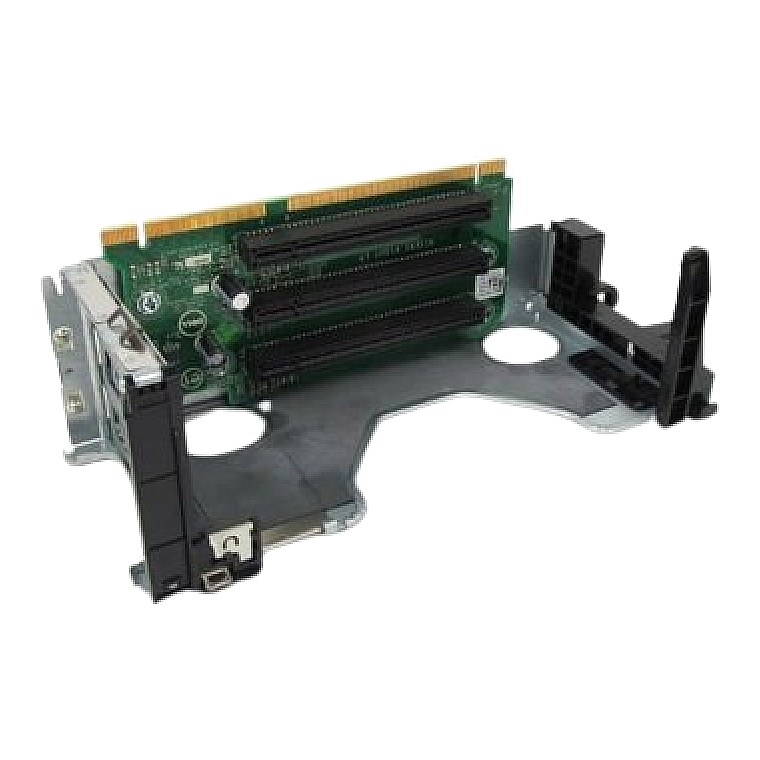

Dell Riser1 Board (Card) for PowerEdge R730 R730XD 3-Slots PCI-E X8 DPN: 4KKCY,8H6JW,04KKCY,08H6JW, 330-BBCR. Brand: Dell. Part #: 4KKCY,8H6JW,04KKCY,08H6JW, 330-BBCR. Specs:-. :: Type: Server Riser Boards…
Dell PCI-e #2 Riser Card 8-Slot for PowerEdge R730 / R730xd Servers DPN: 392WG,0392WG,330-BBCO. Brand: Dell. Part #: 392WG,0392WG,330-BBCO. Specs:-. :: Type: Server Riser Boards. Compatibility: :: Dell PowerEdge R730…

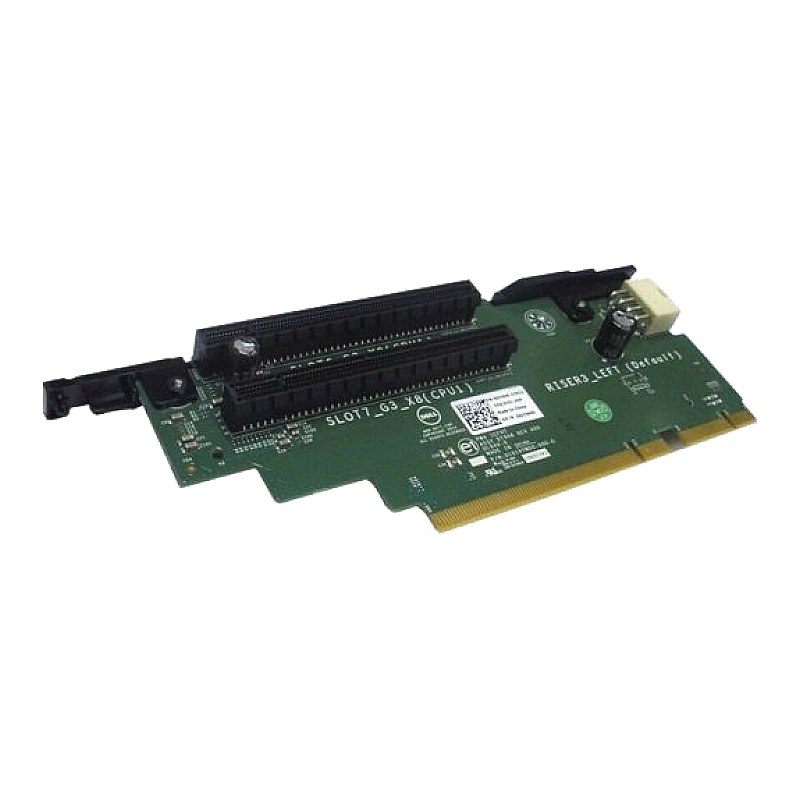

Dell PowerEdge R730 PCI Riser 3 Card Two x8 Slot Left DPN: DT9H6, 0DT9H6,330-BBCQ. Brand: Dell. Dell Part #(s): DT9H6, 0DT9H6,330-BBCQ. Specs:-. :: Type: Server Riser Boards. :: Full Height Left Slot. :: Slot 6 x8…

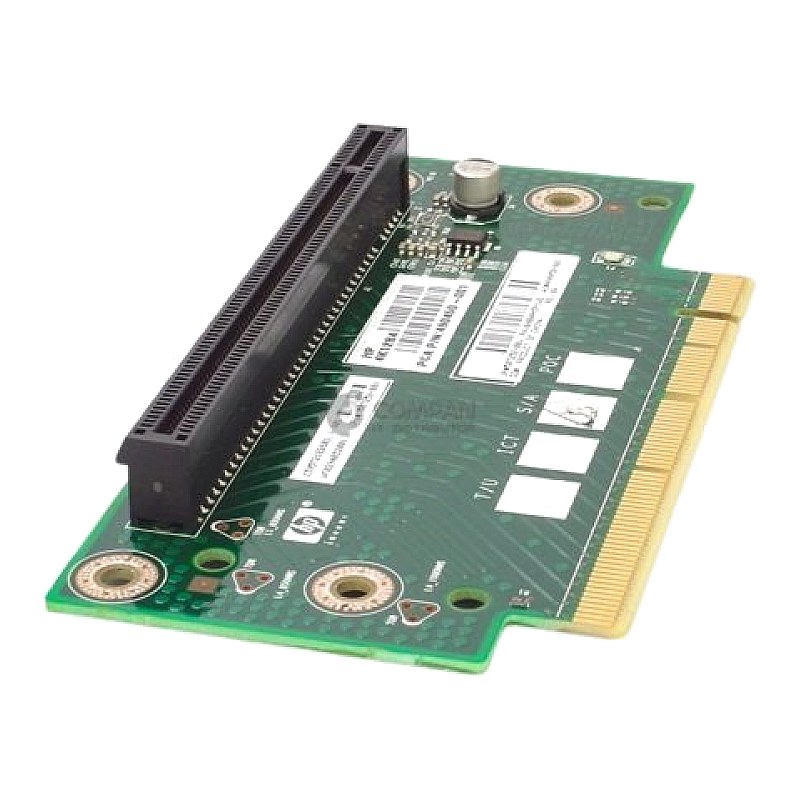

HP PCI-Express x16 Riser Card for ProLiant DL180 G6 / P4300 G2 Servers HPN: 507258-001. Brand: HP. Part #: 507258-001. Specs:-. :: Type: Riser Cards. Compatibility: :: Hp ProlLiant DL180 G6. ::Hp ProlLiant P4300 G2…

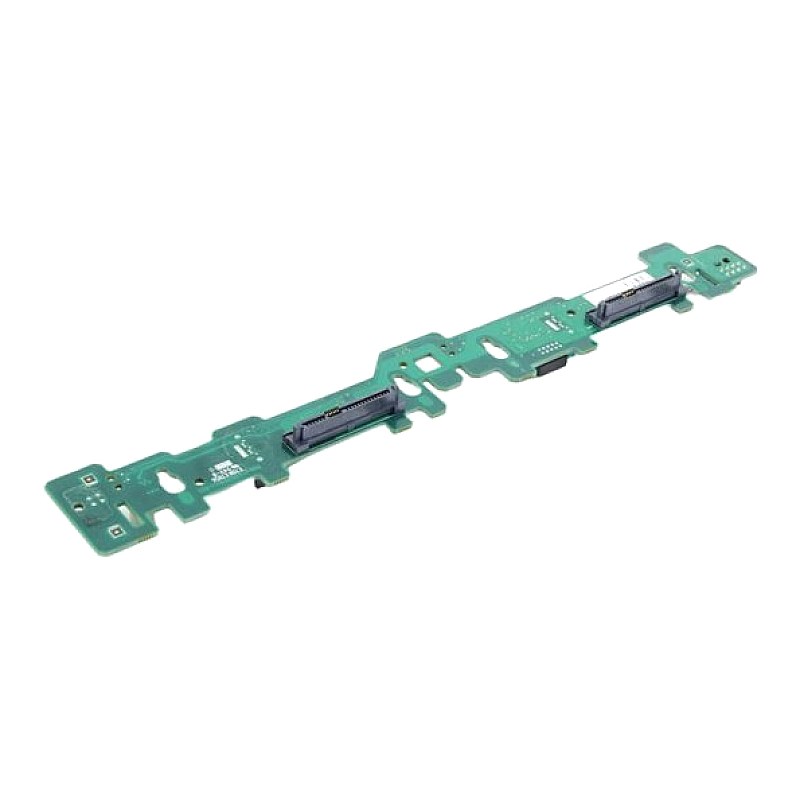

Fujitsu Primergy RX100 S6 3.5 Inch HDD Backplane Board Part #: S26361-D2877-A10-1. Brand: Fujitsu Siemens. Part #: S26361-D2877-A10-1. Specs:-. :: Type: Server backplane. :: Form Factor: 3.5 Inch. :: No. of drives: 2 x…
Dell 10 X 2.5-inch Hard Drive Backplane Expander Module Kit for PowerEdge R620 Servers DPN: 0Y028W,Y028W. Brand: Dell. Part #: 0Y028W,Y028W. Specs:-. :: Type: Server Backplane Boards. :: Description: 10 X 2.5-inch Hard…

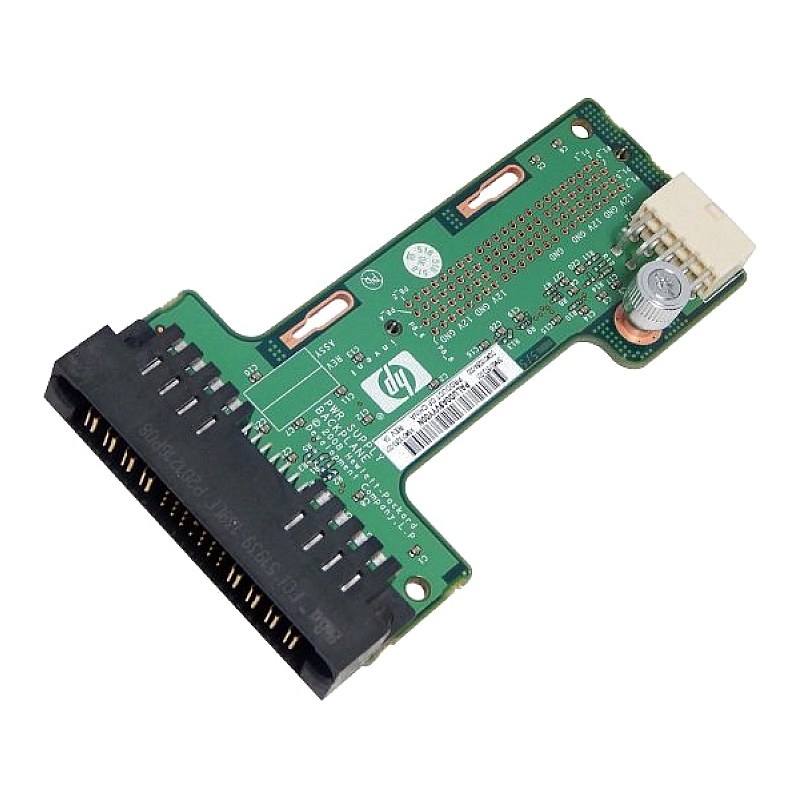

HP Power Supply Backplane Board for ProLiant DL585 G5 G6 HPN: 501572-001. Brand: HP. Part #: 501572-001, 013263-001. Specs:-. :: Type: Server Power Supply Backplane. Compatibility: :: ProLiant DL585 G5. :: ProLiant…
Dell PowerEdge R720XD 1x24 2.5" SATA SAS Hard Drive Backplane DPN: VF0XJ,0VF0XJ. Brand: Dell. Part #: VF0XJ,0VF0XJ. Specs:-. :: Bay size: 2.5 inch Small Form Factor (SFF). :: Bay quantity: 24 bays. :: Supports 24 x 2.5"…

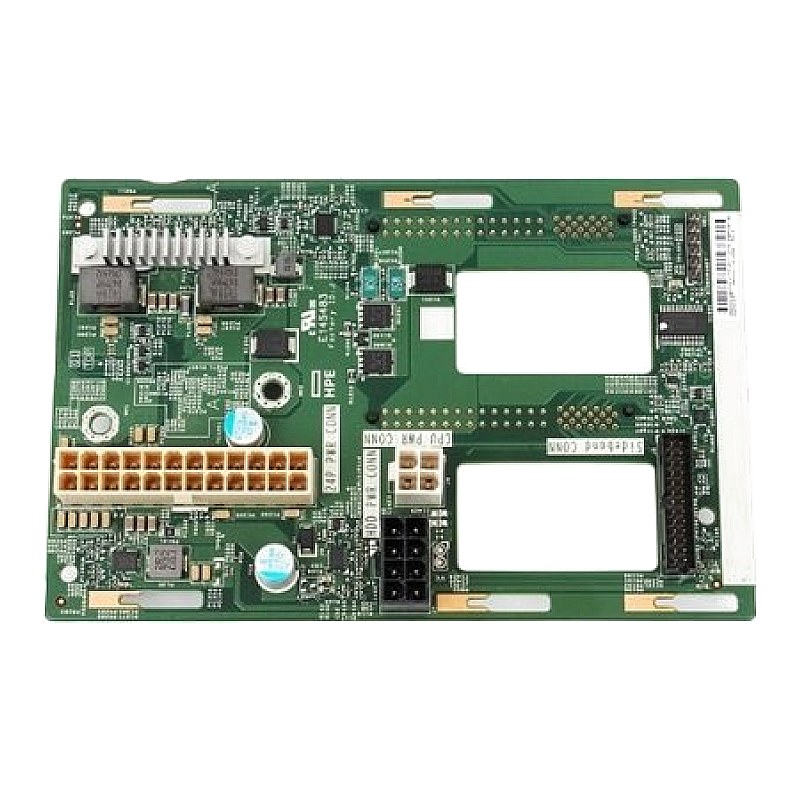

HP Power Distribution Board (PDB) HPN: P07479-001. Brand: HPE. Part #: P07479-001. Specs:-. :: Type: Power Distribution Board. Compatibility: :: HP Enterprise ML30 G10 Tower Servers. Condition: New. Warranty: 1 (one)…

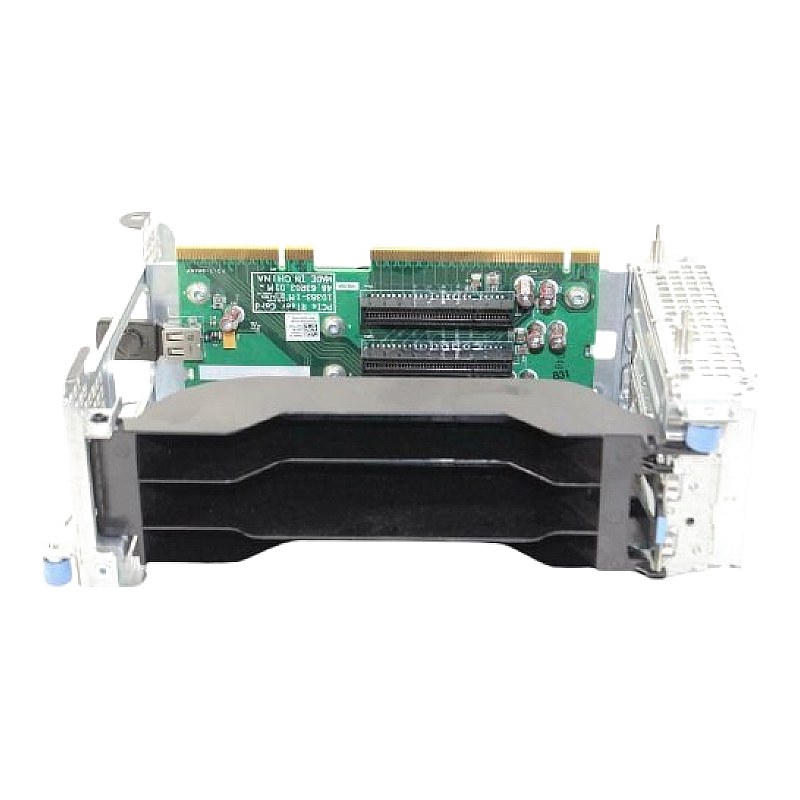

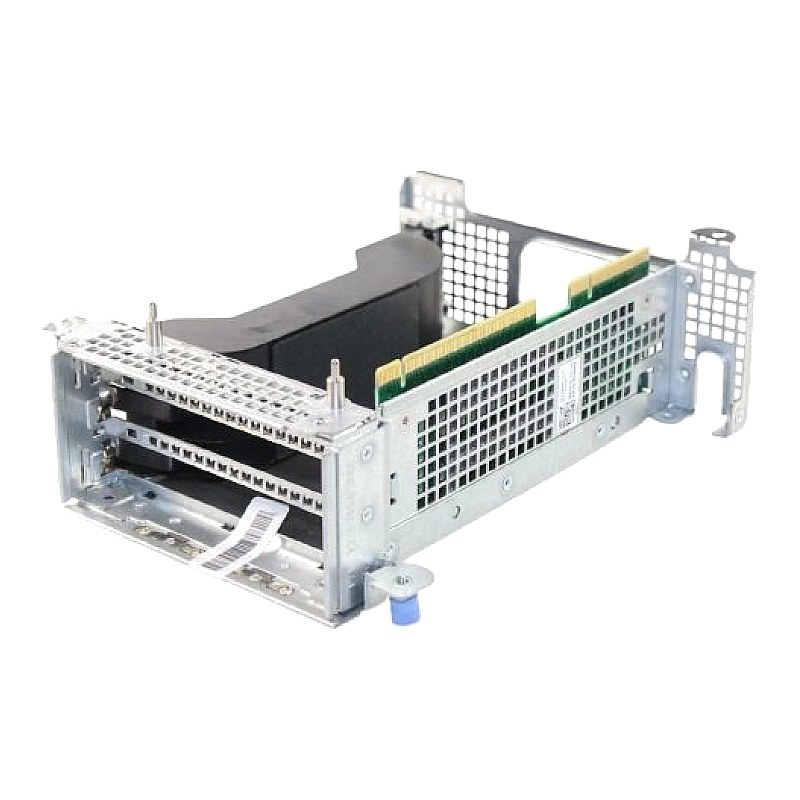

Dell EqualLogic FS7610 PCI-E Riser Card 3-Slot With Bracket DPN:9TT68 09TT68. Brand: Dell. Part Number: 9TT68. MPN: 9TT68 09TT68 CN-09TT68. Specs: :: Type: PCI-E Riser Card. ::Form Factor:PCI. Compatibility: :: Product…

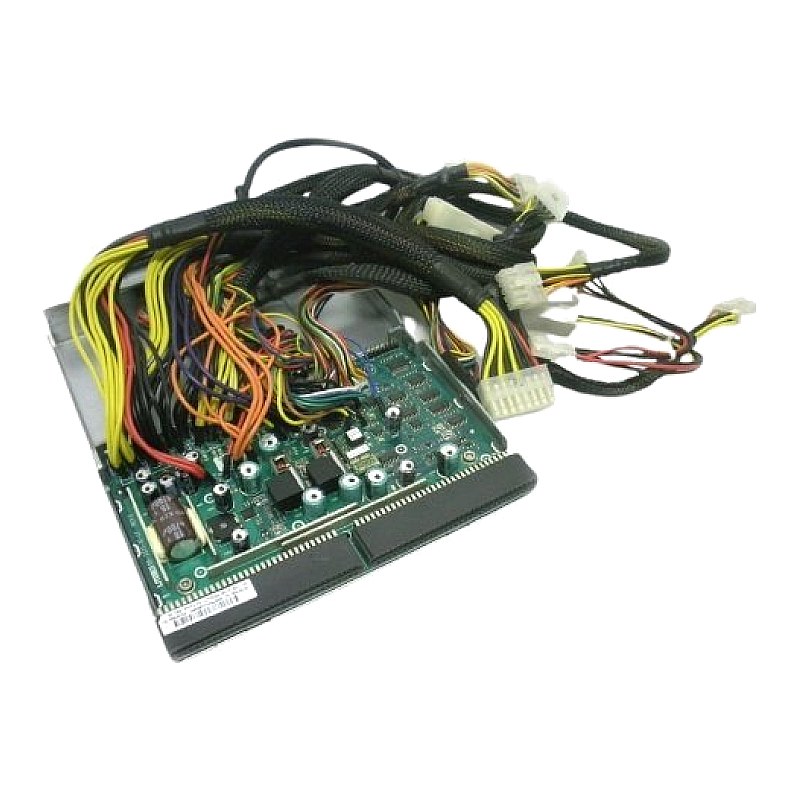

HP Power Supply Backplane Board For Proliant ML370 G6 HPN: 491836-001, 467999-001. Brand: HP. Part #: 491836-001, 467999-001. Specs:-. :: Type: Power Supply Backplane Board. Compatibility: :: HP Proliant ML370 G6…
HP Power Supply Backplane Board For Proliant Dl380/385 G8 HPN: 662528-001,627726-001. Brand: HP. Part #: 662528-001. Specs:-. :: Type : Backplane Board. :: Product: Power Backplane Board. :: Attributes: ( 2 ) Dual Power…
