Backplanes | Midplanes | Risers
A **backplane** is an electronic circuit board containing circuitry and sockets into which additional electronic devices on other circuit boards or cards can be plugged; in a computer, generally synonymous with or part of the motherboard.Backplanes are essential pieces of equipment for your configuration. They provide extra circuitry and sockets for multiple electronic devices to connect with other boards or for other devices to be plugged, including networking cards, hard drives, and more. Backplanes/midplanes connect boards together, and distribute power and data between the connected parts Midplanes are often used in computers, mostly in blade servers, where server blades reside on one side and the peripheral (power, networking, and other I/O) and service modules reside on the other. Midplanes are also popular in networking and telecommunications equipment where one side of the chassis accepts system processing cards and the other side of the chassis accepts network interface cards. Alternatively, a **Riser Card** is an expansion card that is used to extend a slot for an I/O card in a fully loaded computer to make room to plug it in. It may also refer to a card that contains several slots used in low-profile, space-saving enclosure. **The I/O cards are plugged into the riser card and reside parallel with the motherboard.** Tekmart stocks several kinds of backplanes or midplanes for sale, compatible with various systems and brands, for example SCSI backplanes, disc backplanes, power distribution boards, midplane board assemblies, logic centerplanes, and so on. We have backplanes and midplanes from SUN, IBM, Dell, and many more. Contact us at **[support@tekmart.co.za](mailto:support@tekmart.co.za?subject=Query%3A%20Backplane%20and%20midplanes%20boards)** or on **0861 711 712** (within RSA) or **+2711 027 6793** (international) for your backplane/midplane/riser replacement parts requirement(s) for your server and our consultants will gladly assist you. **Figur
Dell 3-Slots PCI-E X8 Riser1 Card for PowerEdge R730 R730XD DPN: 4KKCY, 8H6JW, 04KKCY, 08H6JW. Brand: Dell. Part #: 4KKCY, 8H6JW, 04KKCY, 08H6JW. Specs:-. :: Type: 3 x Vertical PCI-E slots. Compatibility: :: This riser…
IBM X3650 M4 Power Paddle Card Upper Board FRU(s): 69Y5787 69Y5790 69Y5789. Brand: IBM. Part #: 69Y5787, 69Y5790, 69Y5789. Compatibility: IBM X3650 M4 Server. Condition: Refurbished. Warranty: 1 (one) year Tekmart…
IBM Riser Card 1 Rear Right Bracket for System X3650 M4 FRU: 00D3009. Brand: IBM. Part #: 00D3009, 94Y6704. Compatibility: IBM System X3650 M4. Storwize V7000 Unified. Condition: Refurbished. Warranty: 1 (one) year…
Dell PowerEdge 2950 / 2970 Sideplane Riser Board DPN: 07W84,007W84. Brand: Dell. Part #: 07W84, 007W84. Compatibility: Dell PowerEdge 2950 / 2970 Servers. Condition: New. Warranty: 1 (one) year Tekmart warranty. Key…
Dell PowerEdge R710 Backplane Board for 2.5" Drives DPN: MX827,0MX827. Brand: Dell. Part #: MX827,0MX827. Specs:-. Type: Backplane Board. Form Factor: 2.5 Inch Drives. No. Of Drives: 8. Compatibility: Dell PowerEdge…
Dell Poweredge R910 1x4 SAS Backplane Part #(s): P989H T466H. Brand: Dell. Part # (s): Dell Part # : T466H, 0T466H. Power Board Part #: P989H. Compatibility: Dell Poweredge R910. Condition: Manufacturer refurbished…
Dell PowerEdge 2850 1x6 SCSI Hard Drive Backplane Board DPN: KJ881,0KJ881. Brand: Dell. Part #: KJ881, 0KJ881. Compatibility: Dell PowerEdge 2850 Server. Condition: Refurbished. Warranty: 1 (one) year Tekmart warranty…
Dell PowerEdge 2850 PCI Express Riser Board DPN: KJ880. Brand: Dell. Part #: KJ880, 0KJ880. Compatibility: Dell PowerEdge 2850 servers. Condition: Refurbished. Warranty: 1 (one) year Tekmart warranty. Key points to note…
Dell PowerEdge R310 PCIE X8 Riser Board DPN: K511K, 0K511K. Brand: Dell. Part #: K511K, 0K511K. Specs:-. Type: Riser Card. Interface: PCIE. Compatibility: Dell PowerEdge R310. Condition: Refurbished. Warranty: 1 (one)…
HPE Optional Primary Riser Board / Card for ProLiant DL380 / DL388 / DL560 Gen9 HPN: 777282-001. Brand: HPE. Part #: 777282-001, 729806-001,719076-B21. Specs:-. Type: Riser Card. Interface: Pci-E. Slots: 1x PCI-E Gen3…
HPE Secondary Riser Board / Card for ProLiant DL380 Gen9 HPN: 777283-001 / 768343-001. Brand: HPE. Part #: 777283-001,768343-001. Specs:-. Type: Riser Cards. Interface: Pci-E. Slots: 2x PCI-E Gen3 x16. 1x PCI-E Gen3 x8…
HP Expansion Slot Riser Board for ProLiant DL380 G6 / G7 HPN: 496057-001. Brand: HP. Part #: 496057-001. Alt. Part #: 451278-001,500579-B21. Specs:-. Type: Riser Card / Board. Interface: Pci-E. No. of Slots: 3…
Dell PCI Express X8 Riser Card for PowerEdge R310 DPN:0N357K. Brand: Dell. Part #: 0N357K, CN-0K511K, 0K511K, K511K, N357K, CN-0N357K. Specs:-. Type: Riser Board. Board P/N: 01013L000-000-G. Interface: PCI-E x8. Ports…
Dell PowerEdge R420 PCIe Riser #1 Card DPN: 7KMJ7, 07KMJ7. Brand: Dell. Part #: 7KMJ7, 07KMJ7. Specs:-. Installation Slots: Slot 1 3.0 PCIe x16. Compatibility: PowerEdge R420. Condirion: New. Warranty: 1 (one) year…
Dell PowerEdge FC630 M630 SPI Riser Card DPN: 3J4K6,03J4K6. Brand: Dell. Part #:3J4K6, 03J4K6. Compatibility: Dell PowerEdge Blades:-. FC630. FC830. M630. M830. Condition: New. Warranty: 2 (two) year Tekmart replacement…
Dell OEM PowerEdge R520 Riser Board DPN: 08P5T1 8P5T1. Brand: Dell. Part #: 08P5T1 8P5T1 CN-08P5T1. Specs:-. Type: Riser Card. Socket Type: Slot 1. Compatibility: Dell PowerEdge R520. Condition: New. Warranty: 1 (one)…
Dell PowerEdge R920 Memory Riser DPN: 0XKF54, XKF54. Brand: Dell. Part #: Dell Part Number: 0XKF54 XKF54. Specs: :: Form Factor: DIMM. :: Socket Type: R. :: Memory Slotts: 12 x DIMM Slots. :: Memory Type: DDR3 SDRAM…
Supermicro 2U SAS2 Backplane x24 2.5in HDD Part #: BPN-SAS2-216EL2. This is a genuine 24-port SAS/SATA hard drive backplane with dual 6Gb/s SAS2 Expanders for server chassis SC216E26 & SC417E26 and support up to 24x…
Dell PowerEdge R530 Server Riser Card & Bracket Slot 2 PCIe X16 DPN: KGP90. Brand: Dell. Part #: KGP90, 0KGP90. Specs:-. Type: Riser Card. Socket Type: Type 2. Compatibility: Dell R530 servers. Condition: Manufacturer…
Dell PowerEdge 6800 / 6850 1x10 SCSI Hard Drive Backplane Board V2 Part #: UH918. This is a genuine OEM Dell SCSI Backplane V2 PowerEdge 6800 6850 DPN: UH918. Brand: Dell. Part #: UH918,0UH918. Alt. Part #: JG575 T2063…
Dell PowerEdge R710 PCI-E x16 Riser Card Board Part #: GP347 0GP347CN-0GP347. This is a genuine OEM Dell PCI-E X16 Riser Card for PowerEdge R710 NX3000 DPN: GP347. Brand: Dell. Part Number: GP347. Alt. Part #: 0GP347…
HP ProLiant DL160 G6 3.5 4-Bay SAS-SATA Backplane Board HPN: 535348-001. Brand: HP. Part #: 535348-001. Type: Backplane. Interface: SAS. Compatibility: HP Proliant DL160 G6 1U drive cages HPN: 532114-001. Condition…
Dell PowerEdge C8220X Server Front GPGPU Riser Board DPN: YK8R5. This is a genuine Front GPGPU Riser Board for the Dell PowerEdge C8220X Server systems. Brand: Dell. Part #: YK8R5,0YK8R5, 0FVXWX, CN-0FVXWX. Specs…

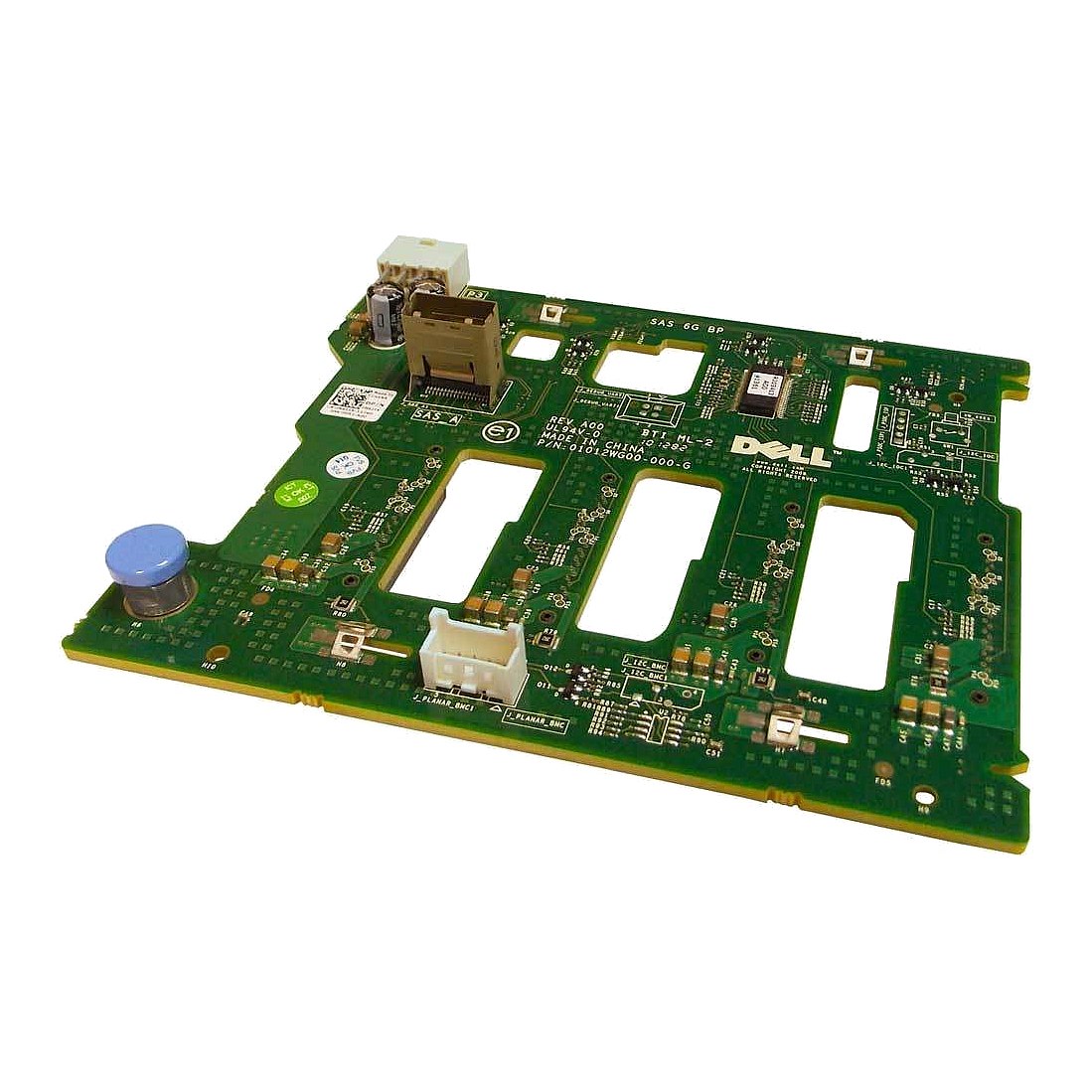

Dell OEM PowerEdge T310 4x3.5" Hard Drive Backplane Board DPN: N621K, 0N621K. This is a Dell PowerEdge T310 SAS SATA 1x4 Hard Drive Hot-Swap Backplane with Part #: N621K,0N621K. Brand: Dell. Part #: N621K,0N621K…
