Backplanes | Midplanes | Risers
A **backplane** is an electronic circuit board containing circuitry and sockets into which additional electronic devices on other circuit boards or cards can be plugged; in a computer, generally synonymous with or part of the motherboard.Backplanes are essential pieces of equipment for your configuration. They provide extra circuitry and sockets for multiple electronic devices to connect with other boards or for other devices to be plugged, including networking cards, hard drives, and more. Backplanes/midplanes connect boards together, and distribute power and data between the connected parts Midplanes are often used in computers, mostly in blade servers, where server blades reside on one side and the peripheral (power, networking, and other I/O) and service modules reside on the other. Midplanes are also popular in networking and telecommunications equipment where one side of the chassis accepts system processing cards and the other side of the chassis accepts network interface cards. Alternatively, a **Riser Card** is an expansion card that is used to extend a slot for an I/O card in a fully loaded computer to make room to plug it in. It may also refer to a card that contains several slots used in low-profile, space-saving enclosure. **The I/O cards are plugged into the riser card and reside parallel with the motherboard.** Tekmart stocks several kinds of backplanes or midplanes for sale, compatible with various systems and brands, for example SCSI backplanes, disc backplanes, power distribution boards, midplane board assemblies, logic centerplanes, and so on. We have backplanes and midplanes from SUN, IBM, Dell, and many more. Contact us at **[support@tekmart.co.za](mailto:support@tekmart.co.za?subject=Query%3A%20Backplane%20and%20midplanes%20boards)** or on **0861 711 712** (within RSA) or **+2711 027 6793** (international) for your backplane/midplane/riser replacement parts requirement(s) for your server and our consultants will gladly assist you. **Figur
Dell PowerEdge R920 Expansion PCIe Riser Board - NDC NIC Connector - 8PX9W. This is a genuine Dell PowerEdge R920 Expansion PCIe Riser Board - NDC NIC Connector. Brand: Dell. Compatibility: PowerEdge R920/R930. Includes…
Dell PowerEdge 1850 1x2 SCSI Hard Drive Backplane Board - GJ870. Genuine Dell original 1x2 SCSI Hard Drive Backplane Board for the Dell PowerEdge 1850 Server systems. Compatible Dell Server Systems: PowerEdge 1850…
Dell PowerEdge 1800 1 x 6 SCSI Backplane Board DPN:Y2429,0Y2429. This is a Genuine Dell original 1 x 6 SCSI Backplane Board for the Dell PowerEdge 1800 Server systems. Compatible Dell Server Systems: PowerEdge Server…
Dell PowerEdge R230 / R330 Server R23 / R33 Butterfly Riser DPN: 593D8,0593D8. This is a Genuine Dell original R230 / R330 Butterfly Riser for select Dell PowerEdge R230 / R330 Server systems. Compatible Dell Server…
Fujitsu PCIe x8 Riser Card f/ Primergy RX100 S6 Part #: S26361-E402-A10. Brand: Fujitsu. Part #: S26361-E402-A10. Condition: Refurbished. Compatibility: Fujitsu Primergy RX100 S6. Warranty: 90-day 1 (one) year Tekmart…
HP 6-BAY SCSI Backplane Board Proliant for DL380 Generation 2. Product description: This is a genuine HP 228502-001 Compaq SCSI BACKPLANE BOARD FOR DL380 G2/-- Internal (228502001). Product Details: Manufacturer: HP…
Supermicro Riser Card Part #: RSC-R2UG-2E16. This is a Supermicro RSC-R2UG-2E16-X9 Left Hand Slot Passive PCI-E 2U Riser Card. Mfg. Part Number: Supermicro RSC-R2UG-2E16-X9. Category: GPU. :: Form Factor: 2U. :: Slot…
NEC 5337125-001 POWERMATE 466D RISER CARD PART #: 5337125-001. Brand: Nec. Part #: 5337125-001. Condition: Used. Warranty: 90-day 1 (one) year Tekmart Africa warranty. Product description. NEC 5337125-001 POWERMATE 466D…

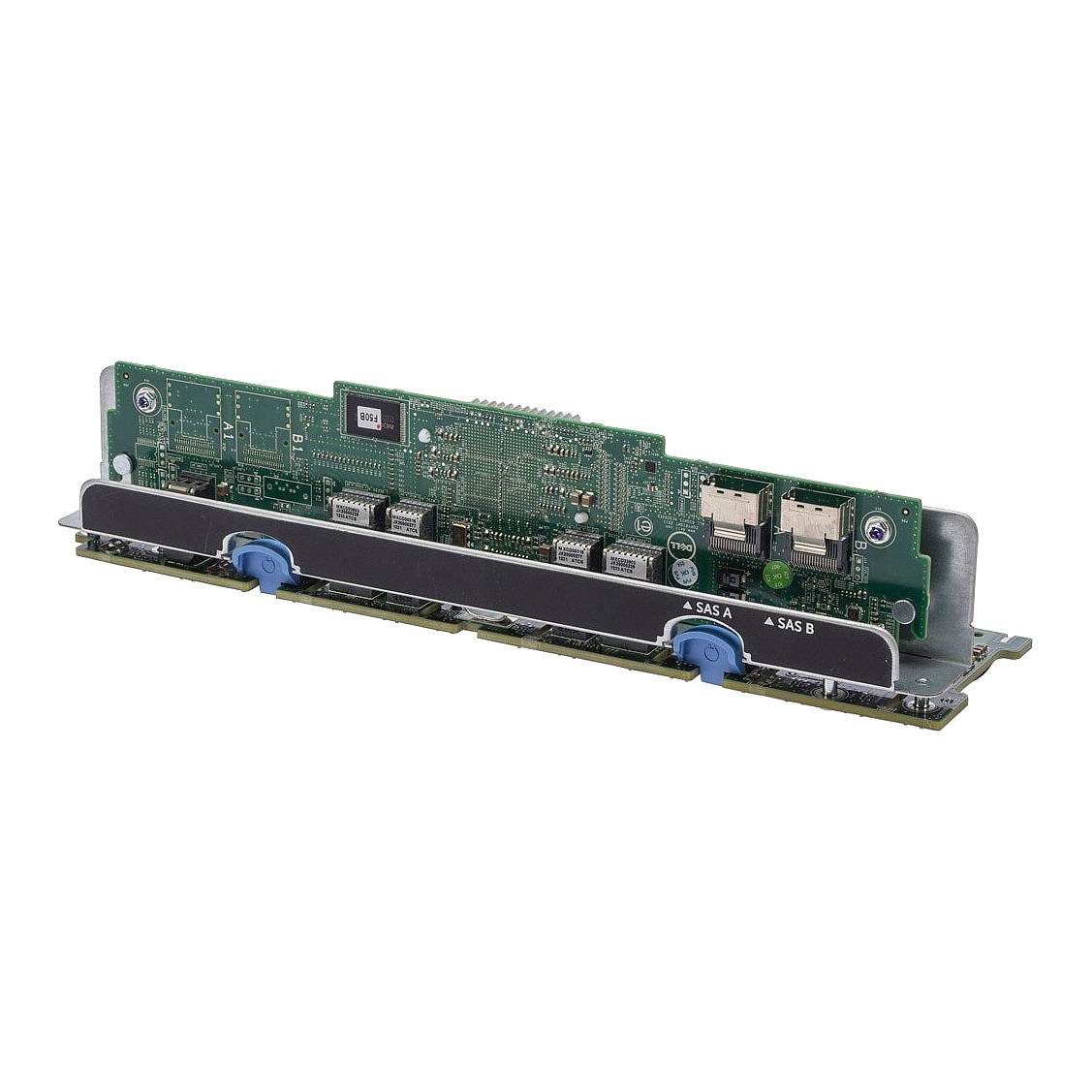

Dell PowerEdge R720 1x16 2.5inch Backplane & Controller Board DPN: 8X25D,08X25D. Brand: Dell. Dell Part #: 8X25D,08X25D. Specs:-. :: Type: Server controller boards. :: Supports 16 X 2.5" Hard Drives. Compatibility…
Dell PowerEdge R710 & NX3000 4 Bay 3.5" Backplane DPN: C389D,0C389D. Brand: Dell. Model: Type 4 Bay 3.5" Backplane. Compatibility: PowerEdge. Speed: N/a. Internal Interface: SAS/SATA. External Interface: 4X SAS…
Dell PowerEdge R710 Server 6 X 3.5" HDD SAS SATA Backplane Card DPN: W814D,0W814D. Brand: Dell. Part Number: W814D,0W814D. Specs:-. :: Type: Server Backplanes. :: Description: Dell PowerEdge R710 Server 6 X 3.5" HDD SAS…
IBM X3550 M3 SAS Backplane Board 2.5 Inches FRU: 59Y3915. Brand: IBM. Fru number: 59Y3915. Specs:-. :: Type: Server Backplane Board. :: Interface: 4x SAS. Compatibily: :: IBM X3550 m3. Condition: Manufacturer…
IBM 675 Watt AC Power Supply Riser Interposer Card For x3690 X5 FRU: 49Y5284 49Y5280. IBM FRU: 49Y5284. Type: AC Power Supply Riser Interposer Card. Max Power supply: 675 Watt. Compatible System: x3690 X5. Condition…
Dell PowerEdge T610 Power Supply Backplane Board DPN: MN10F,0MN10F. Manufacturer: Dell. Dell Part Number: MN10F 0MN10F CN-0MN10F. Compatible Models: Dell PowerEdge T610. Type: Power Distribution Board. Product…
IBM 40K6552 System x3650 2.5" SAS Backplane. This is an IBM 40K6552 System x3650 2.5" SAS Hard Drive Backplane Board. Brand: IBM. Part: 40K6552. Condition: Used. Warranty: 90-day Tekmart warranty

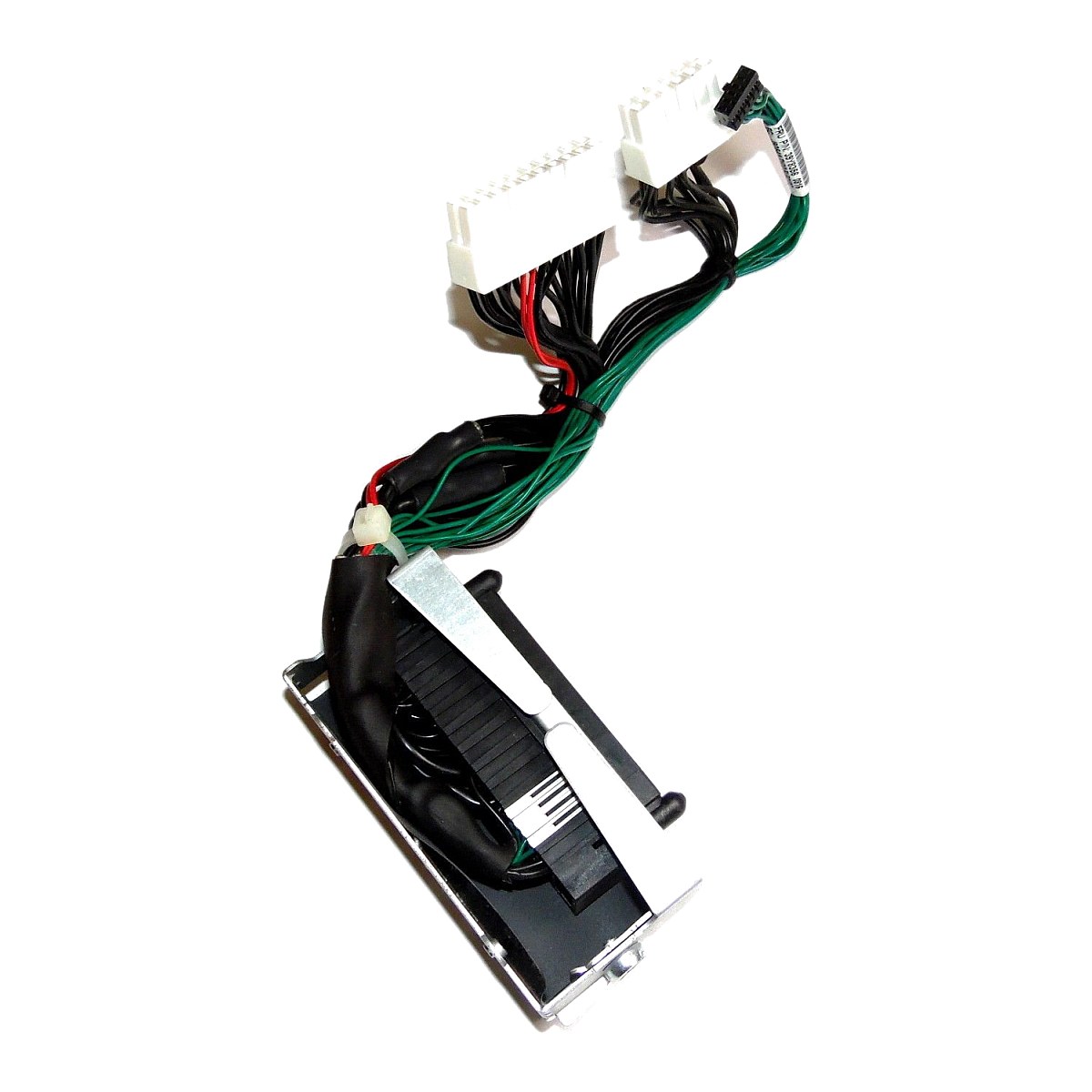

IBM 44E7523 System X3400 Power Supply Interposer | FRU 39Y8356. Brand: IBM. Part #: 44E7523. FRU: 39Y8356. Condition: Used. Warranty: 90-day Tekmart warranty. Compatibility: System x3400
IBM 24R2732 X3650 7979 Power Supply Backplane - FRU 24R2733. Brand: IBM. MPN: 24R2732. FRU: 24R2733. Type: Power Supply Backplane. PSU Port Count: 2. Condition: Used. Warranty: 90-day Tekmart warranty.
IBM x3850 M2 x3950 M2 SAS Backplane Board FRU: 44W2727 44W2728. Brand: IBM. MPN: 44W2727. FRU: 44W2728. Type: SAS SFF 2.5" Hard Disk Backplane. HDD Port Count: 4. Compatibility. System x3850 M2. System x3950 M2
IBM CD - ROM Interposer Board 05303-1 eServer xSeries 306m 3250 FRU: 39M4354. Brand: IBM. Part #: 39M4354. Compatibility: IBM 306M, IBM X3250. Condition: Refurbished
DELL I/O RISER BOARD 10GB FOR DELL POWEREDGE R910 DPN: 7V2RN,07V2RN. Dell PE 910 Riser Board 10GB V2 W/MZR 7V2RN DELL. Brand: Dell. Part Number: 7V2RN. Condition: Refurbished. Warranty: 90-day 1 (one) year Tekmart…
Dell FMY1T Quad Ethernet PCIe x16 I/O Riser Board for Dell Poweredge R910SpecificationsBrand: Dell. Part Number: FMY1T, 0FMY1T. Bracket Size: High Profile. Type: Wired. Output: Quad Ethernet. Warranty: 90 Days 1 (one)…
HP 412736-001 8x1 SAS/SATA Backplane board for DL380 G5, ML370 G4, DL385 G2Brand: HP. Model: 8x1 SAS/SATA Backplane board. HP Part Number: 012531-001, 412736-001, 407751-001. Device Type: Backplane board. Compatible…
Dell/ EMC2 303-126-000A 15-Port FC 3.5" Hard Disk Drive Backpane Board For SAN Arrays. Condition: Used, new pull. Tested. Compatible with the following: Dell. Codes and Manufacturer Data. Brand - EMC2. Part Number…
HP Proliant DL380p (643705-001) 8-Bay SAS HDD Backplane Board with Cable Part #: 660709-001. Brand: HP. Part Number: 643705-001. Specs:-. :: 8-Bay SAS HDD Backplane Board Part #:643705-001. :: Cable Part #: 660709-001…
