Backplanes | Midplanes | Risers
A **backplane** is an electronic circuit board containing circuitry and sockets into which additional electronic devices on other circuit boards or cards can be plugged; in a computer, generally synonymous with or part of the motherboard.Backplanes are essential pieces of equipment for your configuration. They provide extra circuitry and sockets for multiple electronic devices to connect with other boards or for other devices to be plugged, including networking cards, hard drives, and more. Backplanes/midplanes connect boards together, and distribute power and data between the connected parts Midplanes are often used in computers, mostly in blade servers, where server blades reside on one side and the peripheral (power, networking, and other I/O) and service modules reside on the other. Midplanes are also popular in networking and telecommunications equipment where one side of the chassis accepts system processing cards and the other side of the chassis accepts network interface cards. Alternatively, a **Riser Card** is an expansion card that is used to extend a slot for an I/O card in a fully loaded computer to make room to plug it in. It may also refer to a card that contains several slots used in low-profile, space-saving enclosure. **The I/O cards are plugged into the riser card and reside parallel with the motherboard.** Tekmart stocks several kinds of backplanes or midplanes for sale, compatible with various systems and brands, for example SCSI backplanes, disc backplanes, power distribution boards, midplane board assemblies, logic centerplanes, and so on. We have backplanes and midplanes from SUN, IBM, Dell, and many more. Contact us at **[support@tekmart.co.za](mailto:support@tekmart.co.za?subject=Query%3A%20Backplane%20and%20midplanes%20boards)** or on **0861 711 712** (within RSA) or **+2711 027 6793** (international) for your backplane/midplane/riser replacement parts requirement(s) for your server and our consultants will gladly assist you. **Figur
HP DL380 G6 G7 Server 8 Bay 2.5” SAS Hard Drive Backplane HPN: 507690-001, 451283-002. Brand: HP. MPN: 451283-002. Compatible System Model: DL380 G6 G7 Servers. Type: Hard Drive Backplane. Condition: New, open box…
HP PROLIANT DL380 G5 PCI-E RISER CARD W/ CAGE HPN: 408788-001 ,012755-000. Brand : HP. Part #: : 408788-001 012754-001 012755-000. Model : Proliant DL380 G5 DL385 G5. Specs:-. :: Type : Riser Card. :: Short Description…
HP PCI Riser Cage for Proliant DL380 G7 DL385 HPN: 463170-003. This is a genuine HP 463170-003 PCI Riser Cage for Proliant DL380 G7 DL385. Brand: HP. Part Number(s): 463170-003. Condition: Refurbished. Warranty: 90-day…
HP PCI RISER BOARD / CARD FOR HP PROLIANT DL385 G7 - ( 1 ) ONE SLOT 1/4 PCI-E X8 ( 1 ) ONE SLOT 2/5 PCI-E X4 ( 1 ) ONE SLOT 3/6 PCI-E X4 HPN: 533536-001. Item Specifics. Manufacturer: HP. Model: HP PCI-E/X Riser Card…
HP PCI-X RISER CARD FOR HP PROLIANT DL385 G7 - RISER BOARD ( 2 ) TWO PCI-X 64 BIT / 100MHZ SLOTS ( 1 ) ONE PCI-E X8 SLOT HPN: 533537-001,583983-001. Brand: HP. Part #: 533537-001. Spare #: 583983-001. Condition…
HP 532148-001 Primary SFF SAS Hard Drive Backplane Board for ProLiant DL360 G6 G7-No Cables. Brand: HP. Part Number: 532148-001. Condition: Refurbished. Warranty: 90-day 1 (one) year Tekmart warranty. About this HPE…

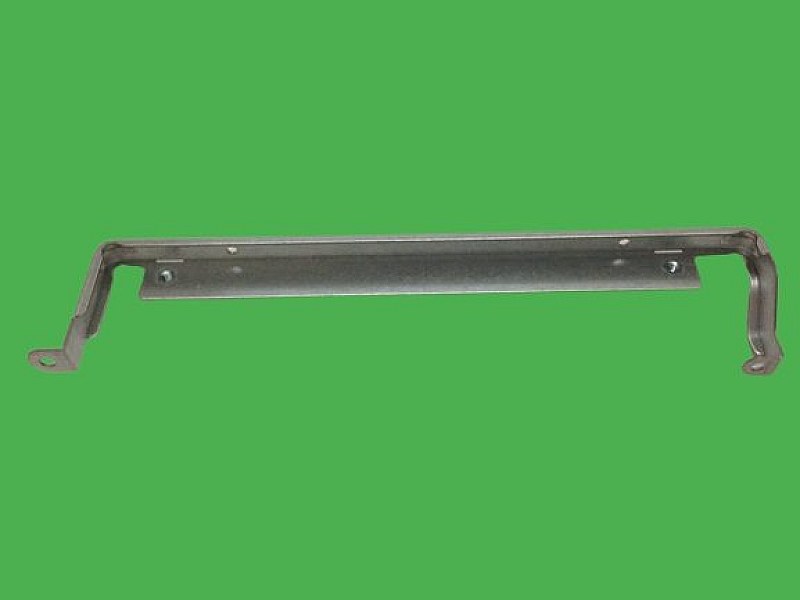

Supermicro Riser card bracket for slot-7 in SC504 Part #: MCP-120-00063-0N. This is a genuine Supermicro MCP-120-00063-0N Riser card bracket for slot-7 in SC504. Product description. Brand: Supermicro. Part #…
IBM XSeries X335 SCSI HDD BackPlane Board- 32P1932. Brand: IBM. IBM XSeries X335 SCSI HDD BackPlane Board. FRU: 32P1932. EC: H23703A. Warranty: 90-day Tekmart warranty. Product description. Condition: Used IBM XSeries…
HP 496062-001 Power supply backplane board. Brand: HP. Power Supply Backplane Board. Fits HP DL380 G6 G7. HP spare number: 496062-001. Product description. HP DL380 G6 G7 Power Supply Backplane Board 496062-001
HP Power Supply Backplane Board for ProLiant Ml350 G6 HPN: 511776-001,591675-001. This is a genuine HP Proliant ML350 G6 PSU BackPlane Board, Part #: 511776-001 461318-001 with a 1 (one) year Tekmart Africa warranty…
Dell PowerEdge 1850 PCI-X Non-RAID Riser Board DPN: Y3939,0Y3939. Brand: Dell. Part Number: Y3939. Specs. :: Non-RAID. :: 2x PCI-X Slots for adapter cards. :: Intrusion Switch. :: Integrated Hard Drive Controller…
Dell PowerVault MD1000 MD3000 MD3000i Midplane Backplane Board DPN: JH544, 0JH544. Brand: Dell. Dell Part Number(s): JH544, 0JH544. Condition: Refurbished. Warranty: 90-day 1 (one) yearTekmart warranty. Used to replace…
Dell PowerEdge R220 R220XL PCI-E x16 Riser Card Part #: 57T4R CN-057T4R 057T4R. Brand: Dell. Part #: 57T4R MPN: 057T4R, CN-057T4R. Specs:-. :: Type: Riser Card. :: Slot: PCI-E x16 Compatible. :: Product Line: PowerEdge…

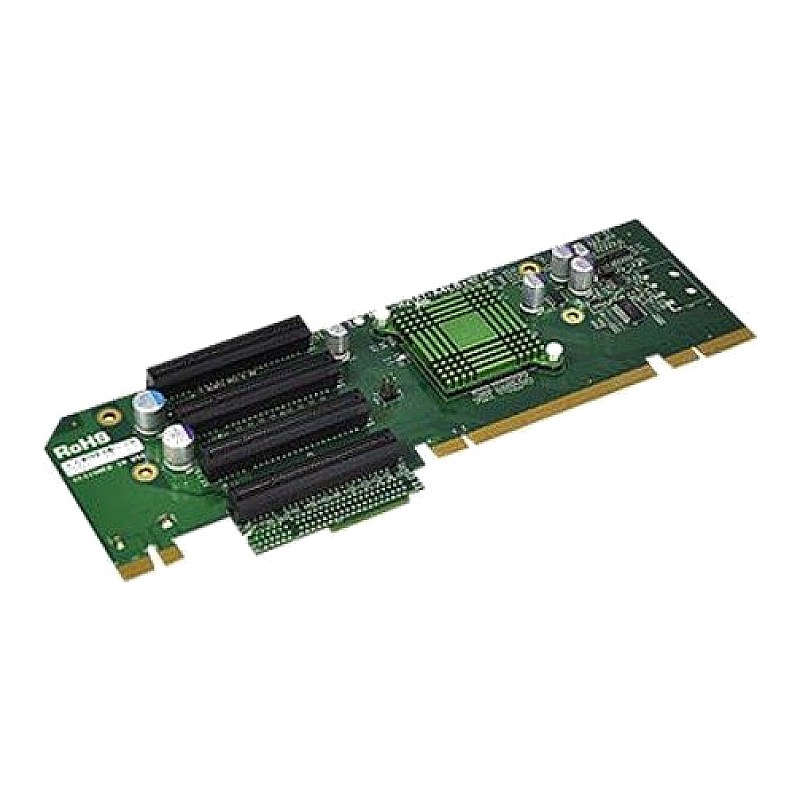

Supermicro RSC-R2UU-UA3E8+ RSC R2UU-UA3E8+ - Riser card - for Supermicro H8DGU, H8DGU-F, H8DGU-LN4F+, A+ Server 2022, SuperServer 6026Description: Supermicro RSC R2UU-UA3E8+ - Riser card - for Supermicro H8DGU, H8DGU-F…
Intel 2U Server Riser Board Part #: FXX2U3VRISER, A46050-402. Intel FXX2U3VRISER 2U Server. Riser Board New A46050-402. 90-day 1 (one) year Tekmart warranty. Product description. Intel FXX2U3VRISER 2U Server Riser Board…
HP SL230s G8 Server Riser Board 651425-001. Brand: HP. HP SL230s G8 Server Riser. Condition: Refurbished. Board 651425-001. 90 day Tekmart warranty. Product description. HP SL230s G8 Server Riser Board 651425-001

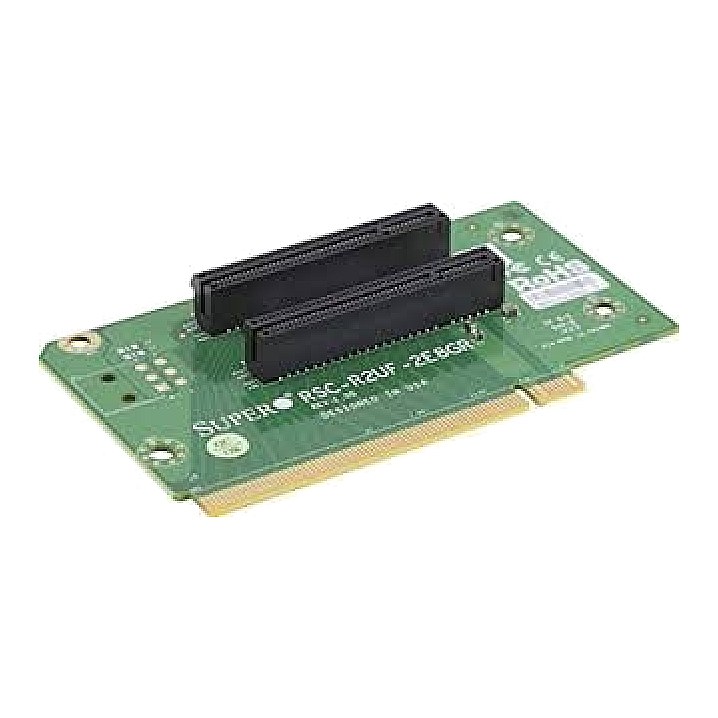

Supermicro RSC-R2UF-2E8GR 2U RHS PCI-Express x16 & PCI-Express x8 Riser Card. Product description. Specifications. Mfr Part Number: RSC-R2UF-2E8GR. Input: 1x PCI-Express 2.0/3.0 x16 Slot. Output: 2x PCI-Express…
Supermicro 2U RISER PASSIVE GEN 2-PCIE X16 TO 2X PCIE X8 Part #: RSC-R2UT-2E8R. Brand: Super Micro. Part #: RSC-R2UT-2E8R. Condition: Refurbished. Warranty: 1 (one) year Tekmart warranty. This is a Supermicro…
Supermicro Riser Card Part #:RSC-RR1U-E16. Brand: Supermicro. Part #: RSC-RR1U-E16. Specs:-. :: Product Name: RSC-RR1U-E16 with Pic-E X16 Output. :: Host Interface: PCI Express x16. :: Product: Riser Card. :: Expansion…

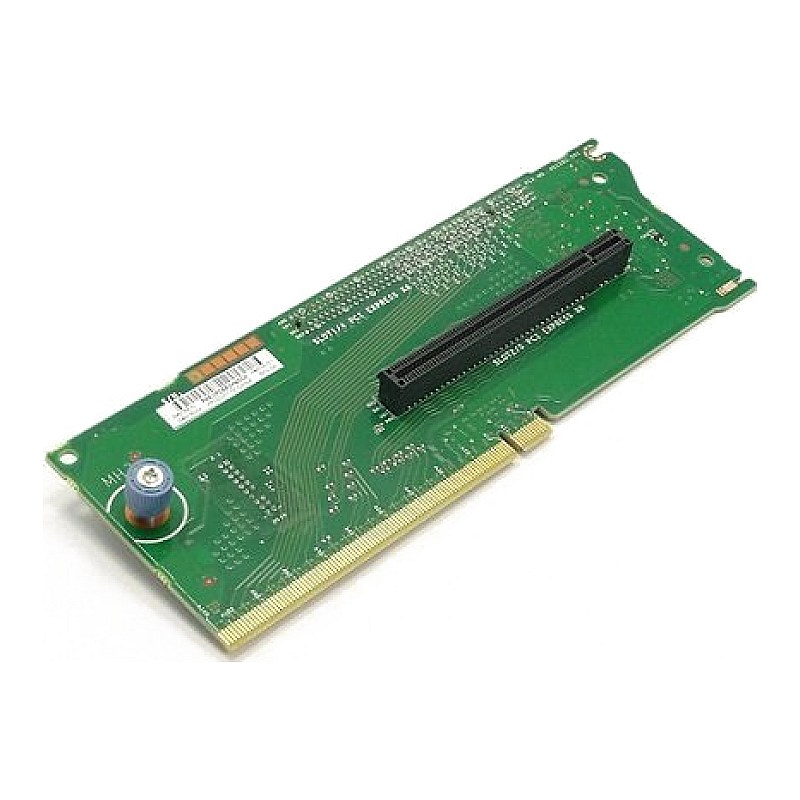

HP PCI two port riser board - Includes two x16 PCIe card slots - Mounts in the PCI card cage HPN: 507688-001. Brand: HP. Part #: 507688-001. Condition: Refurbished. Warranty: 90-day 1 (one) year Tekmart warranty. PCI…
HP RISER BOARD PROLIANT DL380 G8 HPN: 662524-001. This is a genuine HP DL380P G8 3-Slot PCIe Riser Board with Part #: 622219-001 662524-001. Brand: HP. Part #: 662524-001 662524-001. Specs:-. :: Type: Riser Card /…
9HV1C - Backplane SAS/SATA 4x3.5" PowerEdge C1100. Product description. Backplane SAS/SATA 4x3.5" PowerEdge C1100. Part Number: 9HV1C. Brand: Dell. Model Number: PowerEdge C1100. Dell Servers replacement Part…

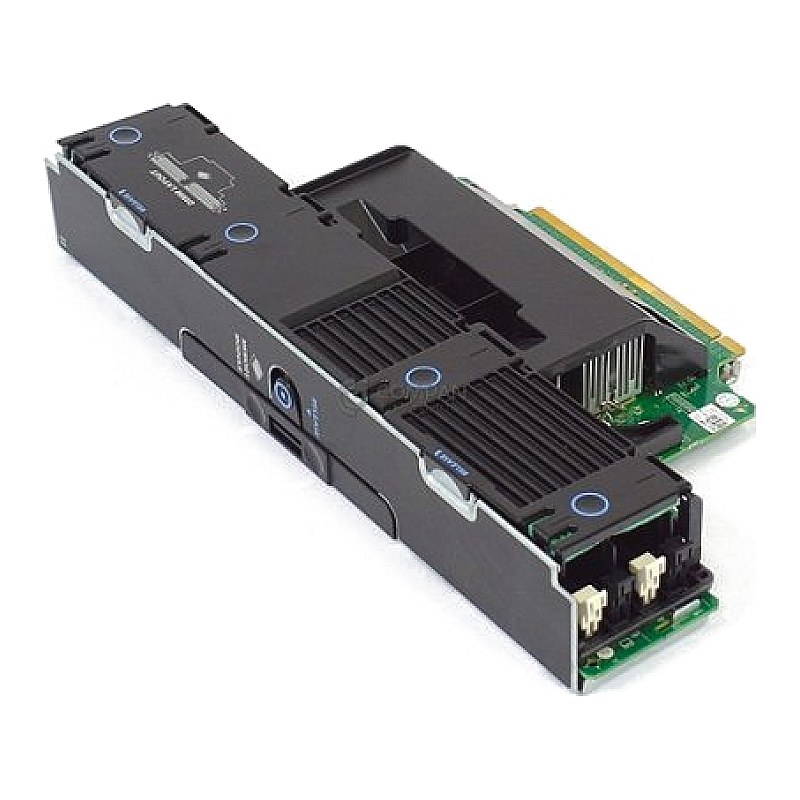

Dell PowerEdge R910 Memory Riser Board GEN II DNP: C2CC5,0C2CC5. This is a Clean Pull from Dell Poweredge R910 servers in a data centre working environment. Brand: Dell. Part #: C2CC5. Specs:-. :: Type: Memory Riser…

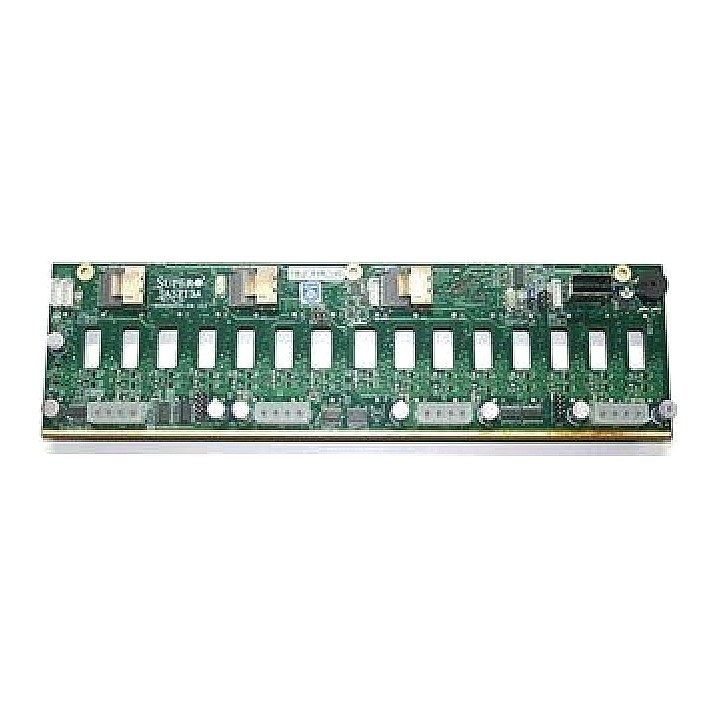

Supermicro BPN-SAS-213A - Server SATA/SAS Backplane - 2U. Product description. Condition: Refurbished. SAS213 Backplane for 2U, x16 2.5 inch HDD, iPass connector. Supermicro accessories for server chassis. 16-port…
