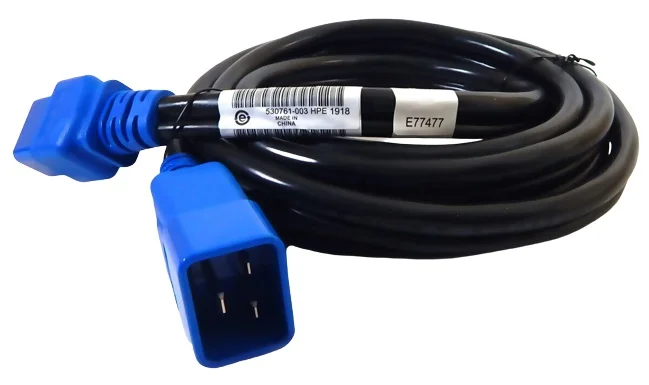

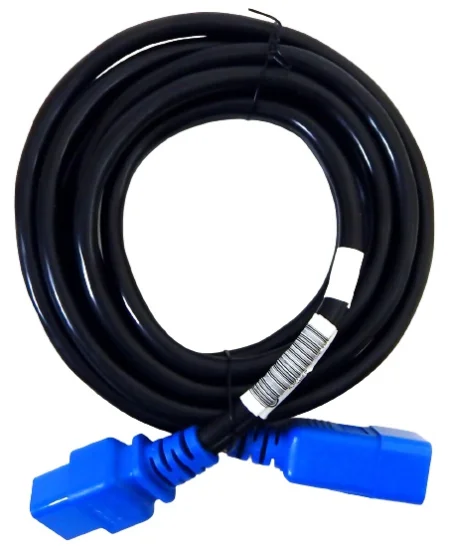

TK742A HPE 3.0m 250V 16A C19-C20 Single IPD Power Cable

HPE 3.0m 250V 16A C19-C20 WW Single IPD Enabled Jumper Cord HPN: TK742A,530761-003,530761-001

• Brand: HPE
• Part #: TK742A,530761-003,530761-001
• Specs:-
•   ::  Type: HPE c7000 chassis power cables
•   ::  Description: Power Interconnect Cord
•   ::  Voltage Compatibility: 250 V
•   ::  First End Connector Type: IEC 60320 C19
•   ::  First End Connector Detail: 1 x 3-pin IEC 60320 C19 Female
•   ::  Second End Connector Type: IEC 60320 C20
•   ::  Second End Connector Detail: 1 x 3-pin IEC 60320 C20 Male
•   ::  Length: 3M
• Condition: New
• Warranty: 1 (one) year Tekmart Africa warranty
•

Key points to note on these 530761-001 HPE Single IPD Enabled Jumper Cords:-

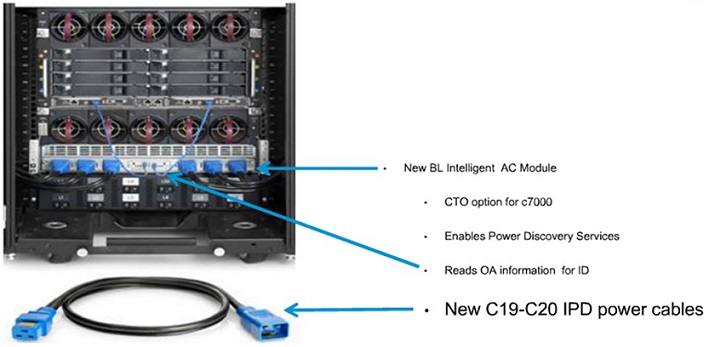

Each of these Intelligent Power Modules for Single Phase c7000s has an intelligence module that sits between the left 3 and right power supplies.

This module connects to the OAs via 2 external USB cables (1 to each OA)

So the power supplies don’t change, but the intelligent power module effectively strips off that serial sideband from the blue power cables and then relays the pertinent information to the OA and vice versa (OA to the Power Module to the iPDU)
