EnglishBrocade Switch Rackmount Kits
Brocade Switch Rackmount Kits are specialized hardware sets used to secure Brocade Fibre Channel (SAN) or IP switches into standard 19-inch data center racks. Because Brocade switches vary in size—from small 1U edge switches to massive 14U "Director" chassis—these kits are highly specific to the model and the type of rack being used.
1. Types of Rackmount Kits
Brocade offers different styles of kits depending on your airflow and space requirements:
-
::Fixed Rack Mount Kits: Standard brackets that "ear-mount" the switch to the front of the rack. These are usually for lightweight 1U switches like the Brocade G610 or 300.

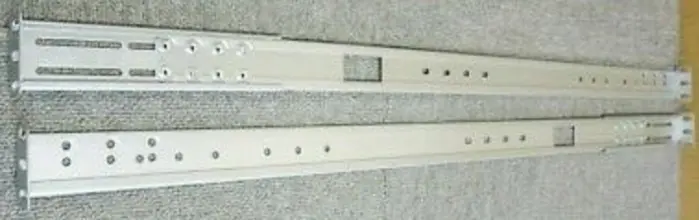

- ::Slide Rail Kits (SlimRail): Allow the switch to slide out of the rack for easier servicing without removing it entirely. These are common for deeper switches like the VDX 6740 or G620.
-
::Mid-Mount Kits: Used primarily in Telco (2-post) racks. Instead of mounting at the front, the brackets attach to the middle of the switch to balance the weight.
-
::Shelf/Rail Kits for Directors: Large chassis (like the X6 or X7 DCX) require heavy-duty shelf-style rails that can support hundreds of kgs.
-
**Critical Warning: Screw Length**
Always use the screws provided in the Brocade kit. Using standard "long" server screws can penetrate the switch chassis too deeply and short-circuit the motherboard or power supply.
