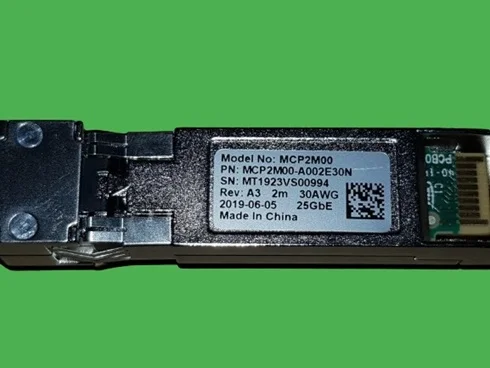

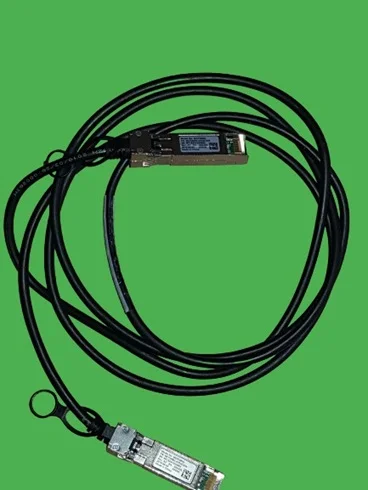

Mellanox 25G SFP28 Passive Direct Attach Copper Twinax Cable Part #: MCP2M00-A002E30N
- Brand: Mellanox
- Part #: MCP2M00-A002E30N
- Specs:-
- :: Connector Type: SFP28 to SFP28
- :: Max Data Rate: 25Gbps
- :: Minimum Bend Radius: 21.25mm
- :: Wire AWG: 30AWG
- :: Cable Length: 2M (6.56ft)
- :: Jacket Material: PVC (OFNR)
- :: Typical Power Consumption: ≤0.5W
- :: Power Supply: 3.3V
- :: Temperature: 0 to 70°C (32 to 158°F)
- :: Protocols: IEEE 802.3, SFP28 MSA, SFF-8402, Infiniband, EIA 364-1000
- Application
- :: 25G Ethernet
- :: Data Center
- :: 5G Wireless
- Condition: New
- Warranty: 1 (one) year Tekmart Africa warranty
-
Key points to note on these MCP2M00-A002E30N Mellanox DAC Cables:-
These Mellanox MCP2M00-A002 25G SFP28 Passive Direct Attach Copper Twinax Cable are designed for use in 25GBASE Ethernet. This cable is compliant with IEEE P802.3by Ethernet standard and SFP28 MSA Compliant.
Mellanox® MCP2M00-A0xxxxxx direct attach copper cables are high speed, cost-effective alternatives to fiber optics in 25GbE Ethernet applications. MCP2M00 passive copper cables(1) contain a single high-speed copper pair, operating at data rates of up to 25GbE.
- :: The cables are compliant SFF-8402 SFP28 standard.
- :: Each SFP28 port comprises an EEPROM providing product information, which can be read by the host system. MCP2M00 cables up to 2m support IEEE 802.3by CA-25G-N (Cable Assembly No-FEC) with low latency.
- :: Cables from 4m to 5m support IEEE 802.3 by CA-25G-L (Cable Assembly Long) with RS-FEC (Reed Solomon Forward Error Correction) enabled.
- :: For 2.5m and 3m cables there are two versions supporting either CA-25G-N or CA-25G-L.
-
Mellanox’s unique quality passive copper cable solutions provide power-efficient connectivity for short distance interconnects. They enable higher port bandwidth, density and configurability at a low cost and reduced power requirement in the data centers.
Their feature set at a glance:-
- :: Max. Power Consumption 0.5W
- :: Low Loss and Crosstalk for Better Performance
- :: Minimum Bend Radius 21.25mm for Flexible Routing
- :: Support Real-time Configuration
- :: Simplify Patching and Cost-effectively Handle Short Links
-
INST240624
**Eligible for immediate collection / shipping upon order confirmation**
