J9782-61001 HPE 2530-24 Switch Layer 2 24-Port Managed Switch

HPE Aruba 2530 Series 2530-24 (24 x Ports 10/100Base-TX + 2 x GBE Uplink Ports + 2 x SFP Ports) Layer 2 Managed Gigabit Ethernet Network Switch HPN: J9782-61001,J9782A

• Brand: HPE Aruba
• Part #: J9782-61001,J9782A
• Model: 2530-24 Switch-J9782A
• Specs:-
•   ::  Type : Managed 24-Ports Switch
•   ::  Enclosure Type :  Rack-mountable, Wall-mountable - 1u
•   ::  Layer Supported : 2 Layer
•   ::  Ports : 24 X 10/100 + 2 X Combo Gigabit Sfp + 2 X 10/100/1000
•   ::  Performance : Throughput : 9.5 Mpps Switching Capacity : 12.8 Gbps
•   ::  Capacity : Mac Addresses : 16000
•   ::  Mac Address Table Size : 16000 Entries
•   ::  Jumbo Frame Support : 9220
•   ::  Remote Management Protocol : Snmp 1, Rmon 1, Rmon 2, Rmon 3, Rmon 9, Telnet, Snmp 3, Snmp 2c, Http, Tftp, Ssh-2, Cli
•   ::  Features : Flow Control, Dhcp Support, Bootp Support, Arp Support, Trunking, Vlan Support, Auto-uplink (auto Mdi/mdi-x), Port Mirroring, Ipv6 Support, Half Duplex Mode, Full Duplex Mode, Sntp Support, Sflow, Multiple Spanning Tree Protocol (mstp) Support, Access Control List (acl) Support, Quality Of Service (qos), Stp Root Guard, Lldp Support, Class Of Service (cos), Generic Attribute Registration Protocol (garp)
•   ::  Compliant Standards : Ieee 802.3, Ieee 802.3u, Ieee 802.1d, Ieee 802.1q, Ieee 802.3ab, Ieee 802.1p, Ieee 802.3x, Ieee 802.3ad (lacp), Ieee 802.1w, Ieee 802.1x, Ieee 802.1s, Ieee 802.1ab (lldp), Ieee 802.3az
  processor : 1 X Arm : 800 Mhz
•   ::  Ram : 256 Mb - Ddr3 Sdram
•   ::  Flash Memory : 128 Mb
•   ::  Interfaces : 2 X 10base-t/100base-tx/1000base-t - Rj-45 2 X Sfp (mini-gbic) Management : 1 X Console - Rj-45 24 X 10base-t/100base-tx - Rj-45
•   ::  Power Device : Power Supply
•   ::  Voltage Required : Ac 120/230 V ( 50/60 Hz )
• Condition: New
• Warranty: 1 (one) year Tekmart Africa warranty
•

Key points to note on these J9782-61001 HPE Aruba Managed Switches:-

Aruba 2530 Series Fast Ethernet devices are fully managed Layer 2 edge switches delivering cost effective, reliable, and secure connectivity for business networks. This J9782A has 24 x 10/100 ports.

Additionally the switch has two 10/100/1000 ports and two dedicated Gigabit SFP ports. Designed for entry level to midsize enterprise networks, these switches deliver full Layer 2 capabilities with enhanced access security, traffic prioritization, and IPv6 host support.

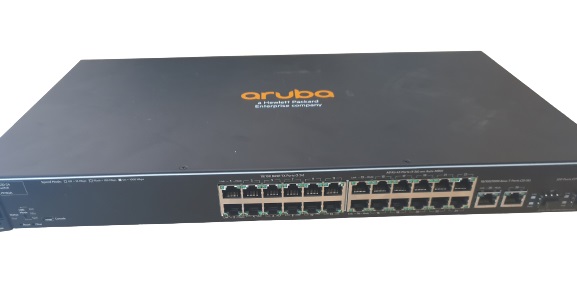

Figure 1 shows the appearance of an actual Aruba J9782A managed switch.
