(image for) 46k5868 IBM Dual Port 57B3 SAS PCIe Controller

Model: 46k5868,46K5840,57B3,5901
Shipping Weight: 1 kg
In Stock: 2
Manufactured by: IBM

46k5868 IBM Dual Port 57B3 SAS PCIe Controller

R3,290

(0 Reviews) Add Your Review

Description

IBM Dual-Port 3Gb PCIe x8 Disk / Tape Adapter for 57B3 pSeries SAS Adapter with 1.5Gb Cache Storage Controller Part #: 46K5868 / 57B3 / 46K5840 / 74Y8748 / 46K4732

Brand: IBM
Part #: 46K5868 / 57B3
Alt. Part #: 46K5840 / 74Y8748 / 46K4732
Specs:-
:: Type: Server network adapters
:: Description: PCIe Dual - x4 SAS Adapter (FC 5901; CCIN 57B3)
:: Adapter FRU number: 44V4852 (Designed to comply with RoHS requirement)
:: I/O bus architecture: PCIe
:: Slot requirement: One available PCIe x8 slot
:: Cables: SAS device attachment requires specific cables that are provided with the subsystem or device features being attached. Special cabling is required for multi-initiator and high availability configurations.
:: Voltage: 3.3 V
:: Form factor: Short, low-profile
:: Maximum number: For the maximum adapters supported, see the PCI adapter placement topic collection for your system.
Special attributes:-
:: Two external mini SAS 4x connectors provide attachment of SAS and Serial Advanced Technology Attachment (SATA) device enclosures
:: SAS Serial SCSI Protocol (SSP), Serial ATA Tunneling Protocol (STP), and Serial Management Protocol (SMP)
:: RAID 0, 5, 6, 10 (The write performance of RAID 5 and RAID 6 can be poor on adapters that do not provide write cache. Consider using an adapter that provides write cache when using RAID 5 or RAID 6.)
:: Concurrent firmware update
:: Removable media device supported (Removable media is not supported in multi-initiator and high availability configurations) Removable media device supported
:: 440 - 500 Mhz PowerPC® (PPC)
:: Support for multi-initiator and high availability configurations
Condition: New
Warranty: 1 (one) year Tekmart Africa warranty

Key points to note on these 46k5868 IBM 2-Port adapters:-

The PCI Express (PCIe) Dual - 4x SAS adapter is a low-profile short form factor adapter for high-performance and high-density, serial attached SCSI (SAS) applications. It supports the attachment of SAS disk, tape, and DVD by using a pair of mini SAS 4x connectors which allow the eight physical links to be used in various narrow and wide-port configurations.

The adapter does not have write cache.

The adapter is a 64 bit, 3.3 V, bootable SAS adapter that provides RAID 0, 5, 6, and 10 capability. Some RAID level support is operating system dependent. The adapter provides RAID 0, RAID 5, RAID 6, and RAID 10 for the Linux operating system. The adapter does not have write cache. (The write performance of RAID 5 and RAID 6 can be poor on adapters that do not provide write cache. Consider using an adapter which provides write cache when using RAID 5 or RAID 6.)

The adapter can address up to 48 SAS disk drives, although the actual number of drives in a system is subject to the physical placement limitations of the system. Externally attached devices are designed to run at a data rate of 1.5 Gbps for serial ATA (SATA) devices, and 3 Gbps for SAS devices. This card supports RAID and non-RAID DASD, tape, and optical devices. This adapter supports the multi-initiator and high availability configurations in Linux.

The 5901 supports SAS SFF disk drives located in a PCIe 12X I/O Drawer or SAS disk drives located in an EXP 12S Disk Drawer or SAS disk drives located in a supported POWER® system unit (split disk backplane).

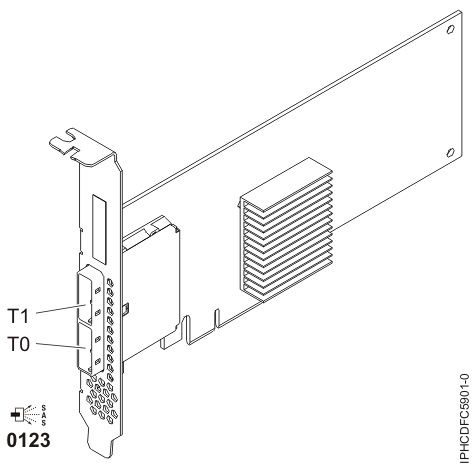

Figure 1. PCIe Dual - x4 SAS adapter
