Catalyst 2960S SWITCH 48 GigE PoE 370W 4 x SFP LAN Base Part #: WS-C2960S-48FPS-L

• Brand: Cisco
• Part #: WS-C2960S-48FPS-L
• Specs:-
•   ::  Type: 48 Ports managed POE switch.
•   ::  Enclosure Type: 1U Rack-mountable
•   ::  Ports: 48 x 10/100/1000 (PoE) + 4 x SFP
• Interfaces:

• ::  48 x 10Base-T/100Base-TX/1000Base-T - RJ-45 PoE
• ::  1 x USB Type A
• ::  1 x console - mini-USB Type B management
• ::  1 x console - RJ-45 management
• ::  1 x 10Base-T/100Base-TX - RJ-45 management
• ::  4 x SFP (mini-GBIC)

•   ::  Uplink Interfaces: Four 1G Small Form-Factor Pluggable(SFP)
•   ::  Downlink Ports: 48 × Ethernet 10/100/1000 PoE+ ports
•   ::  Power Over Ethernet (PoE): Yes
•   ::  PoE capacity: 740W
• Performance:

• ::  Switching capacity: 176 Gbps
• ::  Forwarding performance (64-byte packet size): 77.4 Mpps

•   ::  MAC Address Table Size: 8K entries
• Remote Management Protocol:

• SNMP 1, SNMP 2, RMON 1, RMON 2, RMON 3, RMON 9, Telnet, SNMP 3, SNMP 2c, HTTP, HTTPS, TFTP, SSH

•   ::  Encryption Algorithm: SSL
•   ::  Authentication Method: Secure Shell (SSH), RADIUS, TACACS+
• Features:

• Layer 2 switching, auto-sensing per device, dynamic IP address assignment, power over Ethernet (PoE), auto-negotiation, BOOTP support, ARP support, load balancing, VLAN support, auto-uplink (auto MDI/MDI-X), IGMP snooping, Syslog support, DiffServ support, Broadcast Storm Control, IPv6 support, Multicast Storm Control, Unicast Storm Control, Rapid Spanning Tree Protocol (RSTP) support, Multiple Spanning Tree Protocol (MSTP) support, DHCP snooping, Dynamic Trunking Protocol (DTP) support, Port Aggregation Protocol (PAgP) support, Access Control List (ACL) support, Quality of Service (QoS), PoE+, Link Aggregation Control Protocol (LACP), Port Security, MAC Address Notification, Remote Switch Port Analyzer (RSPAN)

•   ::  RAM: 128 MB
•   ::  Flash Memory: 64 MB flash
• Status Indicators:

•   ::  Port status
•   ::  Port transmission speed
•   ::  Port duplex mode
•   ::  Power
•   ::  System
•   ::  Link/activity

•   ::  Expansion Slots: 1 (total) / 1 (free) x Stacking Module slot
•   ::  Voltage Required: AC 120/230 V (50/60 Hz)
•   ::  Power Consumption: 71 Watt
•   ::  Software: Cisco IOS LAN Base
• Condition: Refurbished
• Warranty: 1 (one) year Tekmart Africa warranty
•

Key points to note on these WS-C2960S-48FPS-L Cisco 48-Port POE switches:-

These Cisco Catalyst WS-C2960S-48FPS-L Ethernet Switch are the leading Layer 2 edge, providing improved ease of use, highly secure business operations, improved sustainability, and a borderless network experience. They include new Cisco FlexStack switch stacking capability with 1 and 10 Gigabit connectivity, and Power over Ethernet Plus (PoE+) with the Cisco Catalyst 2960 Switch offering fast Ethernet access connectivity and PoE capabilities.

They are fixed-configuration access switch designed for enterprise, midmarket, and branch office networks to provide lower total cost of ownership.

The WS-C2960S-48FPS-L are different from the WS-C2960S-48LPS-L in the PoE capabilities, because Cisco WS-C2960S-48FPS with Full PoE function can offer 740W PoE Power total with 24 ports up to 30W per switch ports or 48 ports up to 15.4W per switch port.

But Cisco Catalyst Switch 2960S-48FPS-L and 2960S-48LPS-L share a similar datasheet with 4 One Gigabit Ethernet SFP uplink ports and optional Cisco FlexStack stacking supporting 20 Gbps of throughput. Both are Catalyst 2960-S models with LAN Base Software.

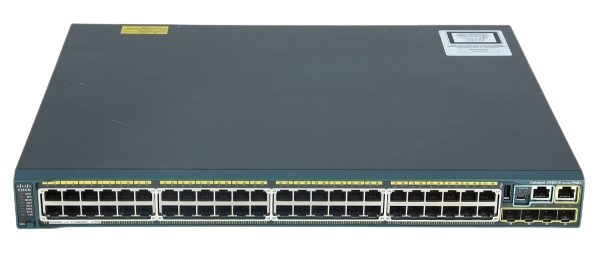

Figure 1:  Sample appearance of the WS-C2960S-48FPS-L.

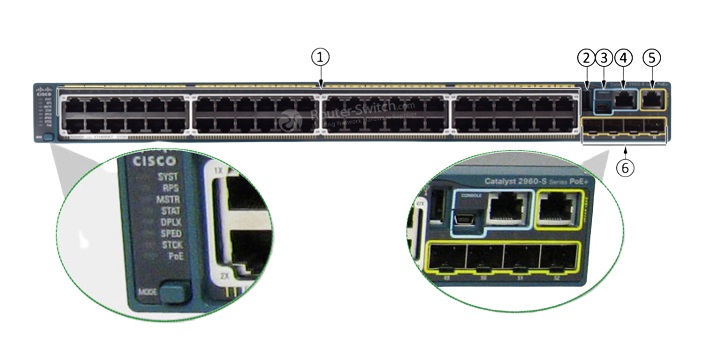

Figure 2:  A sample view of the  front panel of the WS-C2960S-48FPS-L.

Port / slot explanation (above)

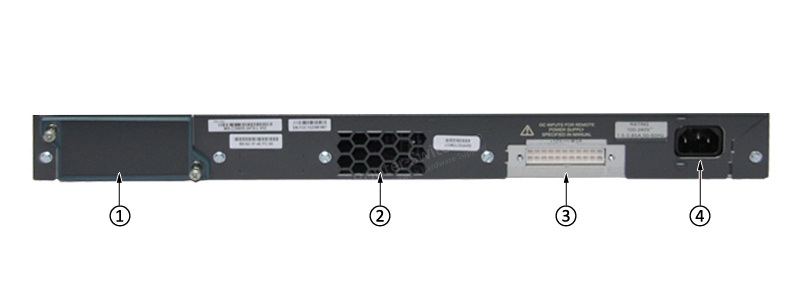

Figure 3 below shows the back panel of the WS-C2960S-48FPS-L.

Connectors explanation (above)
