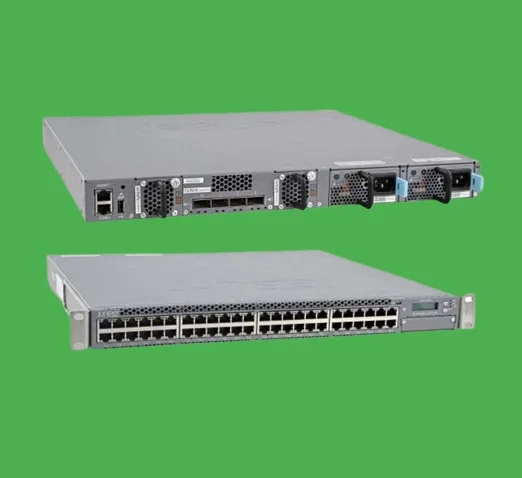

Juniper Networks 48x 1GbE RJ45 4x 40Gb QSFP+ Rack Mount 1U Switch Model: EX4300-48T
- Brand: Juniper
- Part #: EX4300-48T
- Specs:-
- ::Type: Juniper EX4300 48-port switch
- ::Model Type: Enterprise Access Switch (Layer 3)
- ::Description: Juniper EX4300 switch with 48-port 10/100/1000BASE-T + 350 W AC PS
- ::Access Ports: 48 x 10/100/1000BASE-T (Gigabit Ethernet RJ-45)
- ::Uplink Ports: 4 x 40 Gigabit Ethernet QSFP+ ports (fixed on the rear panel)
- ::Form factor: Fixed platform, Virtual Chassis configuration consisting of 10 switches
- ::Backplane speed 320 Gbps (Virtual Chassis)
- ::Data rate 496 Gbps
- ::Throughput 369 Mpps (wire speed)
- ::40GBASE quad small form-factor pluggable plus transceiver (QSFP+) port densities: 4 per switch Up to 20 in Virtual Chassis configuration (assuming 2 ports per switch are used for forming Virtual Chassis)
- ::100GBASE C form-factor pluggable transceiver (CFP) port densities N/A
- ::Resiliency: Internal, hot-swappable redundant power supply; field-replaceable fans; graceful Routing Engine switchover (GRES) in Virtual Chassis configuration
- ::Operating system: Junos OS
- ::Management: Junos OS (CLI, J-Web)
- ::Traffic monitoring: sFlow
- ::Quality-of-service (QoS) queues/port: 12
- ::MAC addresses: 64,000
- ::Jumbo frames: 9216 bytes
- ::IPv4 unicast/multicast routes: 32,000/8000
- ::IPv6 unicast/multicast routes: 18,000/4000
- ::Number of VLANs: 4093
- ::ARP entries: 64,000
- Condition: New
- Warranty: 1 (one) year Tekmart Africa warranty
-
INT201125ITUK2025
**Eligible for immediate collection / shipping upon order confirmation*
The SKU: EX4300-48T is a Juniper model for a high-performance, fixed-configuration Layer 3 Gigabit Ethernet switch designed for campus and data center access layer deployments.
It runs on the Juniper Junos OS and supports the company's Virtual Chassis technology.
The EX4300 line of Ethernet switches delivers the performance, flexibility, and scale required for both campus and data center Gigabit Ethernet (GbE) access switch environments.
When deployed in a Virtual Chassis configuration, the EX4300 delivers the operational simplicity and higher logical scale that businesses demand.
Combining compact, pay-as-you-grow economics and low power and cooling with the performance, availability, and port densities of chassis-based platforms, the EX4300 enables businesses to deploy with speed and agility to increase revenue and improve productivity.
The EX4300 is onboarded, provisioned, and managed in the Juniper Mist Cloud Architecture. Mist Wired Assurance delivers better experiences for connected devices through AI-powered automation and service levels.
