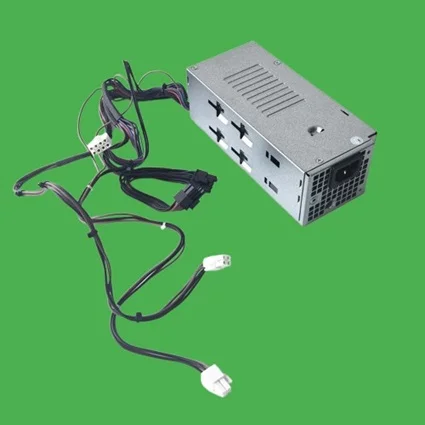

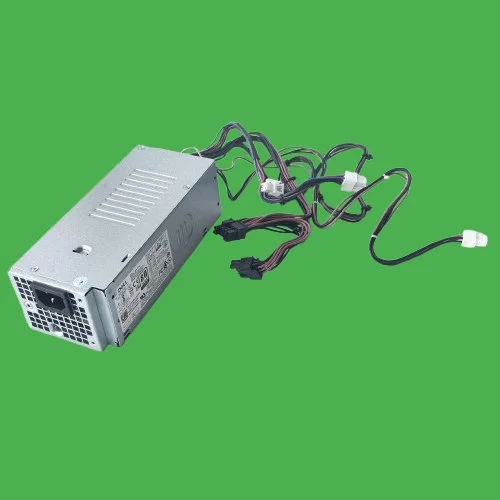

Dell 500W PSU for Dell T3660 XPS 8950 3910 7000, Model: D500EPS-01, DPN:TPX56, 0TPX56
- Brand: Dell
- Dell Part #:TPX56,0TPX56
- Alt. Part Identifiers: D500EPS-01, DPS-500AB-58A, L500EPS-01, HU500EPS-00, HU500EPS-01, 0VFFKJ, 0C20GG, 0RJVH9, 0DYW3N.
- Specs:-
- ::Type: Dell workstation ATX power supplies
- ::Maximum Power Output: 500 Watts
- ::Efficiency Rating: 80 Plus Platinum Certified (typically 92% efficiency at 50% load). This means it's very efficient at converting AC power to DC power, leading to less wasted energy and heat.
- ::Form Factor: Proprietary Dell low-profile design, specifically shaped to fit in compatible Dell chassis. It is not a standard ATX or SFX form factor.
- ::Cooling: Air-cooled, typically with an internal fan.

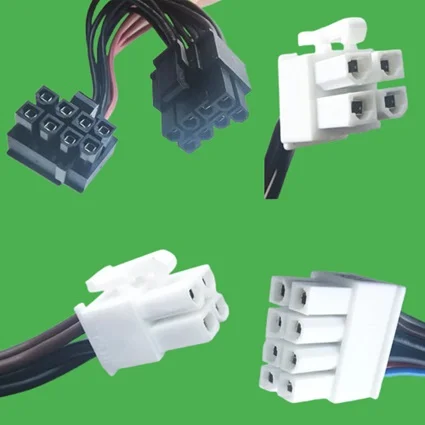

- Connectors:-
- They typically come with a set of proprietary Dell connectors, including:
- ::One 8-pin motherboard connector (ATX SYS)
- ::Two 4-pin +12V CPU power connectors (ATX CPU1, ATX CPU2)
- ::One 6+2 pin PCIe power connector (GFX1)
- ::One 6-pin PCIe power connector (GFX2) (often on the same cable as GFX1)
- Compatibility:-
- These PSUs are specifically engineered for optimal performance within several Dell desktop lines as below:-
- Dell Inspiron:
- ::Inspiron 3910
- ::Inspiron 3030 (some models)
- Dell OptiPlex:
- ::OptiPlex 3000 Series (e.g., 3000MT)
- ::OptiPlex 5000 Series (e.g., 5000MT)
- ::OptiPlex 7000 Series (e.g., 7000MT Tower, 7010 Tower Plus)
- ::OptiPlex XE4 Tower
- Dell Precision:
- ::Precision T3660
- ::Precision T3660XE Tower
- Dell XPS:
- ::XPS 8950
- ::XPS 7000
- Condition: New
- Warranty: 1 (one) year Tekmart Africa warranty
-
INT2507251JLC2025
**Eligible for immediate collection / shipping upon order confirmation*
The SKU:TPX56, is a Dell 500W Power Supply Unit (PSU), also often referred to with the Dell part number 0TPX56, is a specialized 500-watt power supply unit (PSU) designed by Dell for specific desktop and workstation models. These are manufactured by companies like Delta Products for Dell.
Dell often uses proprietary connectors and pinouts for their power supplies. This means that a standard off-the-shelf ATX power supply from another brand is unlikely to be compatible with systems designed for the TPX56.
You need to ensure the replacement PSU has the exact Dell-specific connectors. These power supplies are their exact match.
