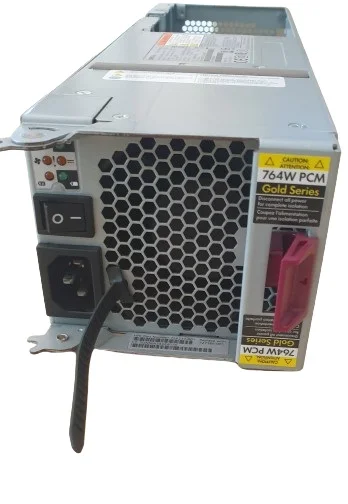

682372-001 HP 764W Power Supply For HP 3PAR 7400

HPE 764Watts 80-Plus 100-240V 10-6A 50-60Hz Power Supply Cooling Module for 3PAR STORESERV 7200 7400 HPN:682372-001,683239-001

• Brand: HPE
• Alt. Part #: 726237-001,727386-001
• Model: SPAXRTX-06A1G
• Specs:-
•   ::  Type: Storage Hot-Swap Power Supply module
•  Inputs:
•   ::  100-240VAC, 10.0-6.0A, 50-60Hz
• Outputs:
•   ::   +12VDC, 56.0A
•   ::  +5VDC, 40.0A
•   ::  5Vsb, 2.7A
•   ::  Output Power : Max. 764W
•   ::  Wattage: 764 Watts
•   ::  Application: Controller Node Enclosures (Main brains of the 3PAR 7000 series)
•   ::  Efficiency: 80 PLUS Gold
• Compatibility:
•   ::  3PAR StoreServ 7200 2N
•   ::  3PAR StoreServ 7200C 2N
•   ::  3PAR StoreServ 7400 2N
•   ::  3PAR StoreServ 7400 4N
•   ::  3PAR StoreServ 7400C
•   ::  3PAR StoreServ 7400C 2N
•   ::  3PAR StoreServ 7400C 4N
•   ::  3PAR StoreServ 7450
•   ::  3PAR StoreServ 7450C
•   ::  3PAR StoreServ 7450C 2N
• Condition: New
• Warranty: 1 (one) year Tekmart Africa warranty
•

Key points to note on these 682372-001 HPE 3Par Power Supply modules:-

These 764W Power Supply for HP 3PAR 7400 work with Battery Module 0991000-03 - sold separately here.

They are 764W Power Cooling Module (PCM) specifically designed for the HPE 3PAR StoreServ 7000 series (including 7200, 7400, 7440c, and 7450).

In contrast to the 580W unit , this module is for the Controller Nodes.

Does each of these have a battery slot?

Yes. Because this PCM powers the controller nodes (which handle system cache), it requires a battery to protect data in the event of a power failure.

• ::The battery module itself is a separate part: 683240-001.
• ::The battery slides directly into a dedicated compartment on the front/bottom of the 683239-001 unit.

7000 Series vs. 8000 Series PCMs Compared:-

It is easy to confuse these because they look very similar, but they are generally not interchangeable:

If you are buying this as a replacement for a 3PAR 8000 series, this is likely the wrong generation. While the physical dimensions are almost identical, the firmware and internal signaling are different.
