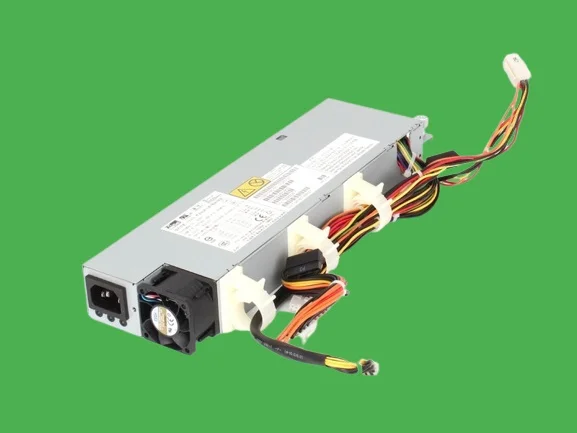

IBM X3250 M5 1U Server Power Supply FRU(S): FSC049 00Y7440 00AM101
- Brand: IBM / Lenovo
- Part #: 00Y7440
- Model: FSC049
- Specs:-
- :: Type: Server Power Suppl Units
- :: Sub-category: Non-Hot Swap Power Supplies (the redundant power supplies can be found here)
- :: Rating: 300Watts
- Compatibility:
- :: IBM x3250 M5 Servers
- Condition: Refurbished; tested
- Warranty: 1 (one) year Tekmart Africa warranty
-
Key points to note on the servers and options where these 00Y7440 IBM Non-Hot Plug PSUs are installed:-
The System x3250 M5 server is a compact, cost-effective, single-processor 1U rack server that has been optimized to provide outstanding availability, manageability, and performance features to small-to-medium-sized businesses, retail stores, or distributed enterprises.
Any of these IBM x3250 M5 servers support one 300 W AC fixed power supply or up to two redundant 460 W hot-swap power supplies. These power supplies are 80 PLUS certified. Standard models come either with one fixed or one hot-swap power supply (model dependent). The following table lists the power supplies.
An AC hot-swap power supply option ships standard with one 2.8m, 10A/100-250V, C13 to IEC 320-C14 rack power cable.
Power supplies
| Part number |
Feature code |
Description |
Maximum supported |
Standard models where used |
| None** |
None* |
300W Fixed Power Supply Unit |
1 |
A2x, B2x, C2x, C4x |
| 94Y6236* |
A2E8 |
460W Redundant Power Supply Unit with 80+ certified |
2 |
F2x, G2x |
* Withdrawn from marketing
** Fixed power supply comes either with standard or custom (special bid or CTO) models.
Take note:
Eight drive bays support: Models with 300 W fixed power supply can only support up to four drive bays.
3.5-inch drive bay support: Models with 460 W redundant hot-swap power supplies do not support 3.5-inch drive bays.
