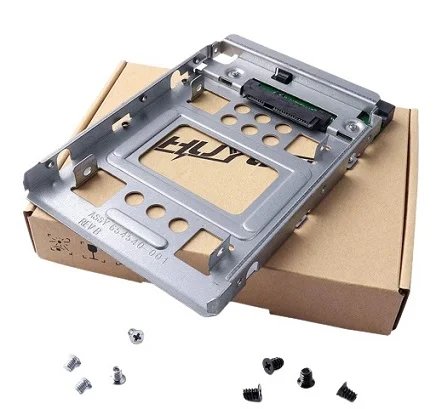

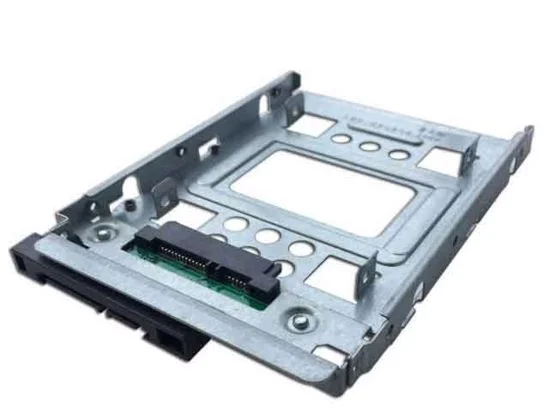

HP 2.5" to 3.5" SATA HDD SSD SAS HDD Carrier HPN: 654540-001

• Brand: HP
• Part #: 654540-001
• Condition: Refurbished
• Warranty: 90-day 1 (one) yearTekmart warranty
• This part number is for the HDD adapter only. No hard drive is included

Features:

•     ::  This adapter can convert any 2.5" SAS/SATA/SSD drive to 3.5" form factor.
•    :: However, for 2.5" SAS drives, this adapter will change dual port to single port.
•    :: This is fine for most applications. But if your application requires dual port, this adapter will not work for you.
•    :: And, as always, a SAS controller is required in order to support SAS drives.
• Caveat:
• :: A 2.5" SAS drives with this adapter installed will not work on a SATA controller although its connector looks exactly the same as a normal SATA connector
• :: This adapter is compatible with all the 3.5" SAS/SATA drive caddie trays from HP, Dell, IBM, or other manufacturers, such as HP 651314-001, IBM 69Y5284, or Dell F238F, Dell KG1CH

Description:

• :: This adapter can adapts any 2.5" form factor SAS/SATA/SSD Drive to 3.5" form factor drive, without cables or hassles.
• :: Standard position mounting holes on Adapter's bottom and sides, equivalent to those found on a 3.5" hard drive, give you the flexibility to mount it anywhere a 3.5" drive is used.
• :: Adapter's fixed mount connectors are attached to a simple circuit board, assuring solid connections between devices, and the outside connector is positioned to plug into a backplane as the tray is inserted.
• :: Compatible with 3Gb/s and 6Gb/s SAS/SATA/SSD drives.
• :: No loss in data transfer speeds—no bridge chip used
