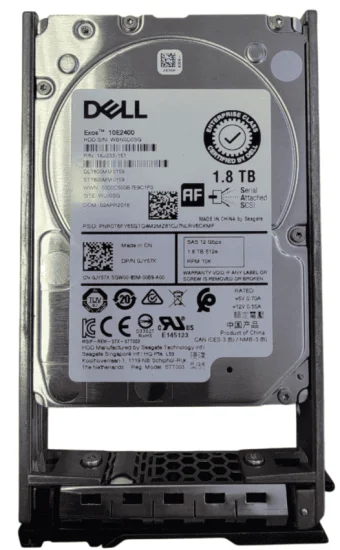

0JY57X Dell G14-G17 1.8TB 12G 10K 2.5in 512e HDD w/DXD9H Caddy

Dell G14-G17 1.8TB 12G 10K 2.5in 512e HDD w/DXD9H Caddy Part #: 0JY57X / JY57X / 1XJ233-151 / ST1800MM0159

• Brand: Dell
• Part #: 0JY57X
• Alt. Part #: JY57X / 1XJ233-151
• Model #: ST1800MM0159
• Specs:-
• :: Capacity: 1.8TB
• :: Interface: Serial Attached SCSI (SAS)
• :: Enclosure: Internal
• :: Form Factor: 2.5in (SFF)
• :: Spindle Speed: 10000RPM
• :: External Data Transfer Rate: 12G = 12Gb/sec
• :: Seek Time: 4.5ms
• :: Condition: New
• :: Compatibility: Dell PowerEdge R240 / R340 / R440 / R540 / R640 / R6415 / R740 / R740XD / R740XD2 / R7415 / R7425 / R840 / R940 / R940XA / R250 / R350 / R450 / R550 / R650 / R650XS / R6515 / R6525 / R750 / R750XA / R750XS / R7515 / R7525 / R360 / R660 / R660XS / R6615 / R6625 / R760 / R760XA / R760XD2 / R760XS / R7615 / R7625 / R860 / R960 / R470 / R570 / R670 / R770 / R6715 / R6725 / R7715 / R7725 / T40 / T140 / T340 / T640 / T550 / T560 / C3400 / C3420 / C4140 / C6400 / C6420 / C6520 / C6525 / C6615 / C6620 Systems
• :: MPN: 0JY57X
• Warranty: 1 (one) year Tekmart Warranty
• INST: 251211001
• PSS: This Product is Eligible for Immediate Collection / Shipping Upon Order Confirmation
•

The SKU:0JY57X (or JY57X) is a Dell Part Number (DP/N) for a specific model of Enterprise Hard Disk Drive (HDD) designed for use in Dell PowerEdge servers and storage arrays.

This is a high-performance drive used in data centers and server environments.

This bare hard drive is typically compatible with Dell PowerEdge servers that use 2.5-inch SAS hot-swap bays, most notably the Dell 14th, 15th, and 16th Generation (Gen14-Gen17) servers, including models like:

• ::PowerEdge R440, R540, R640, R740, R740xd
• ::PowerEdge R650, R750

The drive usually comes mounted in a Dell hot-swap caddy/tray (e.g., DXD9H) to fit into the server's drive bays.

And yes, they have strong backward compatibility primarily based on the SAS interface itself, but with crucial limitations concerning Dell's server generations and trays.

The SAS (Serial Attached SCSI) interface is inherently backward compatible.

• ::12Gbps Drive to a 6Gbps Controller: The drive will operate at 6Gbps.
• ::12Gbps Drive to a 3Gbps Controller: The drive will operate at 3Gbps.

A SAS 12Gbps drive (like these- 0JY57X) will automatically negotiate the connection speed downward to match the capabilities of the host controller (RAID controller or HBA) in an older server-6Gbps and 3Gbps.
