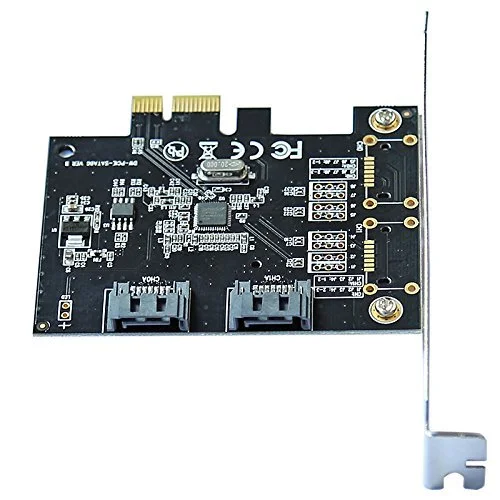

6Gbps PCI express PCIE pci-e to 2 Port SATA 3.0 ports Expansion Controller riser post card adapter Part #: ASM1061
- Brand: Generic
- Part #: ASM1061
- Alt. Part #: ASM1061
- Specs:-
- :: Kit: PCIe SATA III 6Gb/s Controller RAID Card (1) / Low profile bracket (1)
- :: Chipset: ASM1061
- :: Speed Negotiation: 1.5Gbps / 3.0Gbps / 6.0Gbps
- :: Interfaces: SATA3.0 interfaces (2)
- :: Compliance: PCI Express 2.0 standards
- :: Special Features: Supports Hot Plug and Hot Swap / Supports AHCI and IDE programming interface / Supports Native Command Queue (NCQ) / Supports Port Multiplier command based switching / Supports S.M.A.R.T feature / Supports background rebuild / Supports high performance off-line rebuild / Supports automatic rebuild
- :: System Requirements: PCI Express-enabled system with one available PCI Express slot / Windows8 / 7 (32/64 bit) / Vista (32/64 bit) /XP / Server 2003 / 2008
- :: Support : Windows (R) XP / Server 2003 / Vista / 7 / 8 (32/64 bit ) / MAC / Linux
- :: Compatibility: N/A
- :: Condition: Refurbished
- :: MPN: ASM1061
- Warranty: 1 (one) year Tekmart Warranty
-
Other Special Features of this 6Gbps PCI express PCIE pci-e to 2 Port SATA 3.0 ports Expansion Controller riser post card adapter:-
- Serial ATA AHCI Spec. Rev.1.3
- Serial ATA Revision 3.2
- Serial ATA Features
- Supports 2 ports Serial ATA PHY
- SATA PHY 1i/1m/2i/2m/3i
- Embedded hardware RAID engine
- Supports RAID0 / RAID1 / SPAN
- RAID mode changeable, controlled via the setting by two GPIOs or GUI utility
- RAID0 high performance for the data transmission
