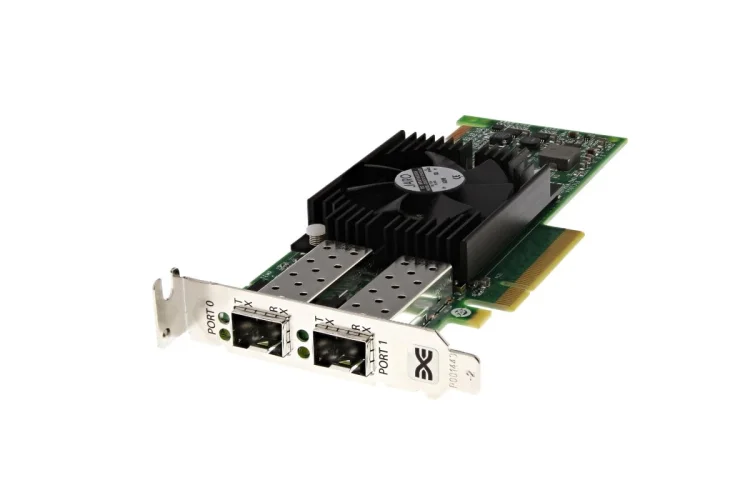

Emulex LightPulse 2-Port (Channel) 16GB FC (Fiber Channel) PCI-e Host Bus Adapter 16Gbps PCI-Express HBA, Model: LPE16002B-M6, Part #: LPE16002
- Brand: Emulex
- Part #: LPE16002
- :: Model: LPE16002B-M6
- Specs:-
- :: Device Type: Network adapter
- Ports & interfaces:
- :: Connectivity technology: Wired
- :: Host interface: PCIe
- :: Interface: Fiber
- :: Interface and Connections: 2 x 16Gb Fibre Channel - Short wave lasers with LC type connector
- :: Interface (Bus) Type: x8 lane PCI Express 3.0
- :: Fiber ports quantity: 2
- :: Data Link Protocol: 16Gb Fibre Channel
- :: Data Transfer Rate: Supports 16GFC, 8GFC and 4GFC link speeds, automatically negotiated
- :: Fiber optic connector: FC,SFP+
- :: Port Quantity: 2x 16Gb Fibre Channel - LC SFP+
- :: PCI version: 3.0
- Network
- :: Maximum data transfer rate: 16000 Mbit/s
- :: Full duplex: Yes
- :: Web-based management: Yes
- :: Maximum operating distance: 150 m
- Design
- :: Component for: Server
- :: Product colour: Black, Green, Silver
- :: Internal: Yes
- :: Rack mounting: Yes
- :: Rack capacity: 2U
- :: Hot-swap: Yes
- :: Hot-Plug support: Yes
- :: LED indicators: Yes
- :: Mean time between failures (MTBF): 10000000 h
- :: RoHS compliance: Yes
- :: Form Factor: Short, low profile MD2 form factor card 167.64 x 68.91 mm (6.60 x 2.71 in) Standard bracket
- Condition: New
- Warranty: 1 (one) year Tekmart warranty
-
Key points to note on these LPE16002 Emulex Fiber Channel HBAs:-
The Emulex LPE-16002 HBA offers an exceptional performance and advanced management functionality that can shave days off installing and managing adapters. It is coupled with up to 3x better IOPS performance per watt, which makes 16 Gb dual-port Fibre Channel (16GFC) host bus adapters (HBAs) the clear choice for the toughest virtualized, cloud and mission critical deployments.
These Emulex 16 Gb (Generation 6) Fibre Channel (FC) host bus adapters (HBAs) are an ideal solution for all servers requiring high-speed data transfer in storage connectivity for virtualized environments, data backup, and mission-critical applications. They are designed to meet the needs of modern networked storage systems that utilize high performance and low latency solid state storage drives for caching and persistent storage as well as hard disk drive arrays.
The Emulex 16 Gb Gen 6 FC HBAs feature ExpressLane™, which prioritizes mission-critical traffic in congested networks ensuring maximum application performance on flash storage arrays.
They also seamlessly support Brocade ClearLink™ diagnostics through Emulex OneCommand® Manager, ensuring the reliability and management of storage network when connected to Brocade Gen 5 FC SAN fabrics.
Highlights
- :: Its vScale performance and scalability-multi-core ASIC engine with eight cores supports 255 VFs, 1024 MSi-X and 8192 logins/open exchanges for maximum VM density-up to 4x more than other adapters
- :: It has 2x management functionality, and takes half the time to manage with OneCommand Manager
- :: It has unique OneCommand Manager plug-in for VMware vCenter for centralized management of adapters within a VMware environment
- :: The GreenState power efficiency-reduces data center power consumption and associated OPEX by delivering exceptional power to port ratios
- :: BlockGuard data integrity-T10 PI support protects against silent data corruption
- :: vEngine CPU offload-lowers CPU burden on host server, enabling support for more VMs
- :: Rock-solid reliability and thermal characteristics, essential for mission-critical, cloud and virtualized applications
- :: Support for Message Signaled Interrupts eXtended (MSI-X), improves host utilization and enhances application performance
- :: Support for 16GFC and 8GFC devices
- :: It contains comprehensive virtualization capabilities with support for N_Port ID Virtualization (NPIV)
- :: Provides Virtual Fabric Host-to-fabric Fibre Channel Security Protocol (FC-SP) authentication
- :: Common driver model, allows a single driver to support all HBAs provided by Emulex on a given OS
