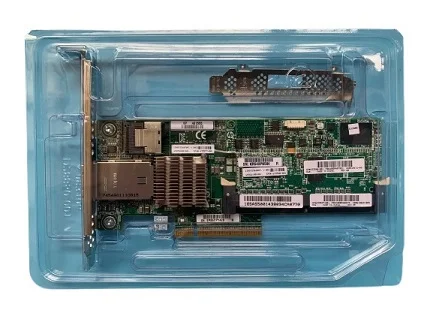

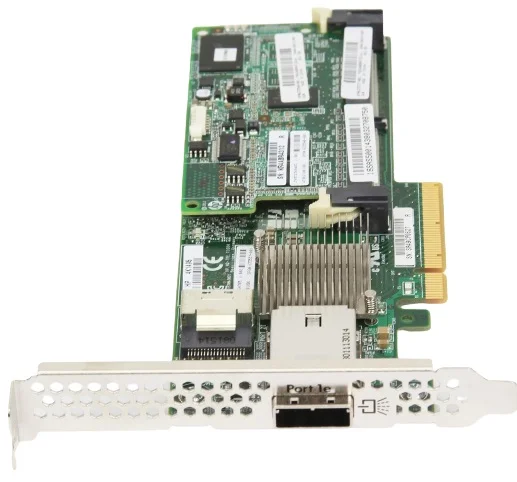

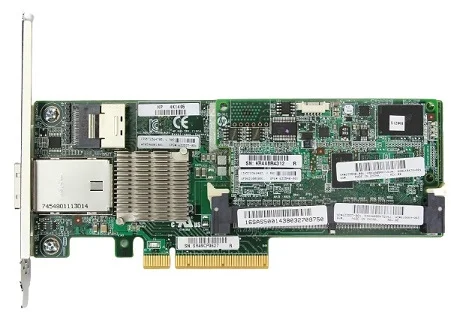

610669-001 HP Smart Array P222 512MB 6Gbps Pcie Sas Controller

HP Smart Array P222 512MB Cache Low profile PCI-E 1-Port internal / 1-Port external SAS RAID Controller HPN: 633537-001,610669-001

• Brand: HP
• Part #: 610669-001,633537-001
• Specs:-
•   ::  Type: Raid controller
•   ::  Description: HP Smart Array P222 1-Port SAS 6Gb/s PCI Express x8 512MB Cache (FBWC) Low Profile RAID Controller Card
•   ::  Product Line : Smart Array P222
•   ::  Data Transfer Rate : 6gb/s
•   ::  Ports :
•     ::   ( 1 ) One Mini Sas Sff-8087 Internal Port,
•       ::    ( 1 ) One Mini Sas Sff-8088 External Port
•   ::  Interface: The card uses a PCI-E 3.0 interface, which provides high-speed data transfer.
•   ::  Data transfer rate: The card supports a data transfer rate of up to 6 Gbps.
•   ::  RAID support: The card supports RAID 0, 1, 1+0, 5, and 50.
•   ::  Cache: The card is equipped with 512MB of flash-backed write cache (FBWC).
•   ::  Power: The card requires a minimum of 3 watts of power and a maximum of 10 watts.
• Compatibility:
•   ::  The card is compatible with HP ProLiant Gen8 and Gen9 servers, as well as some other HP servers.
• Condition: New
• Warranty: 1 (one) year Tekmart Africa warranty
•

Key points to note on these 610669-001 HP Smart Array P222 1-Port SAS 6Gb/s Raid cards:-

The HP Smart Array P222 6GBPS PCI-E SAS Controller Card is a card that enables the storage and management of data on a server. This controller card is designed to support SAS (Serial Attached SCSI) and SATA (Serial Advanced Technology Attachment) hard drives and solid-state drives (SSDs) on a PCI-Express (PCI-E) interface. It is equipped with 512MB of flash-backed write cache (FBWC) that provides a faster and more reliable data transfer.

These Smart Array P222 6GBPS PCI-E SAS Controller Cards have the some features that make them an ideal choice for servers in a variety of industries.

Below are some of the key features and benefits:-

• ::  High-speed data transfer: The controller card supports a data transfer rate of up to 6 gigabits per second (Gbps), which is six times faster than the previous generation of SAS controllers. This enables faster access to data, reducing server response time and increasing overall system performance.
• ::  Flexible storage options: The controller card supports SAS and SATA hard drives and SSDs, providing flexibility for a variety of storage needs. The card supports up to eight drives, allowing for significant storage capacity.
• ::  Enhanced data protection: The HP Smart Array P222 controller card is equipped with advanced data protection features. It supports RAID 0, 1, 1+0, 5, and 50, which provides a range of options for data redundancy and recovery. The card also has FBWC, which helps protect against data loss in the event of a power failure.
• ::  Easy setup and management: The controller card is easy to set up and manage. The card comes with a web-based interface that allows for easy configuration and management of the card's settings. Additionally, the card is compatible with HP's Smart Storage Administrator, a software tool that simplifies storage management and configuration.
