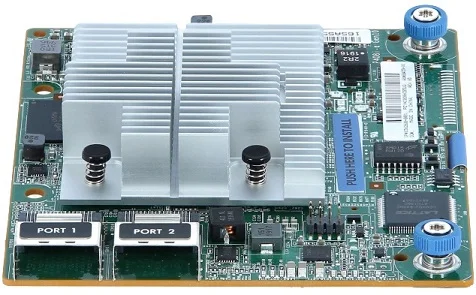

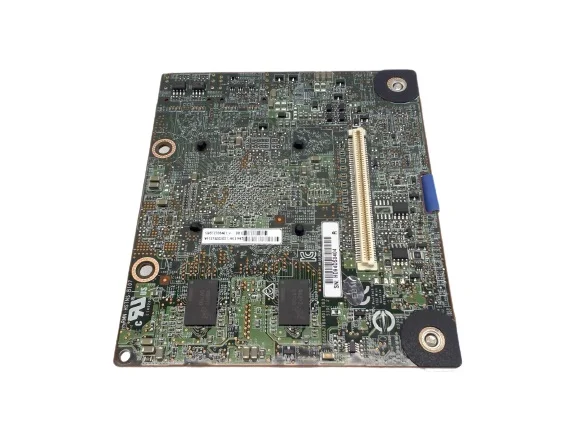

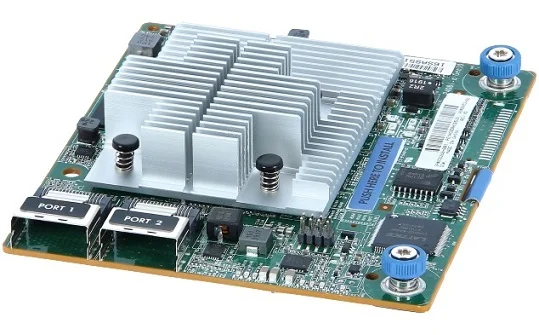

HPE Smart Array P408i-a SR Gen10 PCI Express 3.0 x8 (8 Internal Lanes / 2GB Cache) SAS-12Gbps Modular Raid Controller HPN: 836260-001,804331-B21,804334-001
- Brand: HPE
- Part #(s):836260-001,804331-B21,804334-001
- Specs:-
- :: Device Type: Storage Controller (RAID-Plug-in Card)
- :: Host Bus: PCI Express 3.0 x8 Lane Width
- :: Data Transfer Rate: 12Gb/s SAS per lane; 6Gb/s SATA per lane; PCI Express 3.0 x8 lane width
- :: Form Factor: Type-a Modular Controller
- :: Ports (Internal): 8 SAS lanes across 2 x4 Mini-SAS ports
- :: Cache (Buffer): 2 GB Flash-Backed Write Cache
- :: Supported Devices: Hard Drive, Disk Array (RAID)
- :: Additional features: HPE Smart Array SR Secure Encryption (optional license); HPE Smart Array SR SmartCache (optional license)
- :: Channel Qty: 8
- :: SATA Speed: 0, 1, 5, 6, 10, 50, 60, 1 ADM, 10 ADM
- :: RAID Level: RAID 0, RAID 1, RAID 5, RAID 6, RAID 10, RAID 50, RAID 60, RAID 1 ADM, RAID 10 ADM
- :: Maximum LUNs: 64
- :: Interfaces: 2 x SATA 6Gb/s / SAS 12Gb/s (internal)
- Compatibility:
- :: HPE ProLiant DL Series: DL360 Gen10, DL360 Gen10 Base, DL360 Gen10 Entry, DL360 Gen10 High Performance, DL360 Gen10 Low, DL360 Gen10 Performance, DL380 Gen10, DL380 Gen10 Base, DL380 Gen10 Entry, DL380 Gen10 High Performance, DL380 Gen10 Performance Servers
- :: HPE ProLiant XL Series: XL450 Gen10 Server
- :: HPE ProLiant ML Series: ML350 Gen10 Server
- Condition: New
- Warranty: 1 (one) year Tekmart Africa warranty
-
INT2605251
**Eligible for immediate collection / shipping upon order confirmation*
Key points to note on these 836260-001 HPE Smart Array P408i-A SR Gen10 Controllers:-
These HPE controllers provide enterprise-class storage performance, reliability, security and efficiency needed to address your evolving data storage needs. Each Smart Array P408i-a SR Gen10 controller is ideal for maximizing performance while supporting advanced RAID levels with 2 GB Flash-Backed Write Cache (FBWC). This type-a modular controller occupies a dedicated storage slot without occupying a PCIe expansion slot.
Again, supporting 12 Gb/s SAS and PCIe 3.0, they provide enterprise-class storage performance, reliability, security and efficiency needed to address your evolving data storage needs. This controller has eight internal SAS lanes, allowing connection to SAS or SATA drives, supports Mixed Mode operations of RAID and HBA simultaneously, and offers encryption for data-at-rest on any drive. They are also ideal for maximizing performance while supporting advanced RAID levels with 2 GB Flash-Backed Write Cache (FBWC).
This type-a modular controller occupies a dedicated storage slot without occupying a PCIe expansion slot. The Gen10 controllers are supported by the HPE Smart Storage Battery. The HPE Smart Storage Battery supports multiple devices and is sold separately here.
Special features:-
Increased Performance for Faster Data Insights
:: The HPE Smart Array P408i-a SR Gen10 Controller is an enterprise-class RAID controller that increases performance in messaging, database, or general server applications and delivers 12 Gb/s SAS connectivity on HPE ProLiant Gen10 Servers when connected to 12 Gb/s internal storage devices.
:: Increases performance with 2 GB Flash-Backed Write Cache and reduces latency in write-intensive applications that require heavy logging such as databases.
:: Enhances performance in storage environments where data is read repeatedly from a large number of SSDs by using HPE SSD Smart Path to create a faster I/O path between the controller and SSD.
:: Accelerate access to data in HDD environments by caching hot data onto SSDs with HPE Smart Array SR SmartCache (optional license).
Built-in Reliability and Security
:: The HPE Smart Array P408i-a SR Gen10 Controller protects data-at-rest on any drive attached to the controller with HPE Smart Array SR Secure Encryption (optional license).
:: Comply with regulations for sensitive data, such as HIPAA and Sarbanes-Oxley with HPE Smart Array SR Secure Encryption—FIPS 140-2 Implementation Under Test with expected FIPS 140-2 Level 1 validation complete in 2018.
:: Preserve data integrity with HPE SmartSSD Wear Gauge, which alerts you to potential drive issues before a drive fails.
:: Long-term data retention with 2 GB Flash-Backed Write Cache for improved data reliability.
Improved Efficiency and Storage Management
:: The HPE Smart Array P408i-a SR Gen10 Controller has increased flexibility with Mixed Mode which operates in RAID and HBA simultaneously and eliminates the expense of having to purchase another controller.
:: Rapidly configure simple RAID volumes on servers with the UEFI storage configuration tool, which also facilitates scripting support to configure an array via iLO through RESTful interface.
:: Quickly set up, configure, and manage drives attached to the controller with HPE Smart Storage Administrator (SSA), an intuitive interface used to create RAID volumes, manage advanced controller features, and deploy Smart Array solutions.
