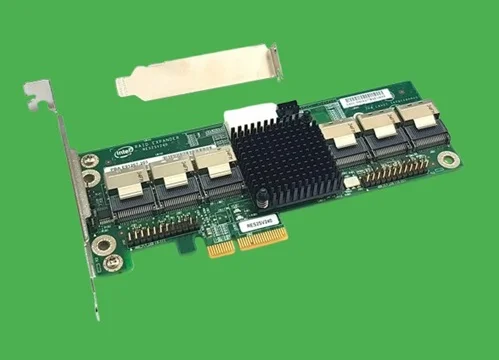

Intel PCIe x8 6G SAS / SATA 24-Port RAID Expander Card (RES2SV240) Part #: E91267-203
- Brand: Intel
- Part #: E91267-203
- Specs:-
- ::Type: Low-Profile MD2 Expander Card
- ::Model:Intel RES2SV240
- ::Function: SAS/SATA RAID Expander
- ::Power Options: Can be powered via the PCIe x4 slot or an optional 4-pin Molex power connector, offering flexible mounting options (even outside a PCIe slot, such as on a chassis wall).
- ::Ports/Connectivity: 24 Ports (Typically via six SFF-8087 internal connectors)
- ::Interface Speed: 6 Gb/s (SAS and SATA)
- ::Form Factor: PCI Express (PCIe) Card (usually x8)-(designed for space-constrained chassis like 1U and 2U rack servers).
- ::Use case: Connects to a single port on a host RAID controller (like a Dell PERC card) and provides connections for many more drives (up to 24), effectively multiplying the host controller's capacity.
- Compatibility:
- ::Works with both SAS and SATA drives (HDD and SSD).
- Condition: New
- Warranty: 1 (one) year Tekmart Africa warranty
-
INT271225JWCN2025
**Eligible for immediate collection / shipping upon order confirmation*
The SKU:E91267-203 is apart number for an assembly or OEM (Original Equipment Manufacturer) code for the Intel RAID Expander Card RES2SV240.
A SAS Expander Card is used in server environments to significantly increase the number of hard drives you can connect to a single RAID Controller.
- ::A typical RAID controller might have 4 or 8 physical ports.
- ::By connecting one of those ports to the expander card, the E91267-203 can fan out that single connection to handle up to 24 additional drives.
-
This is essential for high-density storage configurations, often found in large server chassis or external disk enclosures.
While it's an Intel part, these components are frequently used within Dell PowerEdge servers and PowerVault storage systems to increase the number of accessible hard drives.
This model number RES2SV240 for the Intel RAID Expander Card follows a specific naming convention that helps identify its function and key features.
| Segment |
Meaning |
Details |
| RES |
RAID Expander Solutions |
This prefix clearly identifies the product as a device used to expand the number of drives connected to a RAID controller. |
| 2 |
Generation/SAS Version |
This indicates the product supports the SAS-2 standard (Serial Attached SCSI 2). SAS-2 is the 6 Gb/s generation of the interface. |
| SV |
Form Factor/Type |
This segment is often used by Intel to designate the specific form factor or product line. For these particular cards, it indicates it is a Standard-Version low-profile MD2 card that uses a standard expander chip (specifically, the LSI SAS2x24 chip). |
| 240 |
Port Count |
This is the most straightforward part. It signifies that the card has 24 total internal SAS/SATA ports (drives) and ends with a placeholder zero (0). |
