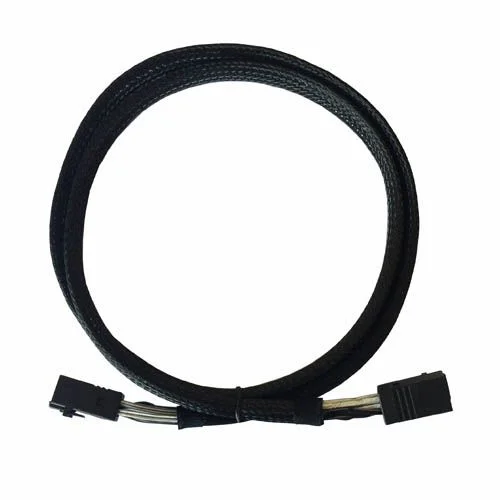

12G Int Mini SAS HD(SFF-8643) to int. Mini SAS HD Cable

• Brand: Wiitek
• Part #: HPC302300501
• Specs:
•   ::  Length = 2M
•   ::  Wire Size (AWG) = 30
•   ::  Connector A = Mini SAS HD (SFF-8643)
•   ::  Connector B = Mini SAS HD (SFF-8643)
•   ::  Impedance = 100 Ohms
•   ::  Data Rate = 6.00 Gb/s (Future SAS 3.0 12.00 Gb/s)
•   ::  Applications = Fibre Channel, Infiniband, and SAS 2.1 (Serial Attached SCSI) compliant
•   ::  RoHS Compliant
• Condition: New
• Warranty: 1 (one) year Tekmart warranty
•

Key points to note on these HPC302300501 SFF-8643 to SFF-8643 Cables:-

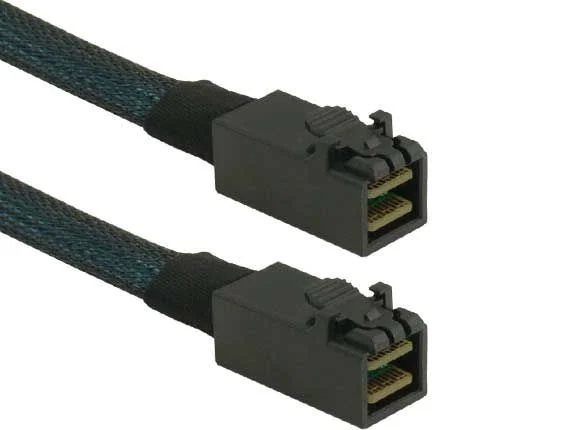

Internal Mini-SAS HD to Mini-SAS HD cables maximize speed and port density for adapter cards, servers, and switches. This Mini SAS HD cable is guaranteed to perform at data-rates of 6.0 Gbps per lane and features a SFF-8643 pull to release connector on each end.

The pull tab connector is compatible with all mini-SAS HD (SFF-8643) ports.

It is specifically designed to connect a 12 Gbps host bus adapter with SFF-8643 to a SAS backplane or expander with SFF-8643; SAS 2.1 and SAS 3 performance compliant

High Density 36 Pin SFF 8643 x 4 connector allows higher port density with internal hosts and storage devices; Connect up to 1024 SAS and SATA devices with 4 internal and 4 external 12Gb/s SAS and SATA ports with SAS 3 equipped controllers and chassis storage
